Wiper Rubber LH: Replacement

WARNING: This page is about a different car, the 2003 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FR WIPER BLADE LH
    1. Remove the front wiper blade LH from the front wiper arm LH.
      NOTE: Do not fold down the front wiper arm with the front wiper blade being removed from it.
  2. REMOVE WIPER RUBBER LH
    1. Remove the front wiper rubber LH from the front wiper blade.
    2. Remove the 2 wiper rubber backing plates from the wiper rubber LH.
  3. INSTALL WIPER RUBBER LH
    1. Install the 2 wiper rubber backing plates to the wiper rubber LH.

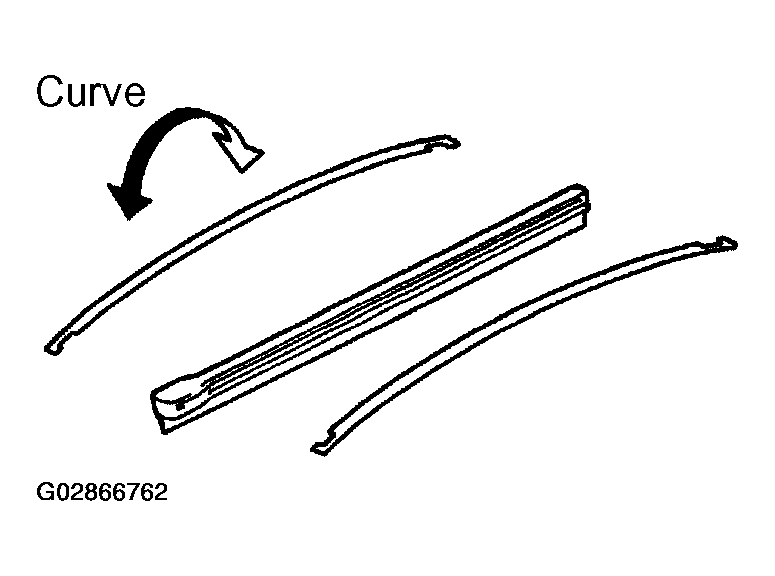

      Fig 1: Installing Wiper Rubber Backing Plates To Wiper Rubber LH
      G02866762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Be careful to observe and keep direction of curvature for correct replacement.
    2. Install the wiper rubber LH so that the head part (Larger side) of the wiper rubber faces the arm axle side.

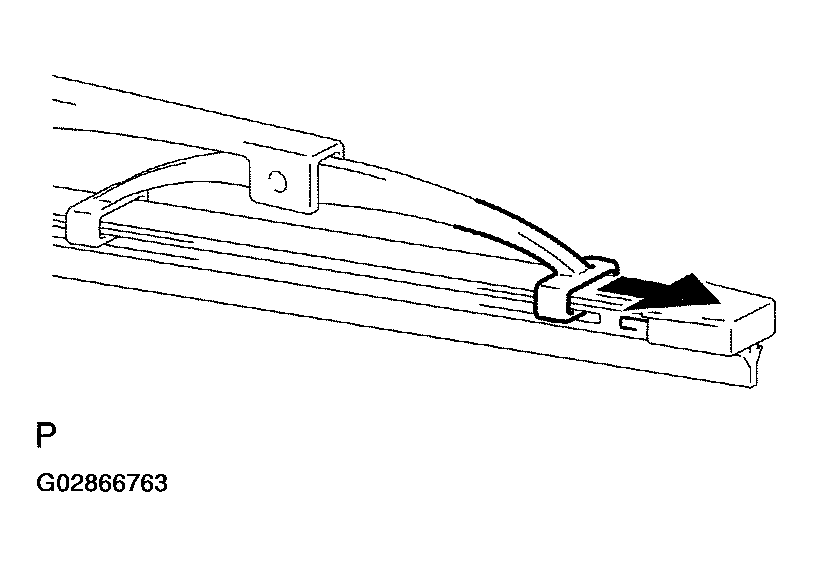

      Fig 2: Installing Wiper Rubber LH
      G02866763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Push the front wiper blade into the grooves of the wiper rubber to engage them completely.
