Windshield Wiper Motor ASSY: Replacement

WARNING: This page is about a different car, the 2003 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE WINDSHIELD WIPER ARM COVER
REMOVE FR WIPER ARM RH
1. Operate the wiper and stop the windshield wiper motor assy at the automatic stop position.
2. Remove a nut and FR wiper arm RH.
REMOVE FR WIPER ARM LH
1. Remove a nut and FR wiper arm LH.
REMOVE HOOD TO COWL TOP SEAL

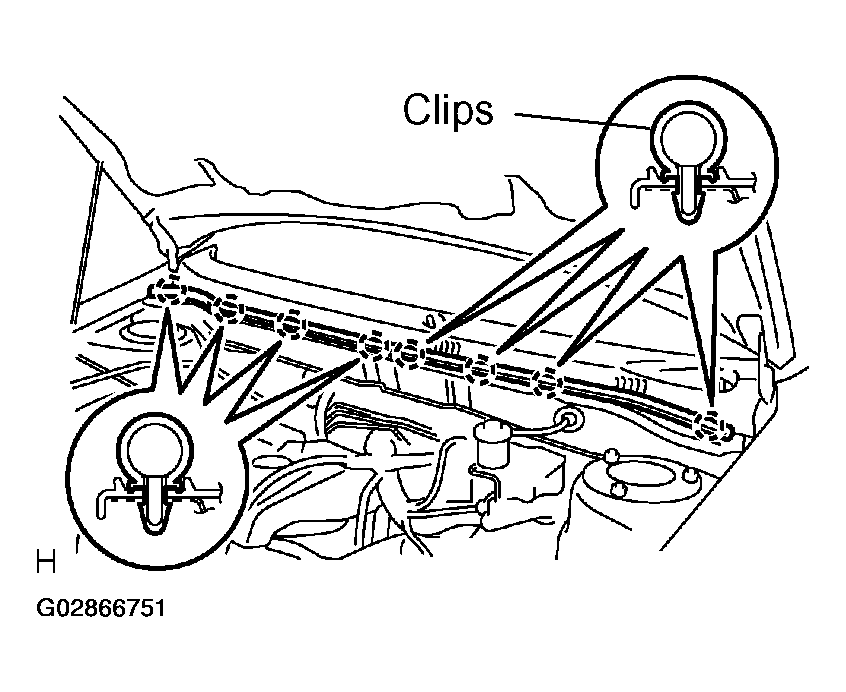

1. Using a clip remover, disengage the meshing of 8 clips and remove the hood to cowl top seal.

  Fig 1: Removing Cowl Top Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COWL TOP VENTILATOR LOUVER RH

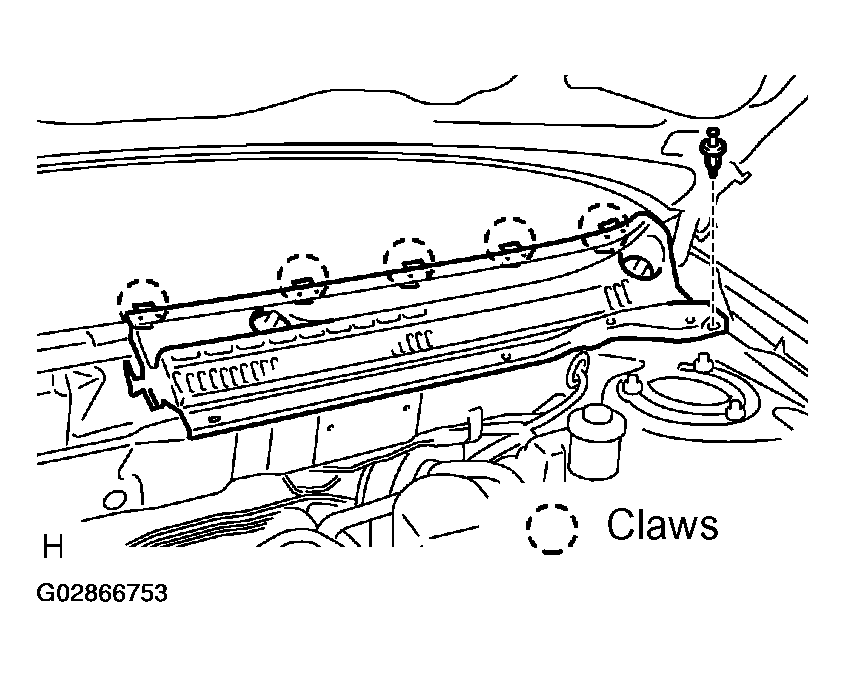

1. Remove a clip and release the 5 claws, and remove the cowl top ventilator louver RH.

  Fig 2: Removing Cowl Top Ventilator Louver RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COWL TOP VENTILATOR LOUVER LH

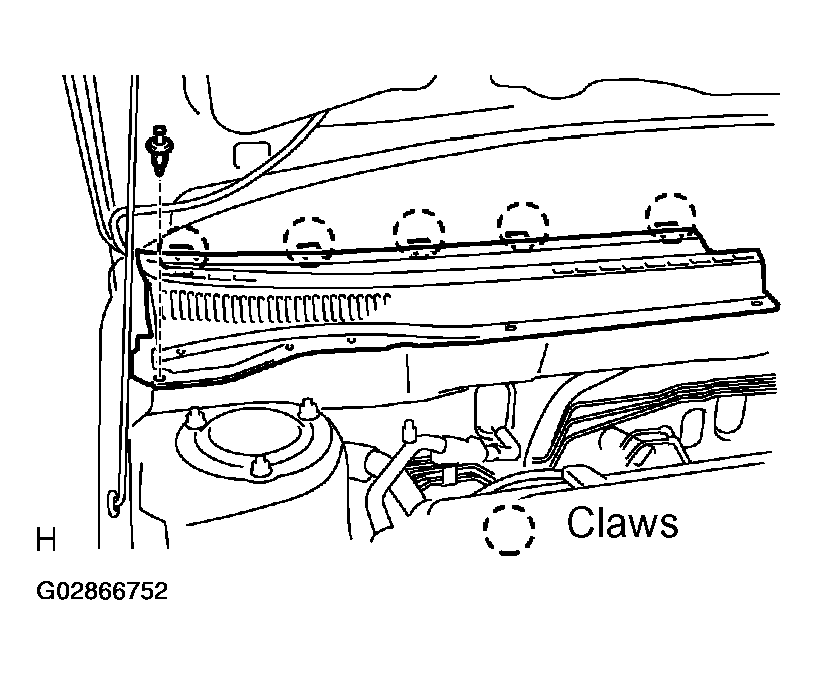

1. Remove a clip and release the 5 claws, and remove the cowl top ventilator louver LH.

  Fig 3: Removing Cowl Top Ventilator Louver LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WINDSHIELD WIPER LINK ASSY

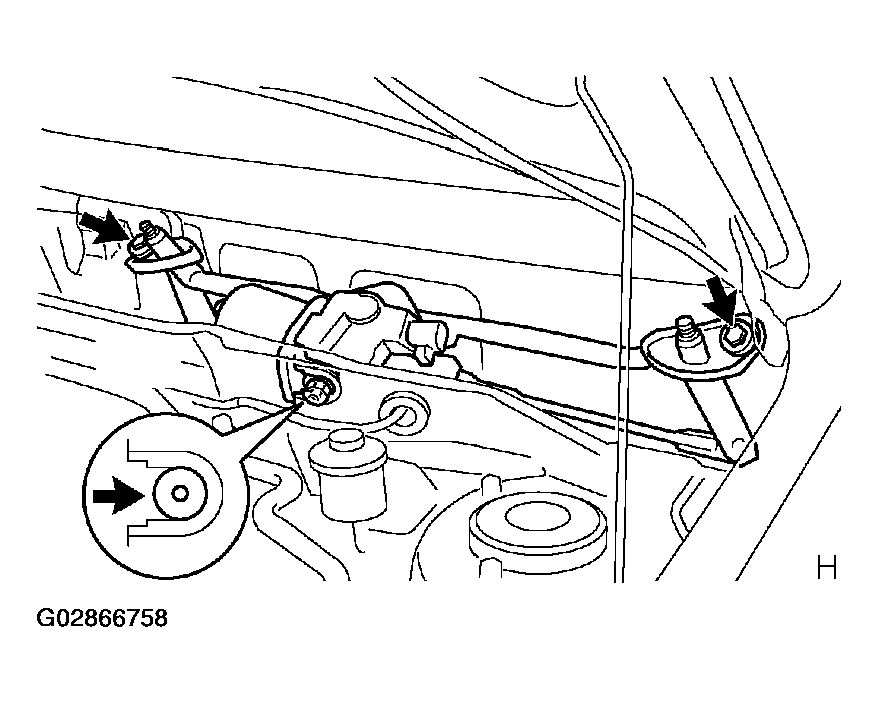

1. Disconnect the connector.
2. Remove the 2 bolts.
3. Slide the wiper link assy to vehicle's passengers side. Disengage the meshing of the rubber pin and remove the wiper link assy.

  Fig 4: Removing Wiper Link Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WINDSHIELD WIPER MOTOR ASSY

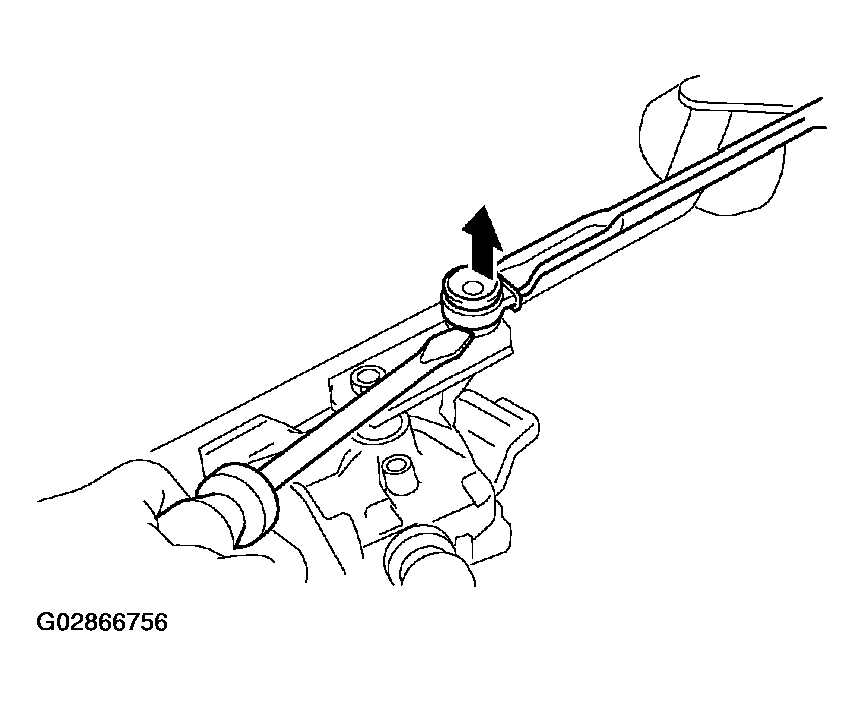

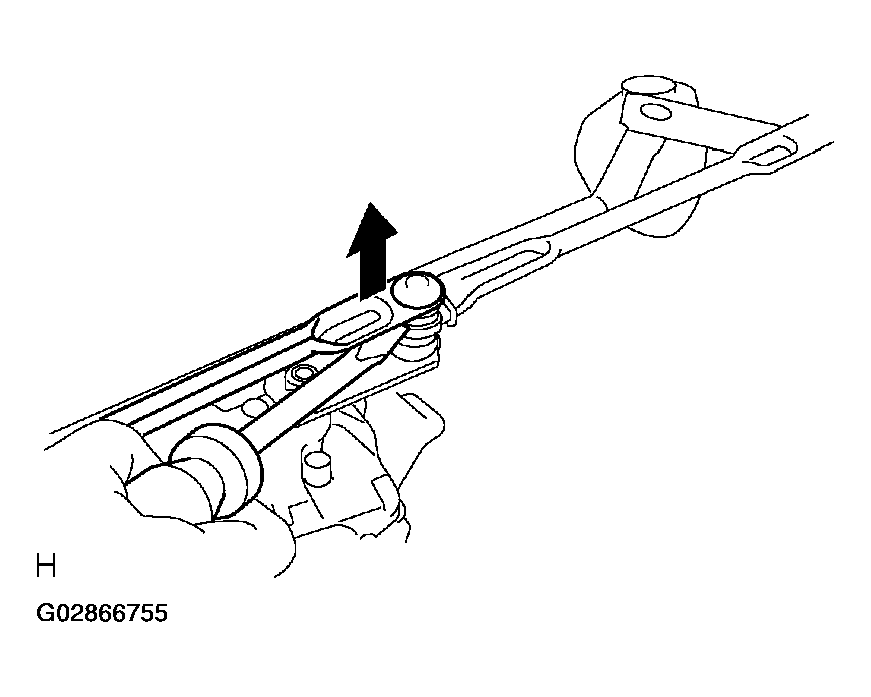

1. Using a screwdriver and disengage the meshing of 2 rods at the crank arm pivot of the windshield wiper motor assy.
  NOTE: Tape the screwdriver tip before use.

  Fig 5: Disengaging Rod At Crank Arm Pivot (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 6: Disengaging Rod At Crank Arm Pivot (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

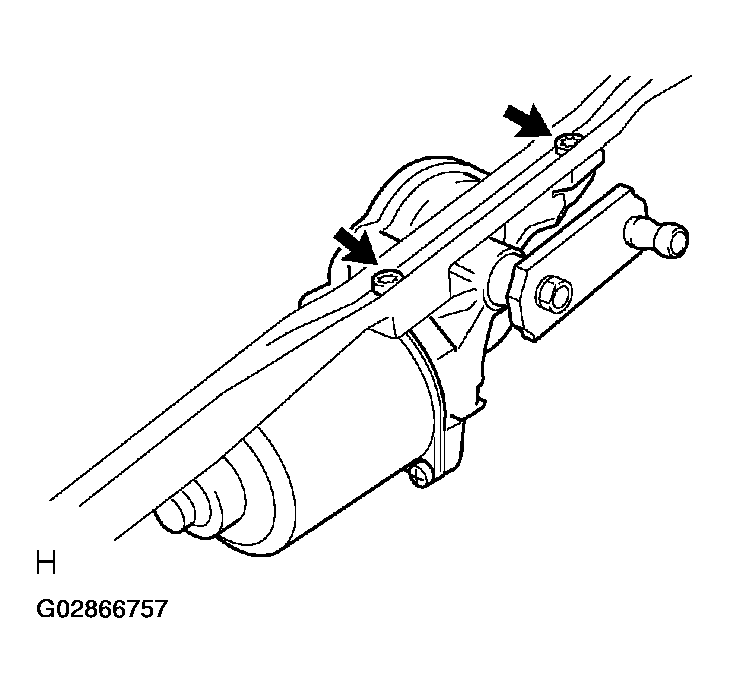

2. Remove 2 Torx bolts and windshield wiper motor assy.

  Fig 7: Removing Windshield Wiper Motor Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WINDSHIELD WIPER MOTOR ASSY
1. Apply MP grease to the clank arm pivot of the windshield wiper motor assy.
2. Using 2 Torx bolts, install the windshield wiper motor assy to the windshield wiper link assy.
  Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
INSTALL WINDSHIELD WIPER LINK ASSY
1. Install the meshing of the rubber pin.
2. Install the windshield wiper link assy. with the 2 bolts.

  Fig 8: Installing Windshield Wiper Link Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
3. Connect the connector.
INSTALL FR WIPER ARM LH
1. Operate the wiper, and stop the windshield wiper motor assy at the automatic stop position.
2. Scrape off the serration part of the wiper arm with a round file or equivalent.
3. Clean the wiper pivot serration with the wire brush.

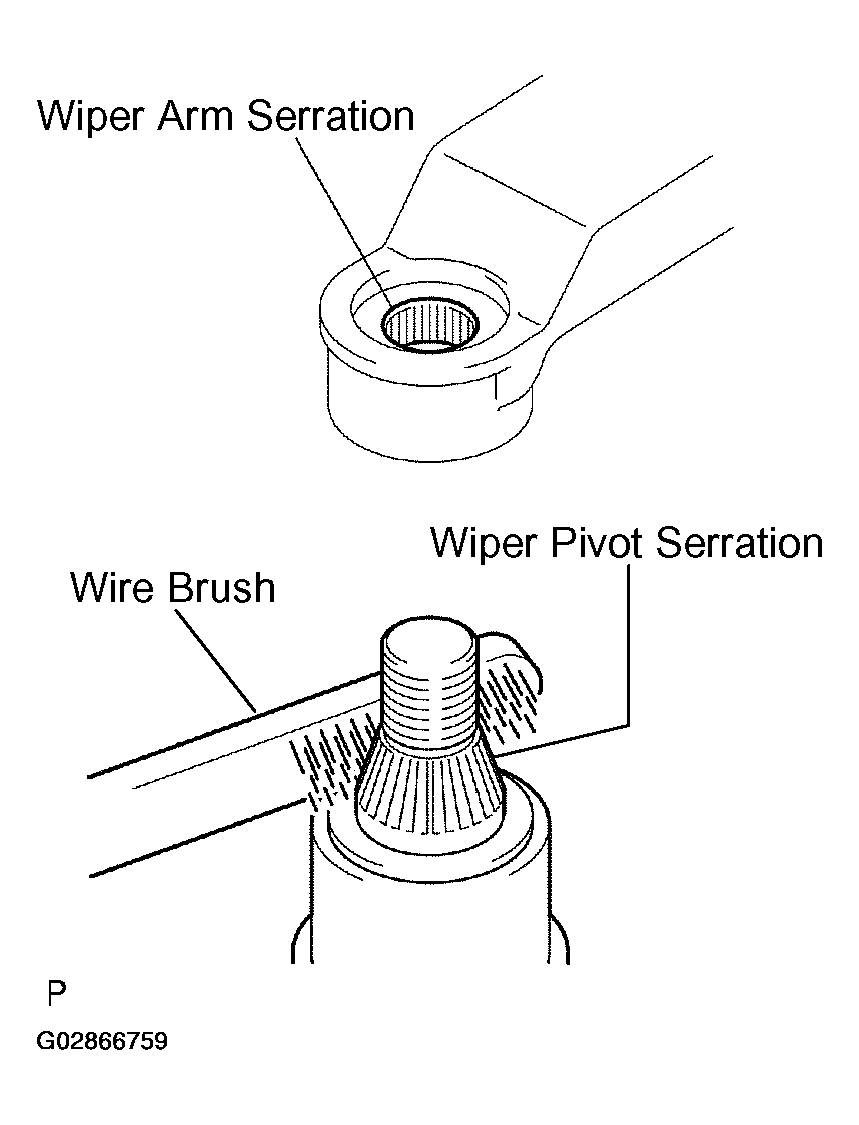

  Fig 9: Cleaning Wiper Pivot Serration With Wire Brush
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

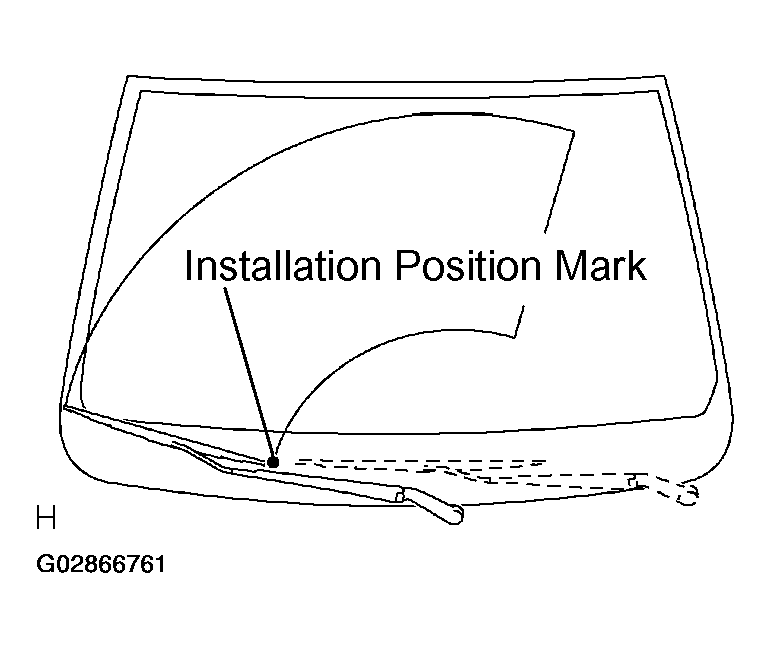

4. Install the front wiper arm LH with a nut to the position shown in the illustration.

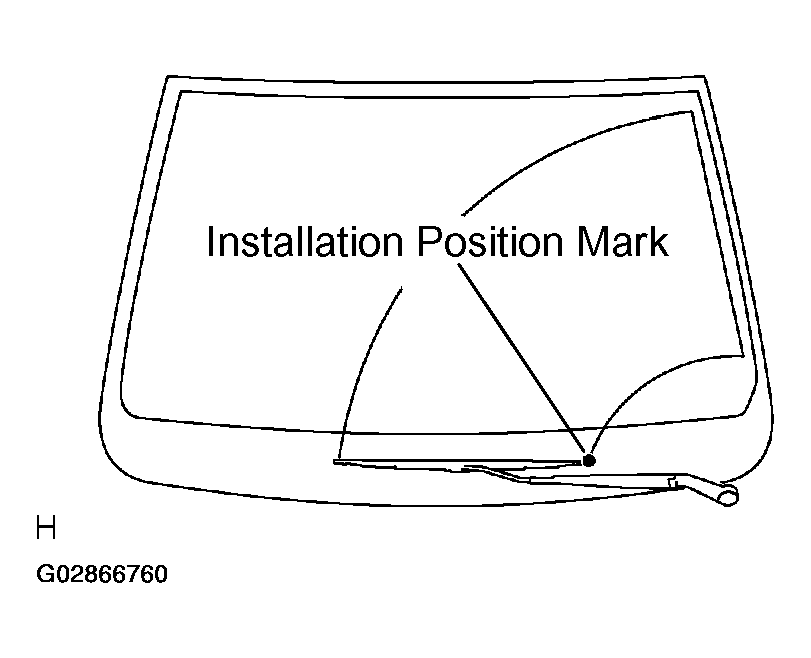

  Fig 10: Installing Front Wiper Arm LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20.5 N.m (209 kgf.cm, 15 ft.lbf)

  NOTE: Hold down the arm hinge with hand to fasten a nut.
INSTALL FR WIPER ARM RH
1. Scrape off the serration part of the wiper arm with a round file or equivalent.
2. Clean the wiper pivot serration with the wire brush.
3. Install the front wiper arm RH with a nut at the position shown in the illustration.

  Fig 11: Installing Front Wiper Arm RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20.5 N.m (209 kgf.cm, 15 ft.lbf)

  NOTE: Hold down the arm hinge with hand to fasten a nut.
4. Operate the wiper while running the water or the washer fluid over the window, and check the wiping condition and that the rear wiper does not hit against the vehicle body.
