On-Vehicle Inspection

WARNING: This page is about a different car, the 2003 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

WASHER MOTOR

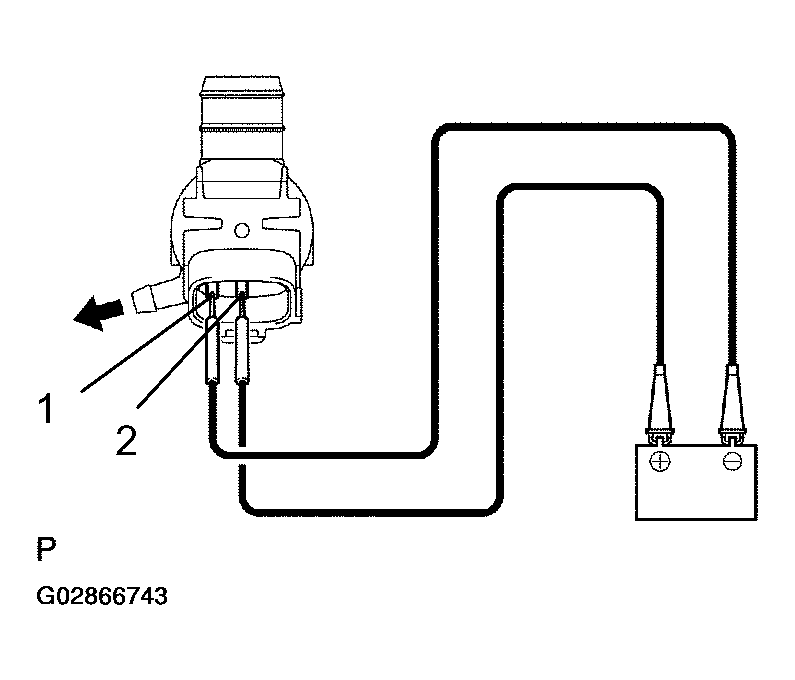

Fig 1: Inspecting Washer Motor Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Operation Check
  1. Pour the water into the washer jar with the windshield washer motor and pump assy installed to the washer jar assy.
  2. Connect the battery (+) to terminal 2 of the windshield washer motor and pump assy, the battery (-) to terminal 1 of the windshield washer motor and pump assy. Check that the water comes out from the washer jar.
