Propeller Shaft
WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

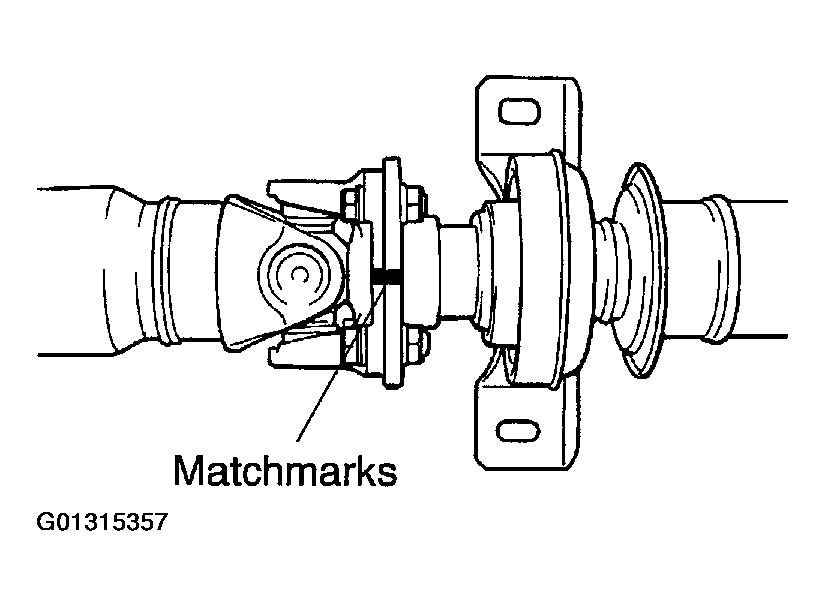

- Place matchmarks on the universal joint flange and propeller shaft flange.
- Remove the 4 bolts, washers and nuts.
- Separate the intermediate shaft and propeller shaft.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
