Rear Wiper And Washer: Components

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

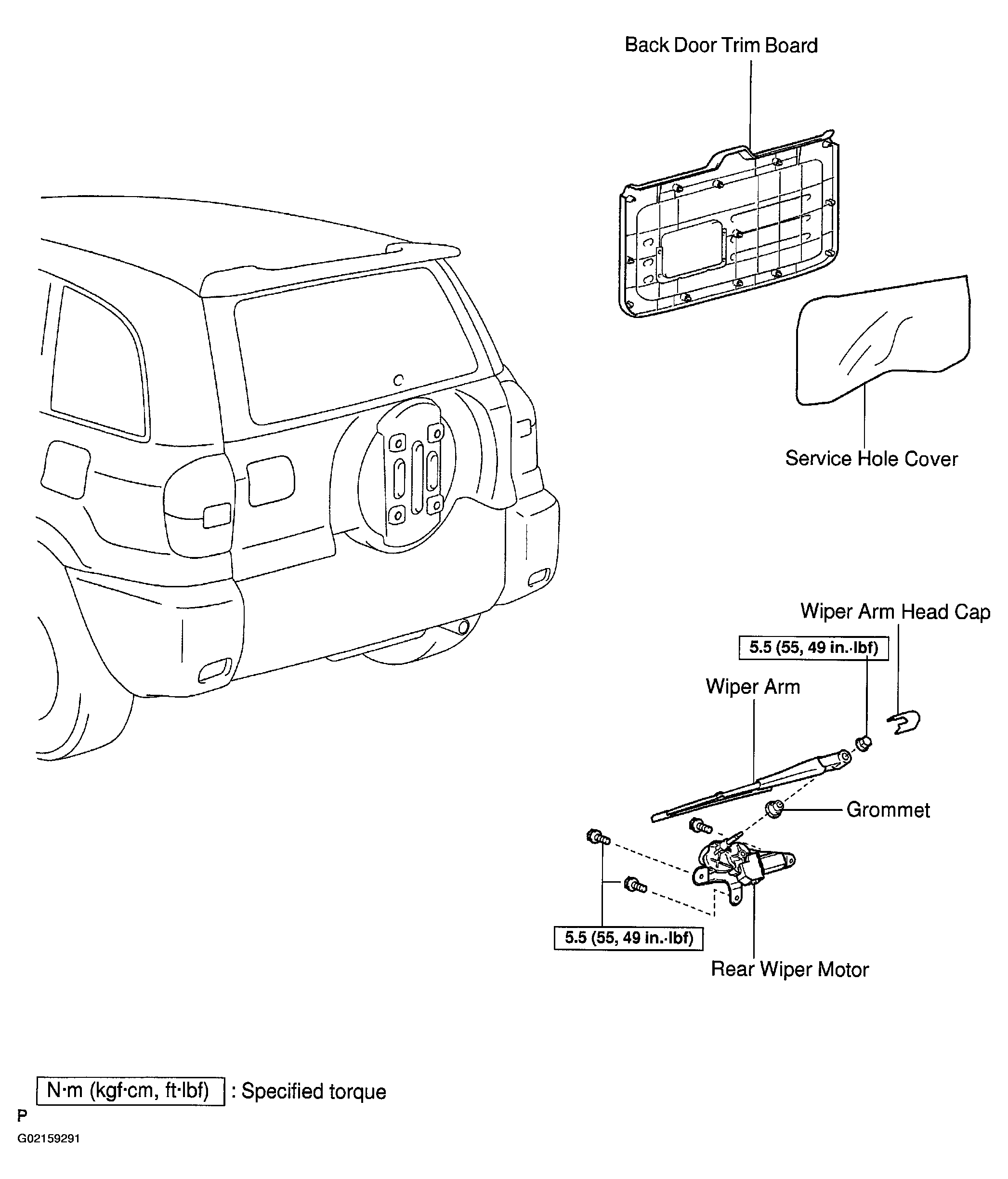

Fig 1: Displaying Rear Wiper & Washer Components
G02159291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
