Cooling System (Mechanical): Radiator: Components

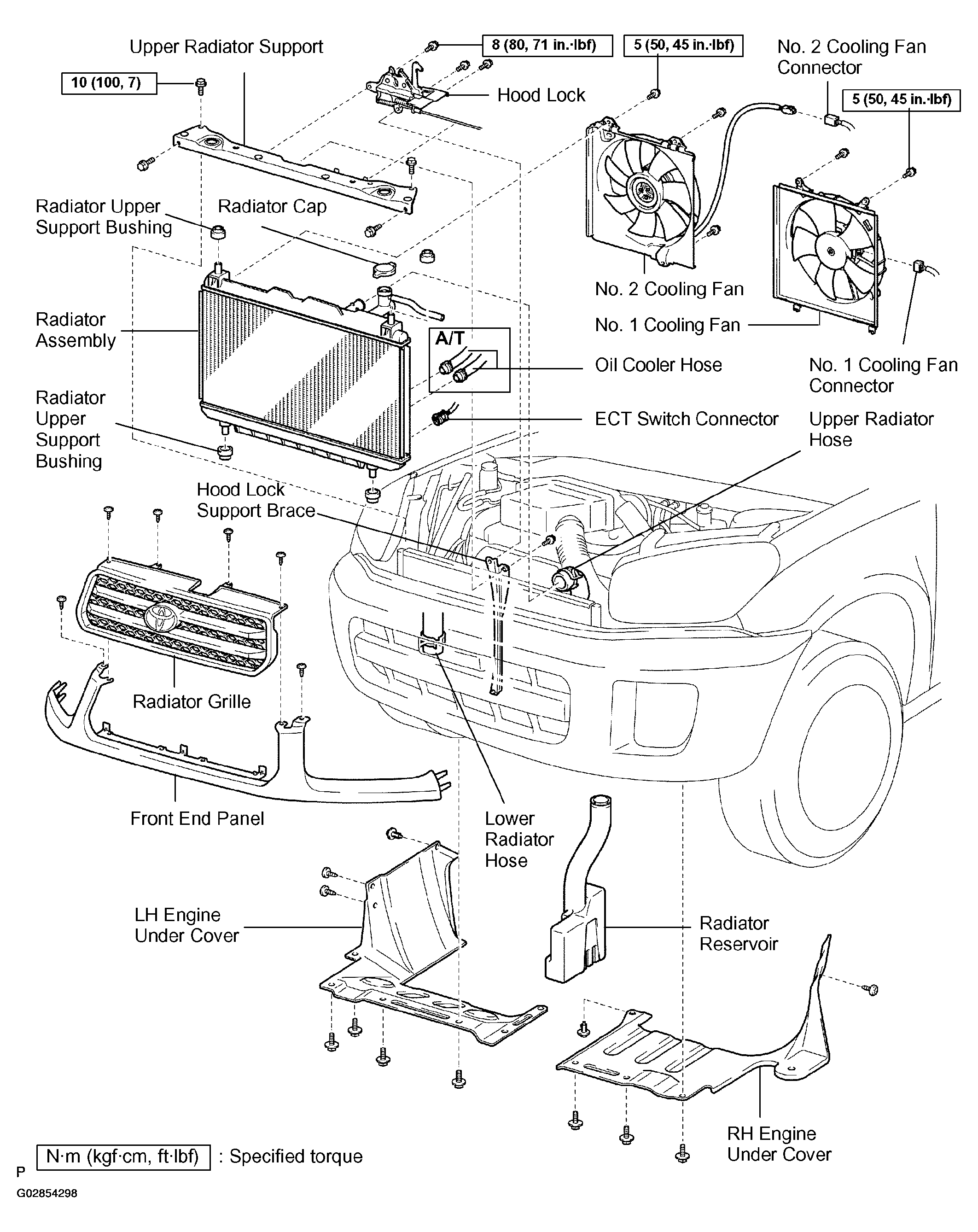

Fig 1: Exploded View Of Cooling System Components
G02854298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

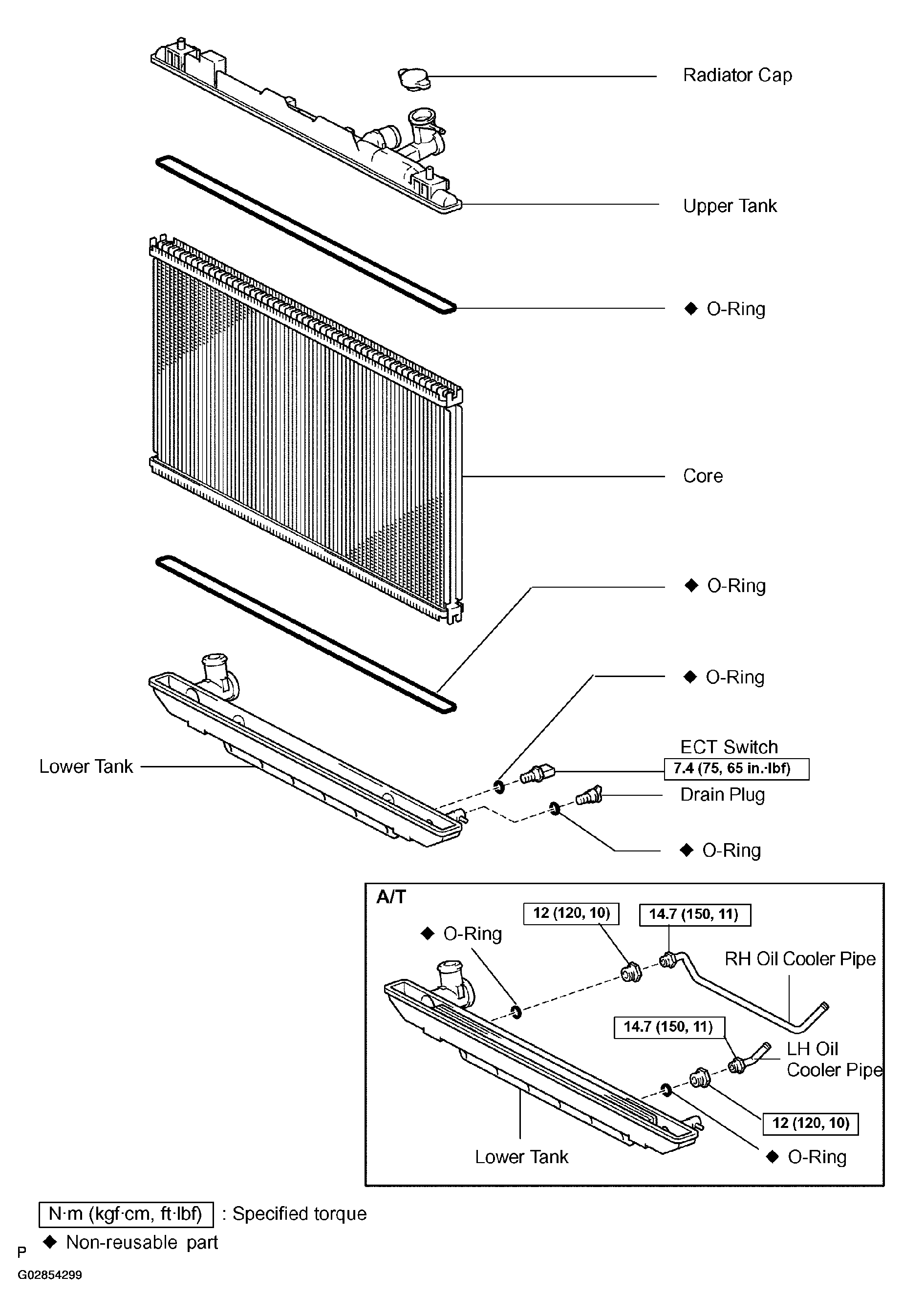

Fig 2: Exploded View Of Radiator
G02854299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
