Front Bumper: Components

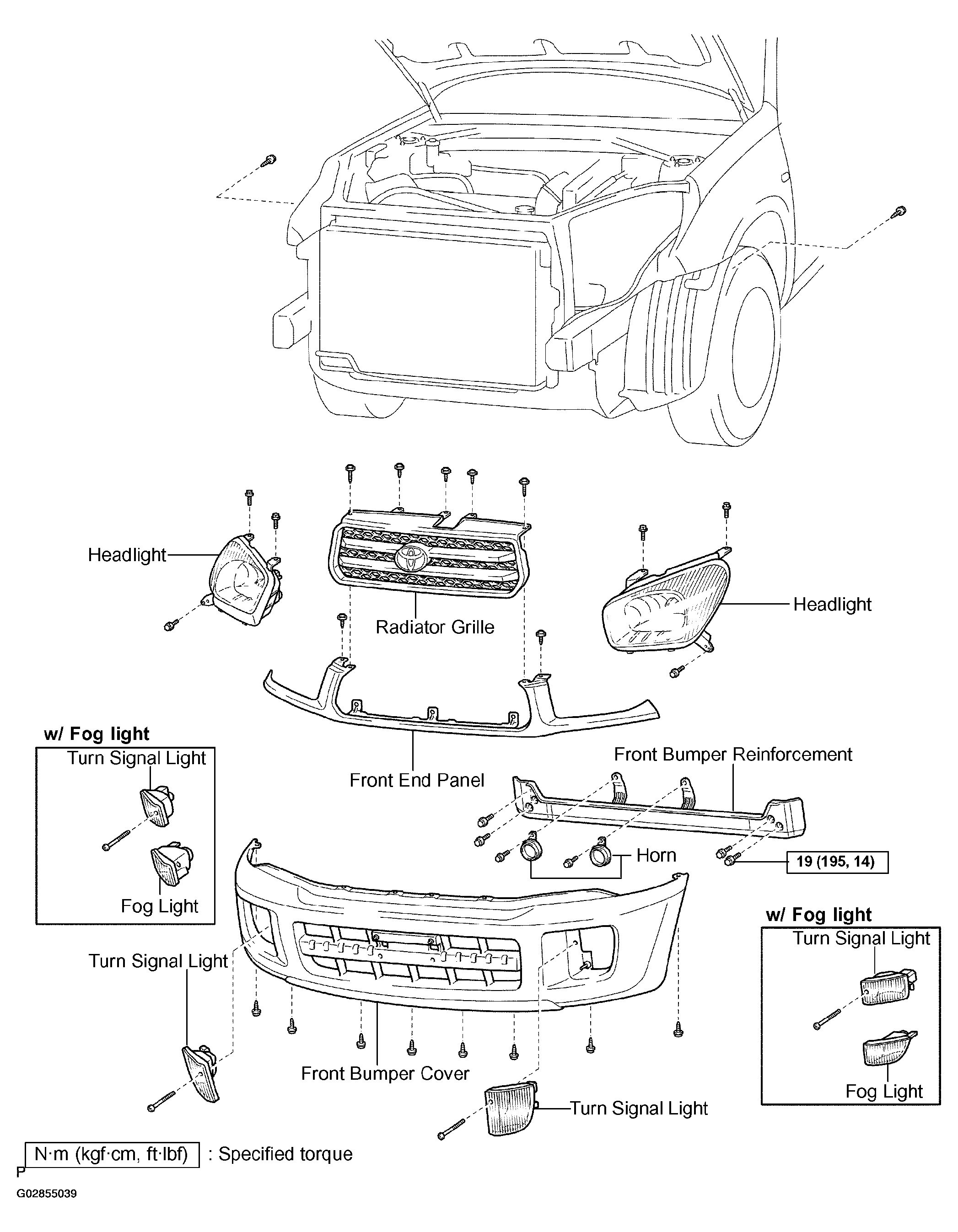

Fig 1: Exploded View Of Front Bumper Components

G02855039

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
