Home >> Toyota >> 2003 >> RAV4 Base, AWD, Automatic >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Body Outside Moulding >> Components

Body Outside Moulding: Components

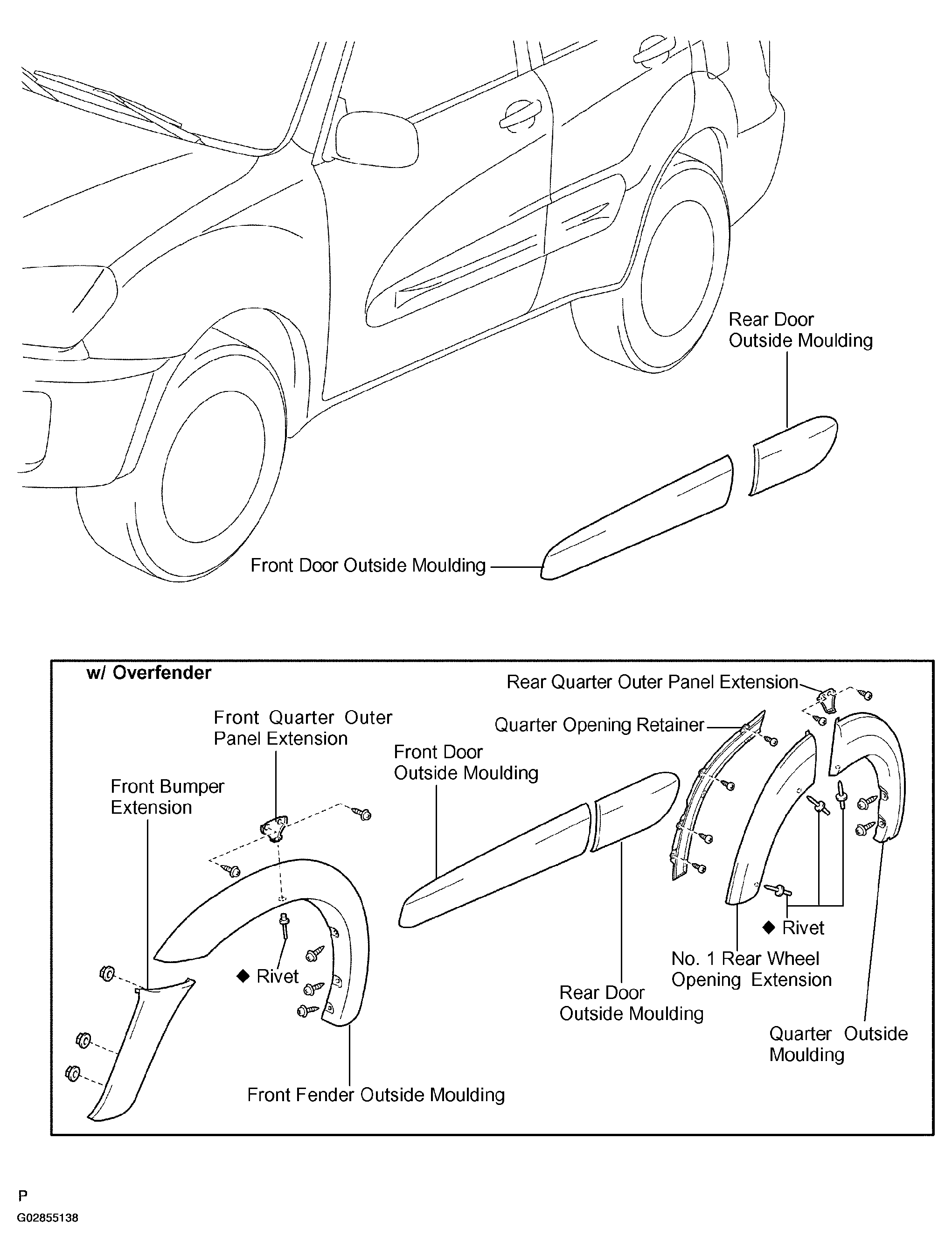

Fig 1: Exploded View Of Body Outside Moulding Components

G02855138

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
