Back Door: Reassembly

INSTALL REAR SPOILER
Install the rear spoiler with the 2 bolts and 2 nuts.
INSTALL STOP LIGHT
1. Connect the connector.
2. install the stop light with the 2 screws.
INSTALL UPPER SIDE GARNISHES

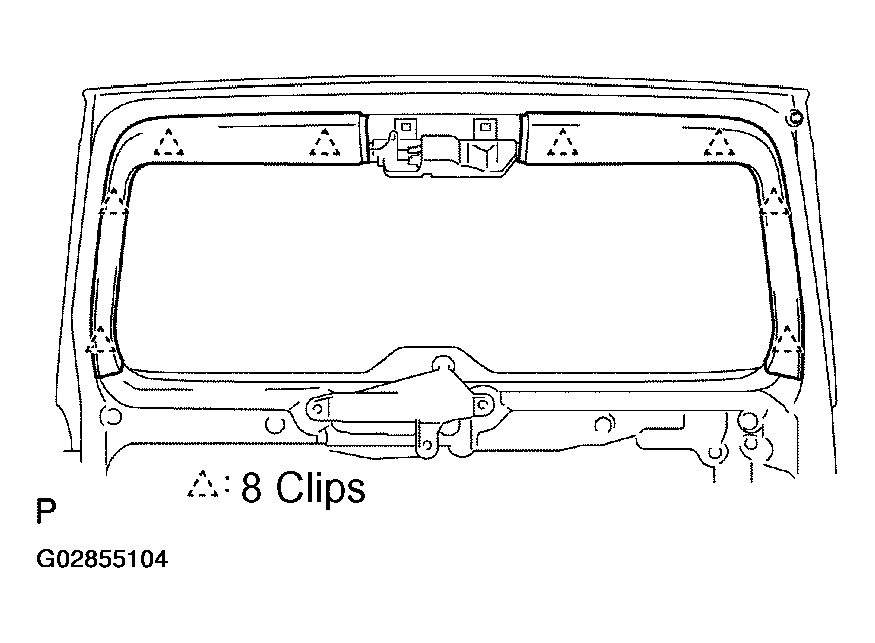

Fig 1: Installing Upper Side Garnishes
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STOP LIGHT COVER

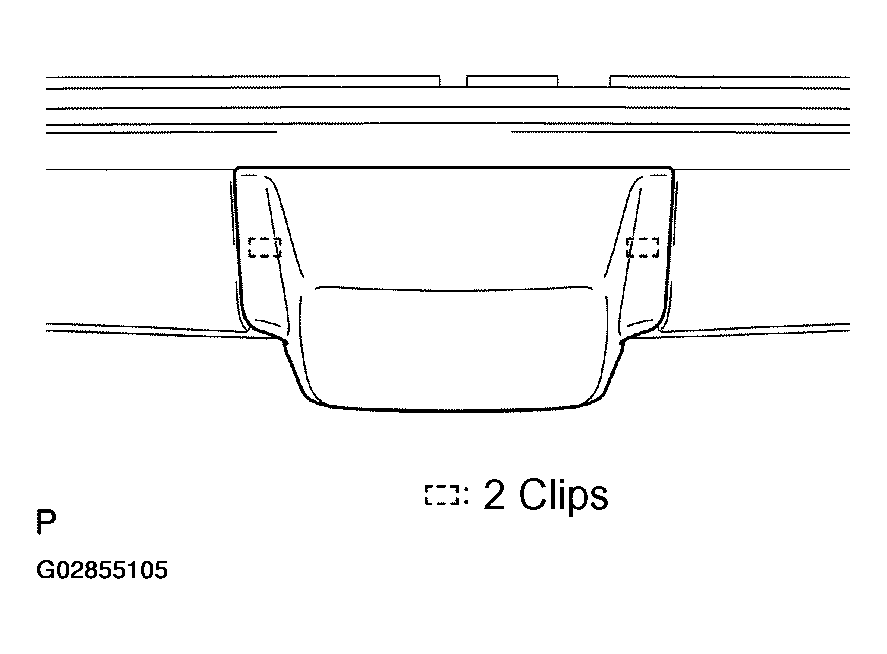

Fig 2: Installing Stop Light Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BACK DOOR OUTSIDE GARNISH
1. Connect the licence plate light connector.
2. Install the door outside garnish to the back door.
3. Install the 3 clips.

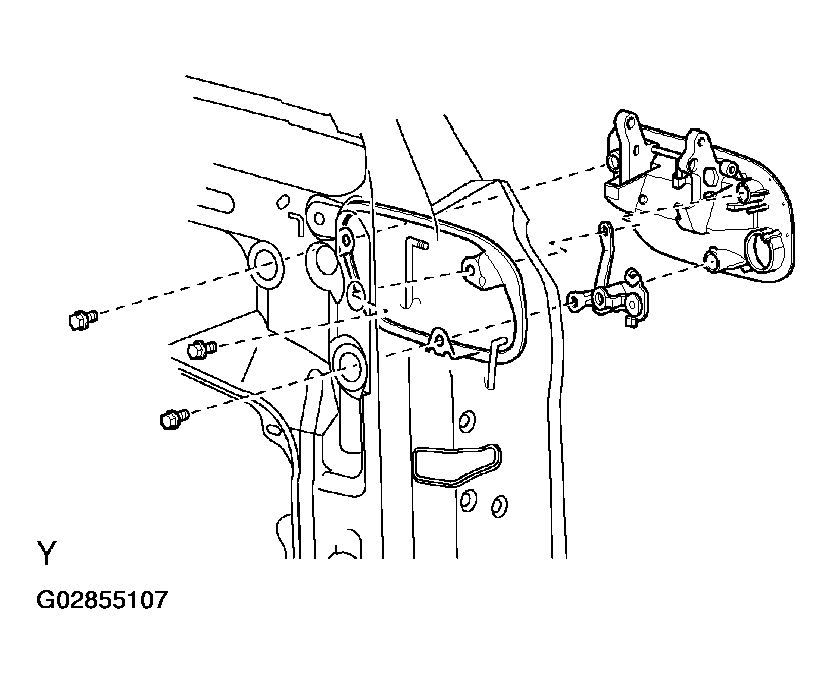

INSTALL BACK DOOR OUTSIDE HANDLE
1. Install the door lock cylinder to the back door outside handle.
2. Install the back door outside handle with the 3 bolts.
3. Install the 3 plug hole covers.
INSTALL DOOR LOCK ASSEMBLY
NOTE: Apply MP grease to the sliding surface of the door lock control.

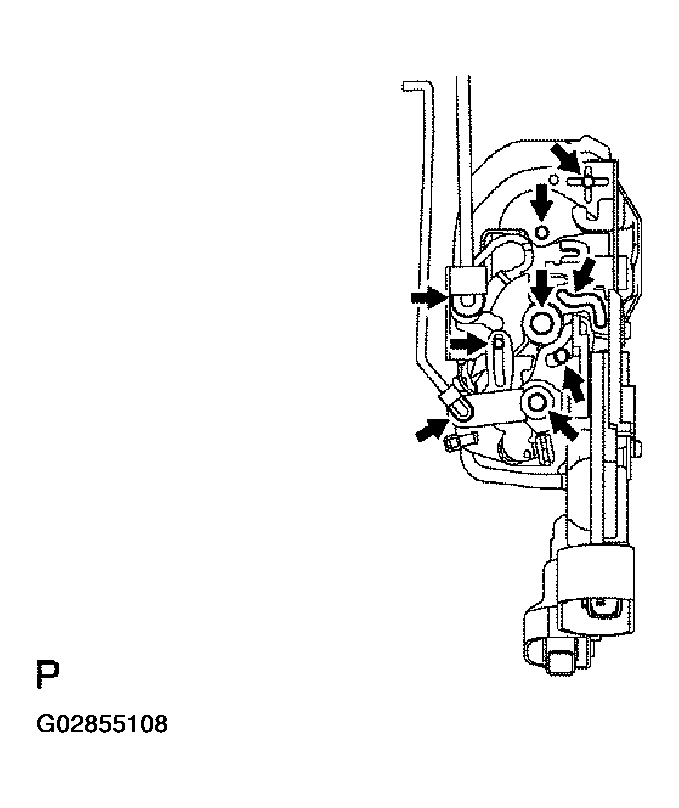

Fig 5: Applying MP Grease To Sliding Surface Of Door Lock Control
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the 2 links.
2. Install the door lock assembly through the service hole.
3. Connect the 2 links.
4. Connect the connector.
5. Install the door lock assembly with the 3 screws and bolt.
1. Torque: 5.0 N.m (50 kgf.cm, 44 in..lbf)
NOTE: Apply adhesive to the 3 screws.

Part No. 08833-00070, THREE BOND 1324 or equivalent
INSTALL WIPER MOTOR
INSTALL REAR WIPER ARM
INSTALL BACK SPARE TIRE BRACKET
Install the back spare tire bracket with the 4 bolts.
1. Torque: 28 N.m (285 kgf.cm, 21 ft.lbf)
INSTALL SERVICE HOLE COVER
NOTE: Pull out the links through the service hole cover.

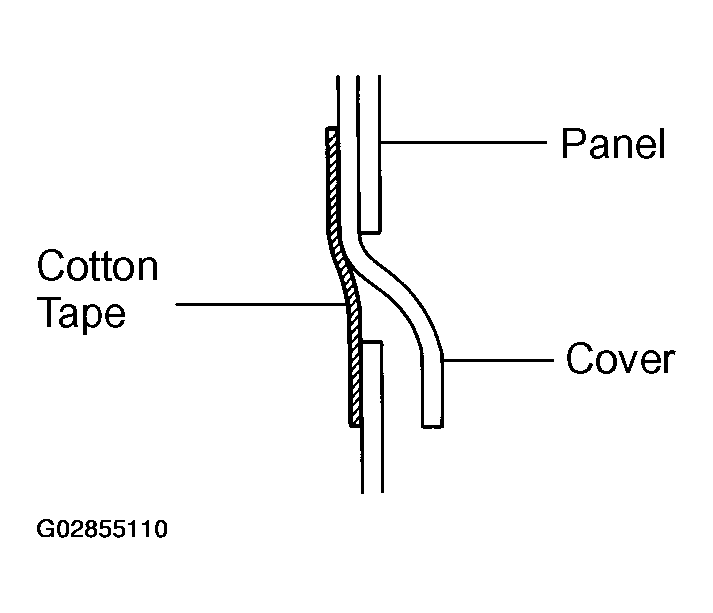

Fig 7: Installing Service Hole Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BACK DOOR TRIM BOARD

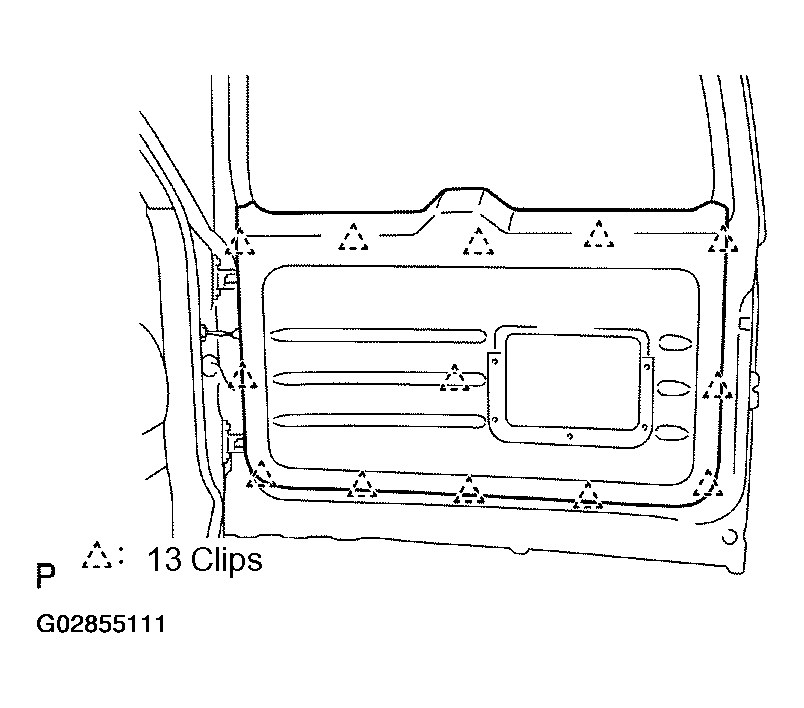

Fig 8: Installing Back Door Trim Board
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
