Back Door: Disassembly

REMOVE BACK DOOR TRIM BOARD

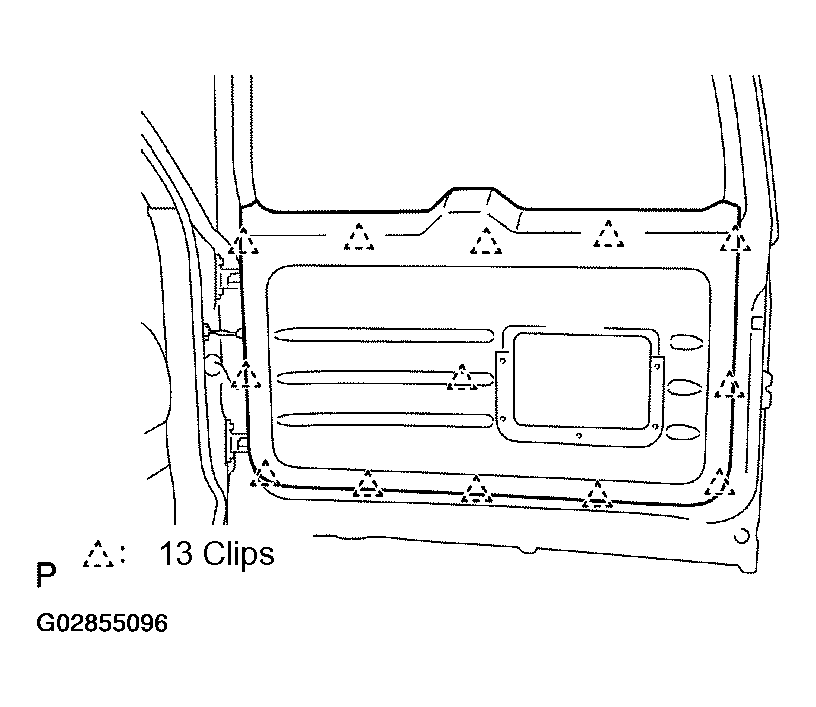

Fig 1: Removing Back Door Trim Board
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, remove the back door trim board.

NOTE: Tape the screwdriver tip before use.
REMOVE SERVICE HOLE COVER
REMOVE BACK SPARE TIRE BRACKET
Remove the 4 bolts and back spare tire bracket.
REMOVE REAR WIPER ARM
REMOVE REAR WIPER MOTOR
1. Remove the grommet.
2. Disconnect the connector, then unfasten the 3 bolts.
3. Remove the rear wiper motor.
REMOVE DOOR LOCK

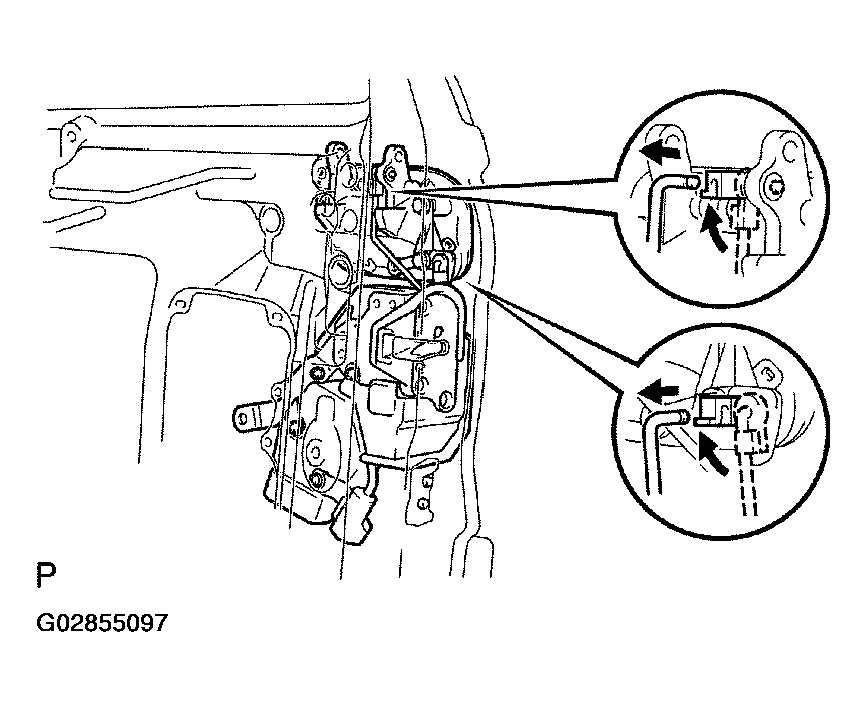

Fig 2: Removing Door Lock
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 3 screws and bolt.
2. Disconnect the connector.
3. Disconnect the 2 links then remove the door lock.
REMOVE BACK DOOR OUTSIDE HANDLE
1. Remove the 3 plug hole covers.
2. Remove the 3 bolts and back door outside handle.

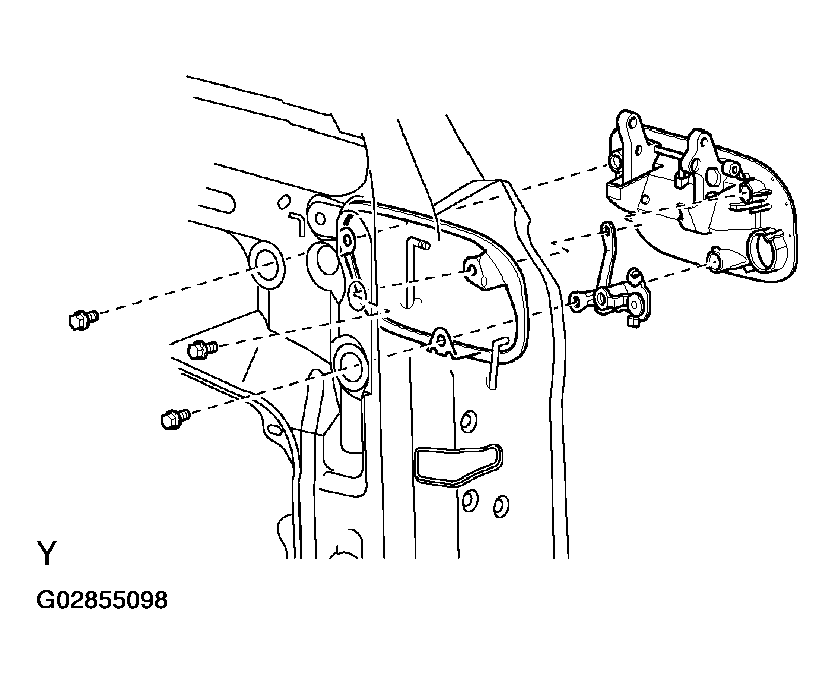

  Fig 3: Removing Back Door Outside Handle & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BACK DOOR OUTSIDE GARNISH

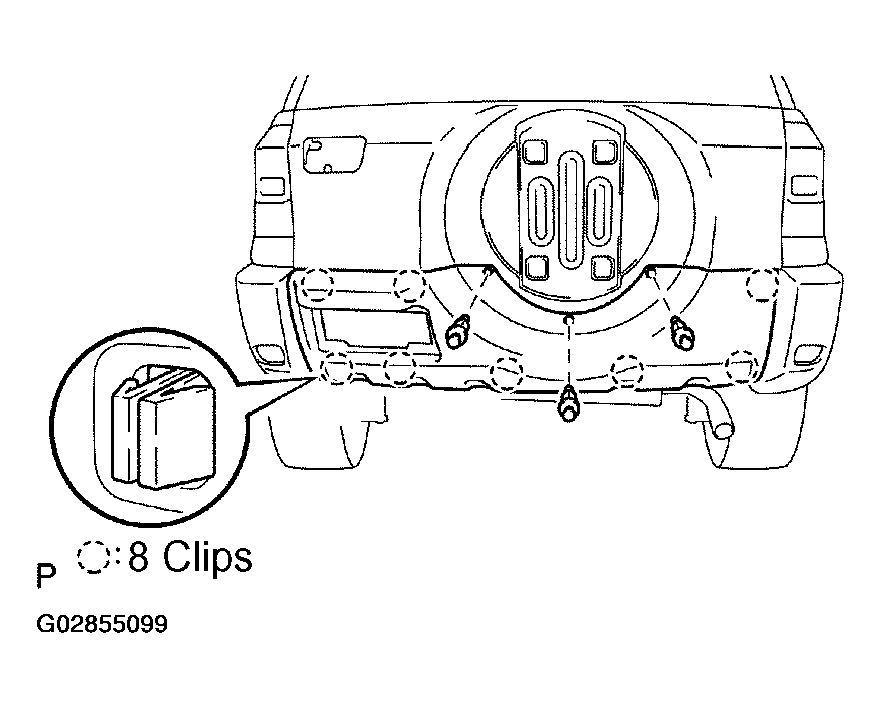

Fig 4: Removing Back Door Outside Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 3 clips.
2. Insert a screwdriver between the door outside garnish and back door to remove the door outside garnish.
  NOTE: Tape the screwdriver tip before use.
3. Disconnect the license plate light connector.
REMOVE STOP LIGHT COVER

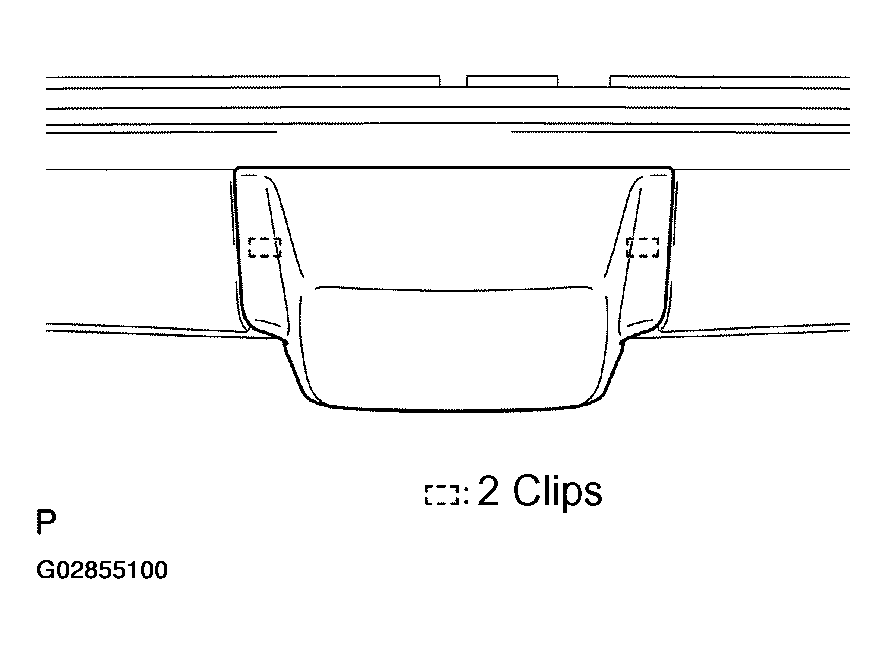

Fig 5: Removing Stop Light Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, remove the stop light cover.

NOTE: Tape the screwdriver tip before use.
REMOVE UPPER SIDE GARNISHES

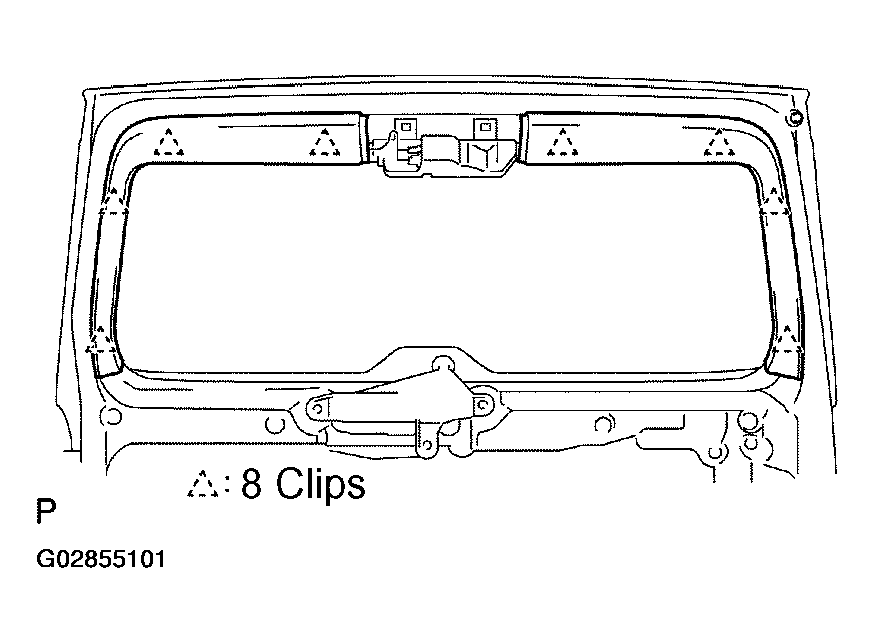

Fig 6: Removing Upper Side Garnishes
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, remove the upper side garnishes.

NOTE: Tape the screwdriver tip before use.
REMOVE STOP LIGHT
1. Remove the connector.
2. Remove the 2 screws and stop light.
REMOVE REAR SPOILER
Remove the 2 bolts, 2 nuts and rear spoiler.
