Automatic Rearming

When you unlock the doors using the remote control, the RS3200 is DISARMED at the same time. However, if you do not open a door or the trunk or hatch within 30 seconds, the system will relock the doors and the RS3200 will Rearm 30 seconds later

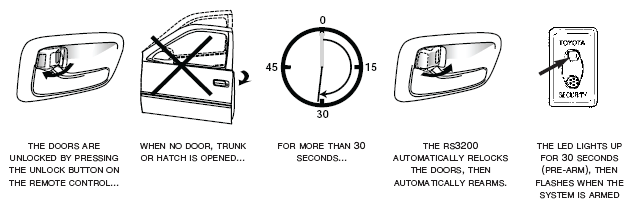

Fig 1: Automatic Rearming Procedure
G06741309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

How the RS3200 automatically Rearms:
