Removal & Installation: Transaxle: Removal

1. Drain transaxle oil. See appropriate SERVICING article.
2. Remove hybrid transaxle with engine assembly. See appropriate MECHANICAL article in ENGINES.
3. Remove the 8 transaxle-to-engine bolts. See Fig 1. Separate transaxle from engine.

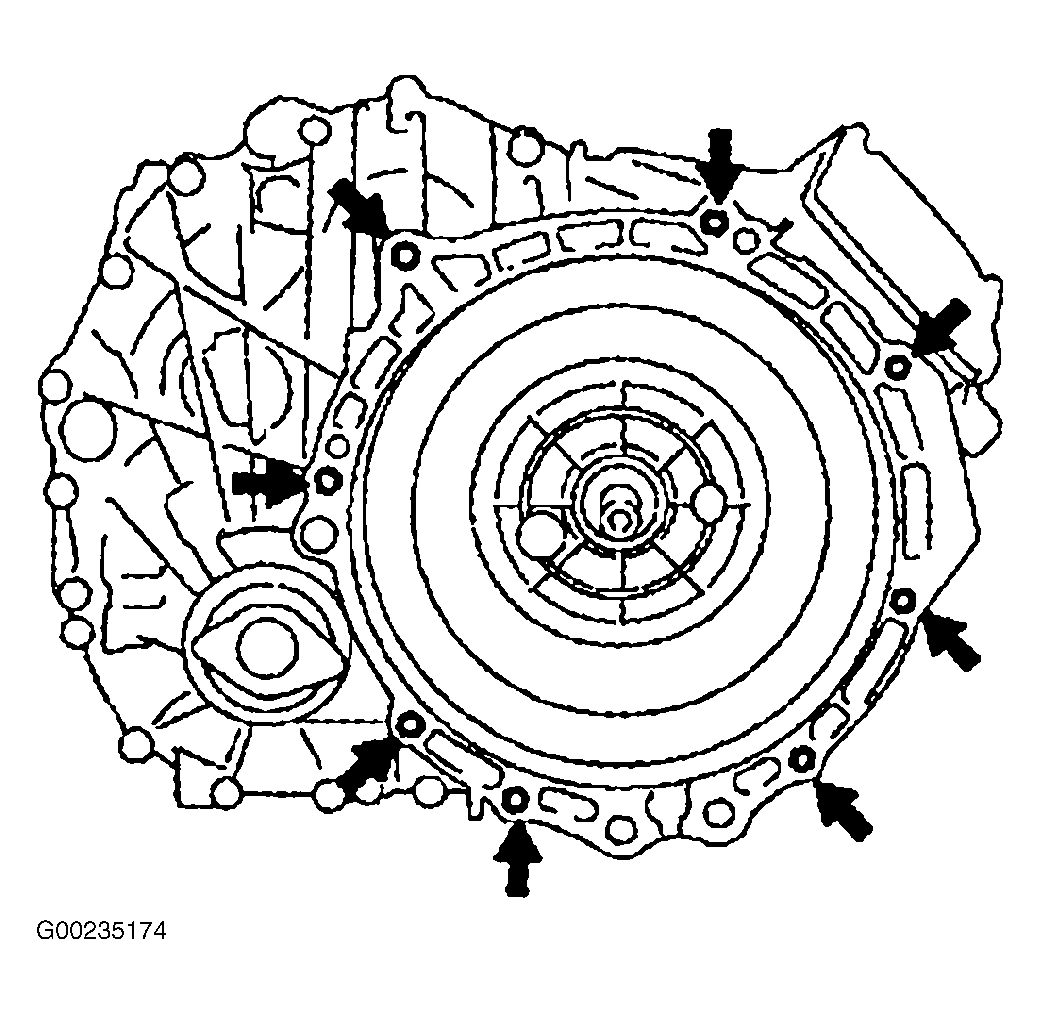

Fig 1: Identifying Transaxle-To-Engine Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
