Confirmation Driving Pattern

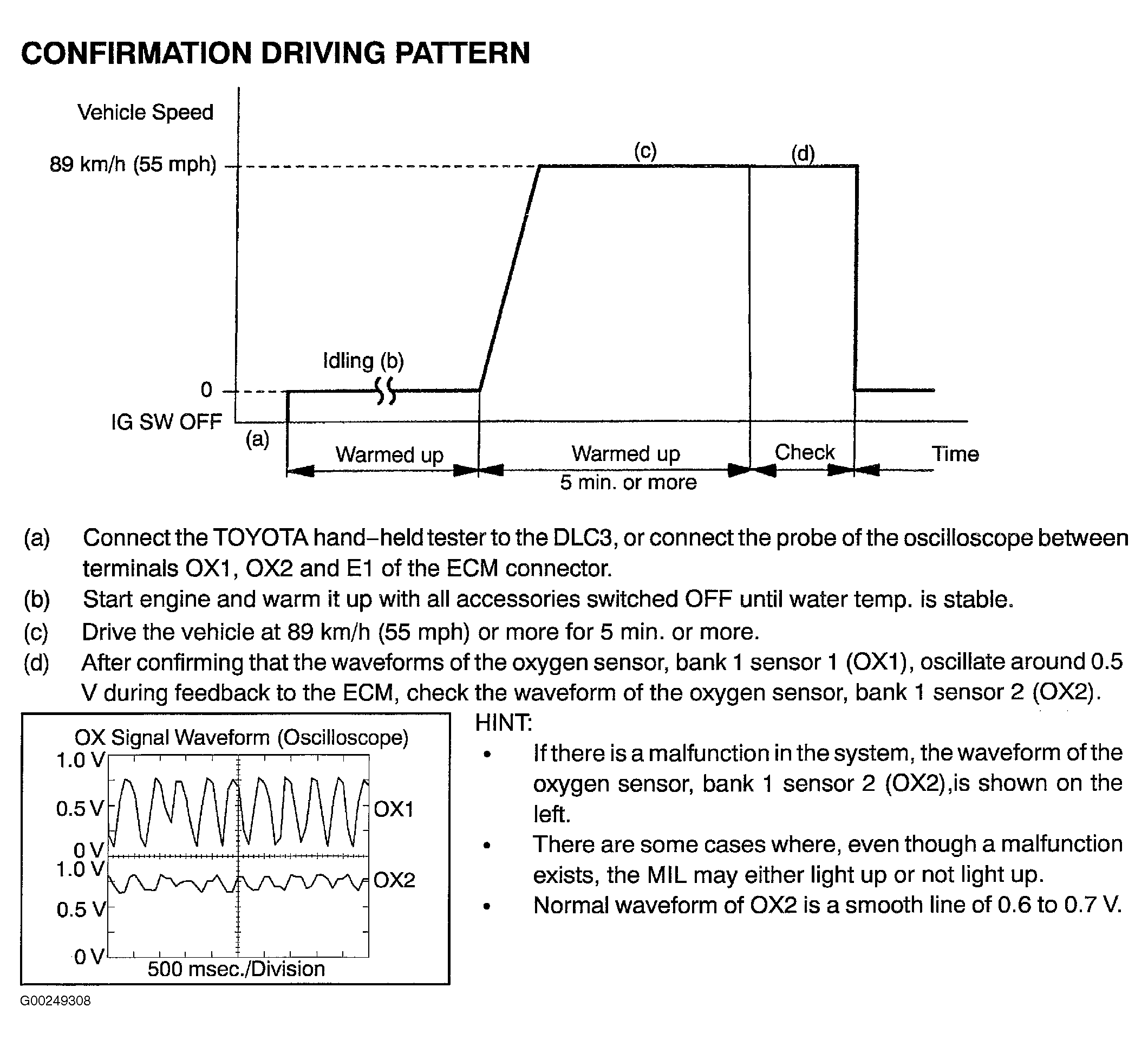

For confirmation driving pattern procedure, see Fig 1.

Fig 1: Confirmation Driving Pattern

G00249308

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
