Power Source: Location

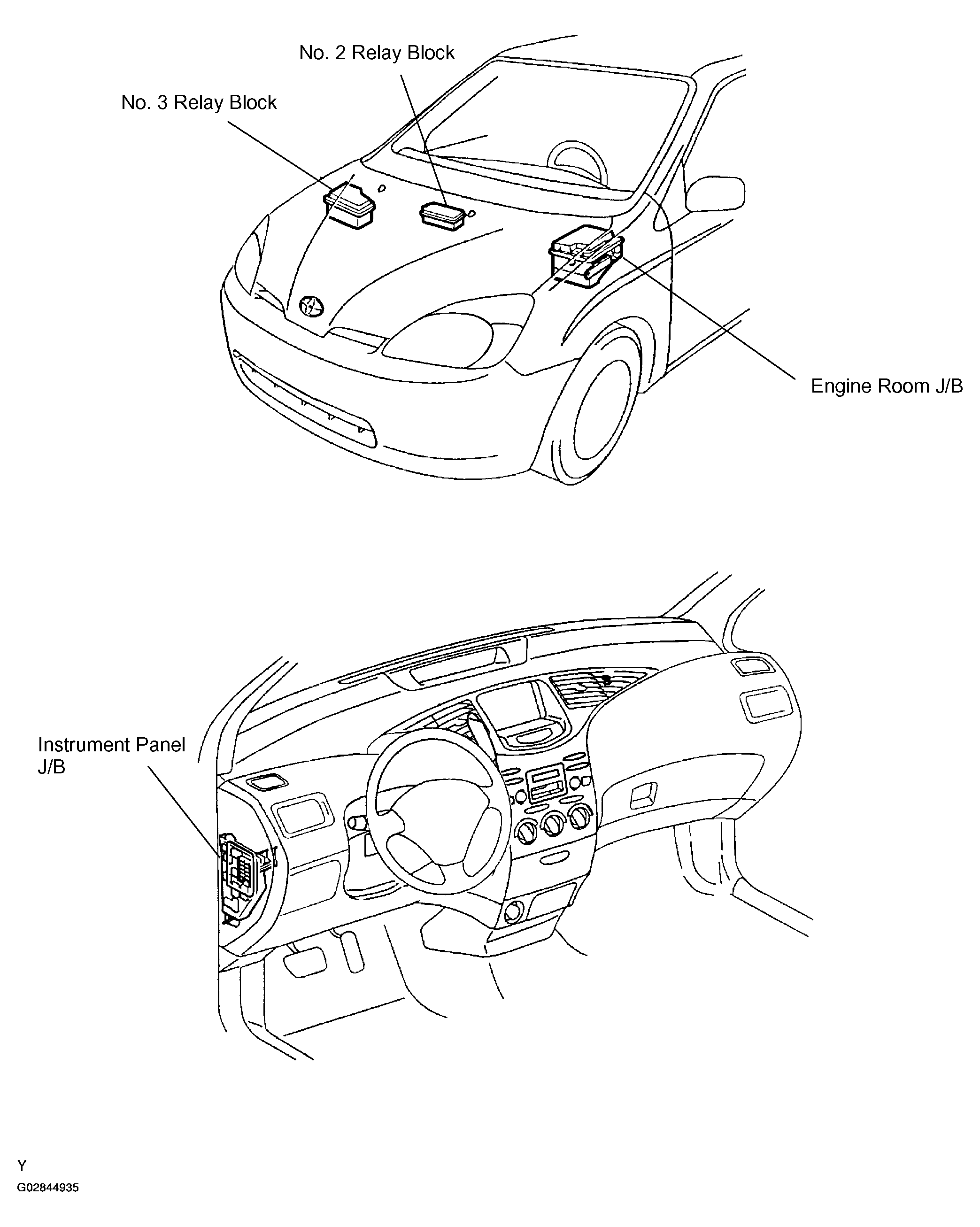

Fig 1: Identifying Power Source Component Locations
G02844935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

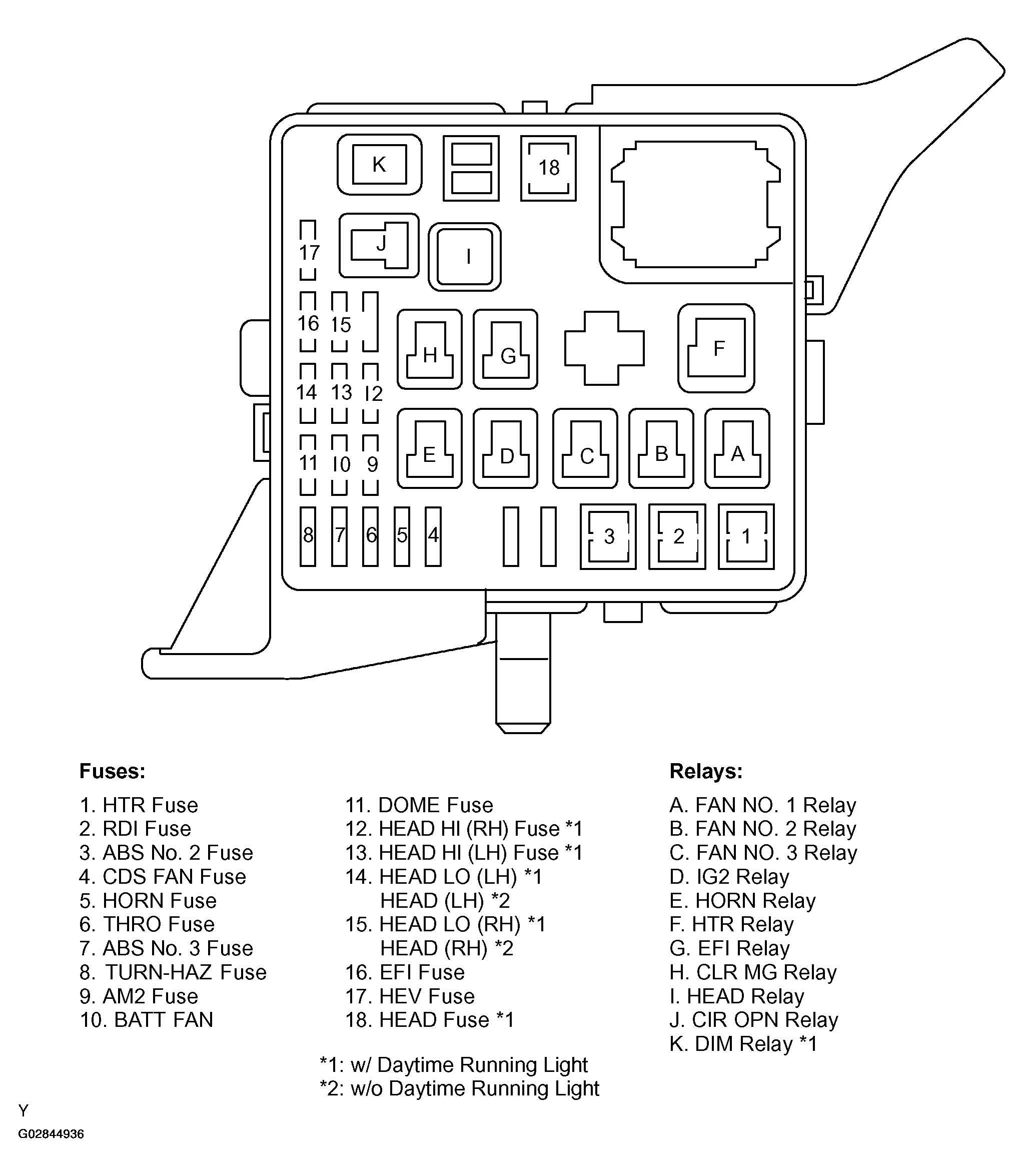

Fig 2: Identifying Engine Room J/B Components
G02844936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

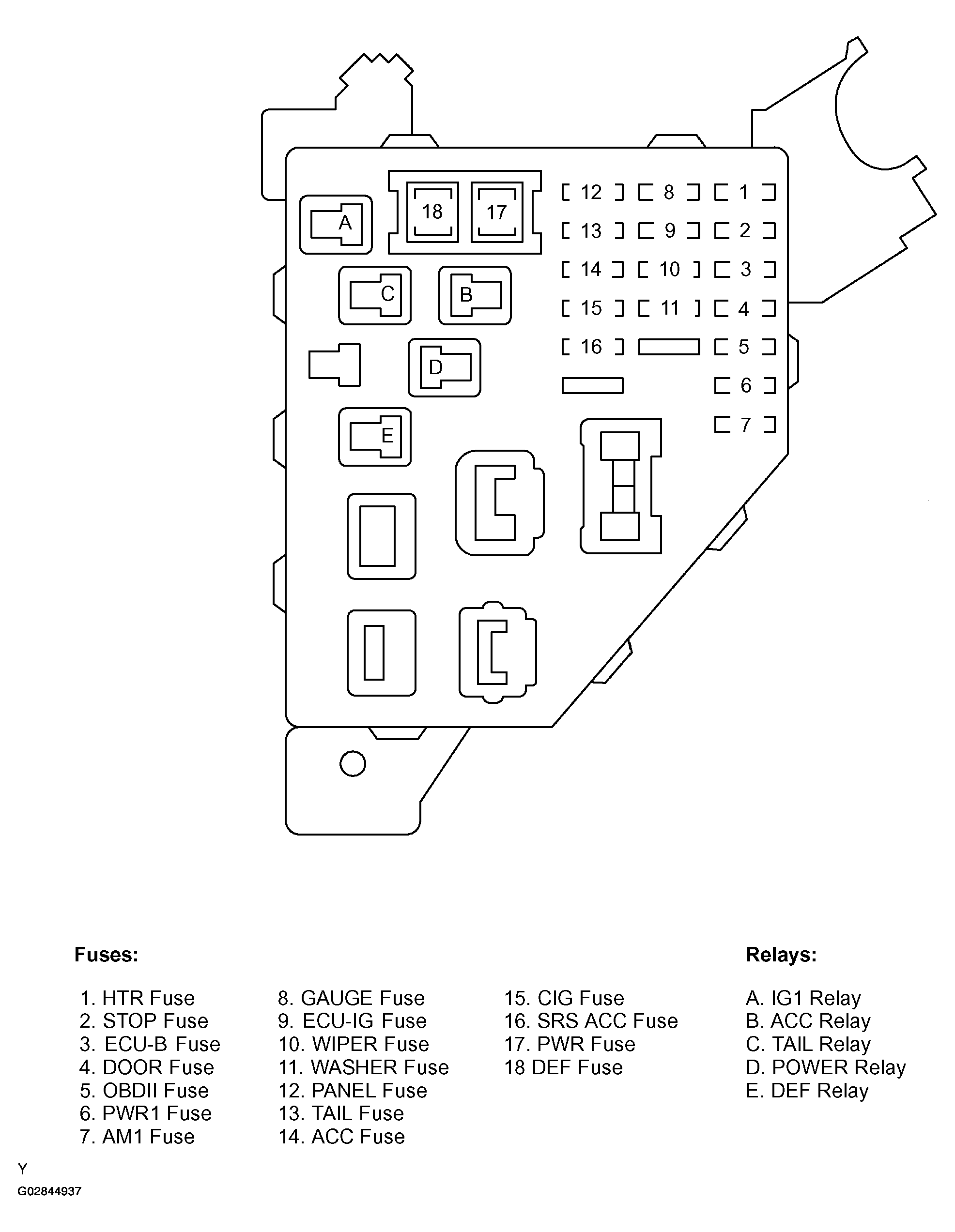

Fig 3: Identifying Instrument Panel J/B Components
G02844937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

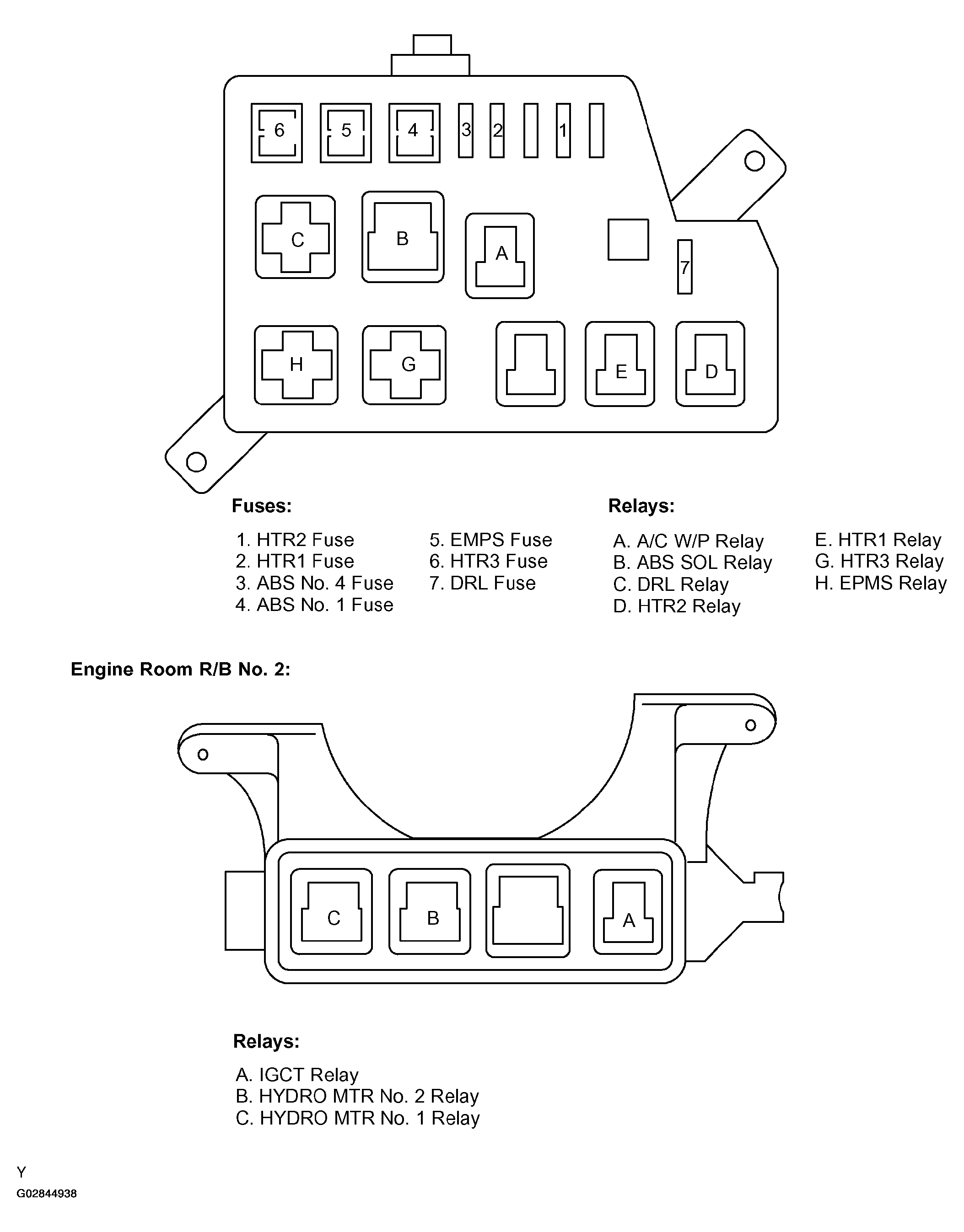

Fig 4: Identifying Engine Room R/B No 3 And 2 Components
G02844938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
