Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
HV Battery Control System - Diagnostics
>>
Parts Location
Parts Location

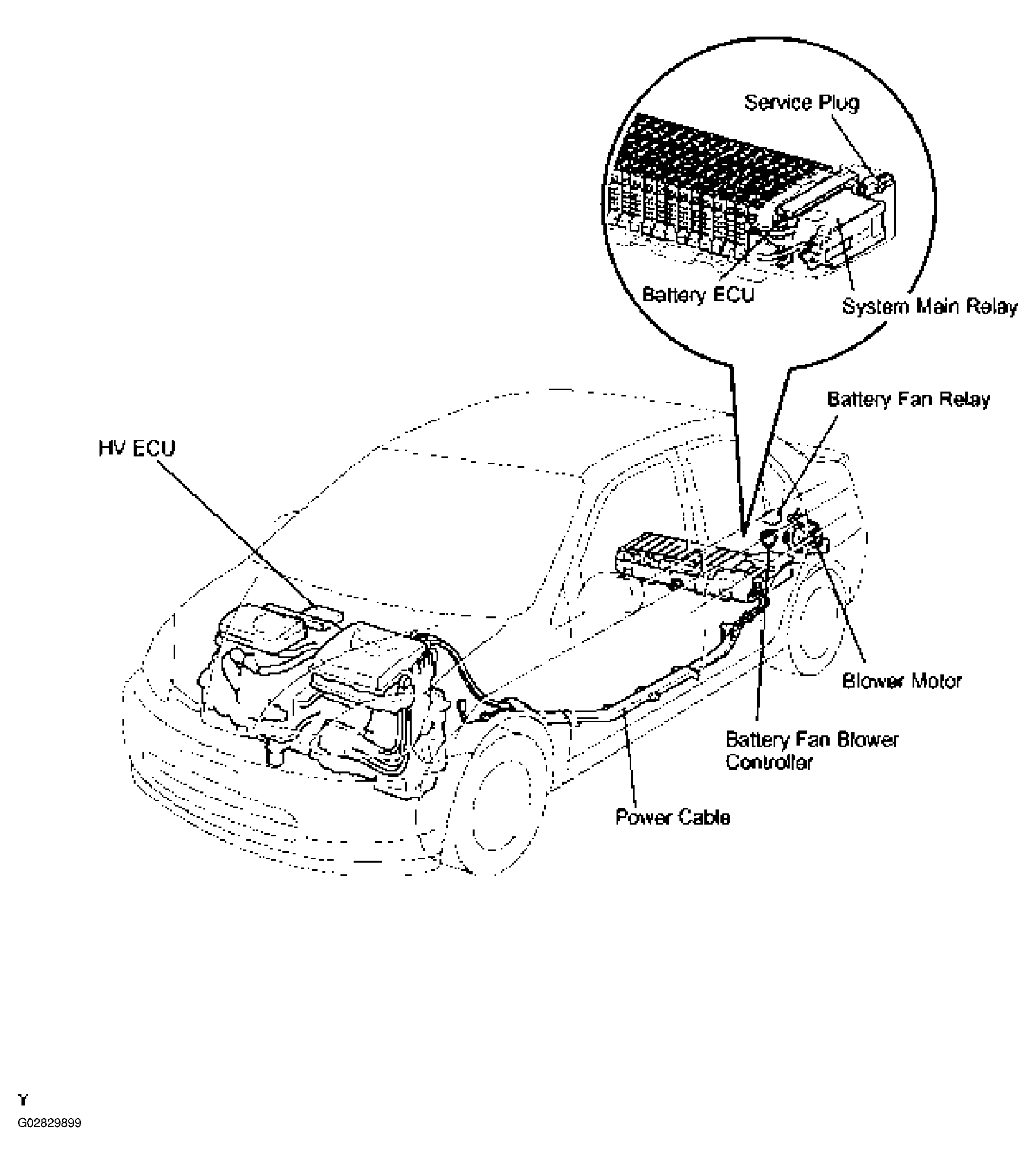

Fig 1: Locating HV Battery Control System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
