Test D: Brake Warning Buzzer Circuit
>>
Testing Procedures
Testing Procedures
For wiring diagram, see
Fig 1
. For testing procedures, see
Fig 2
.

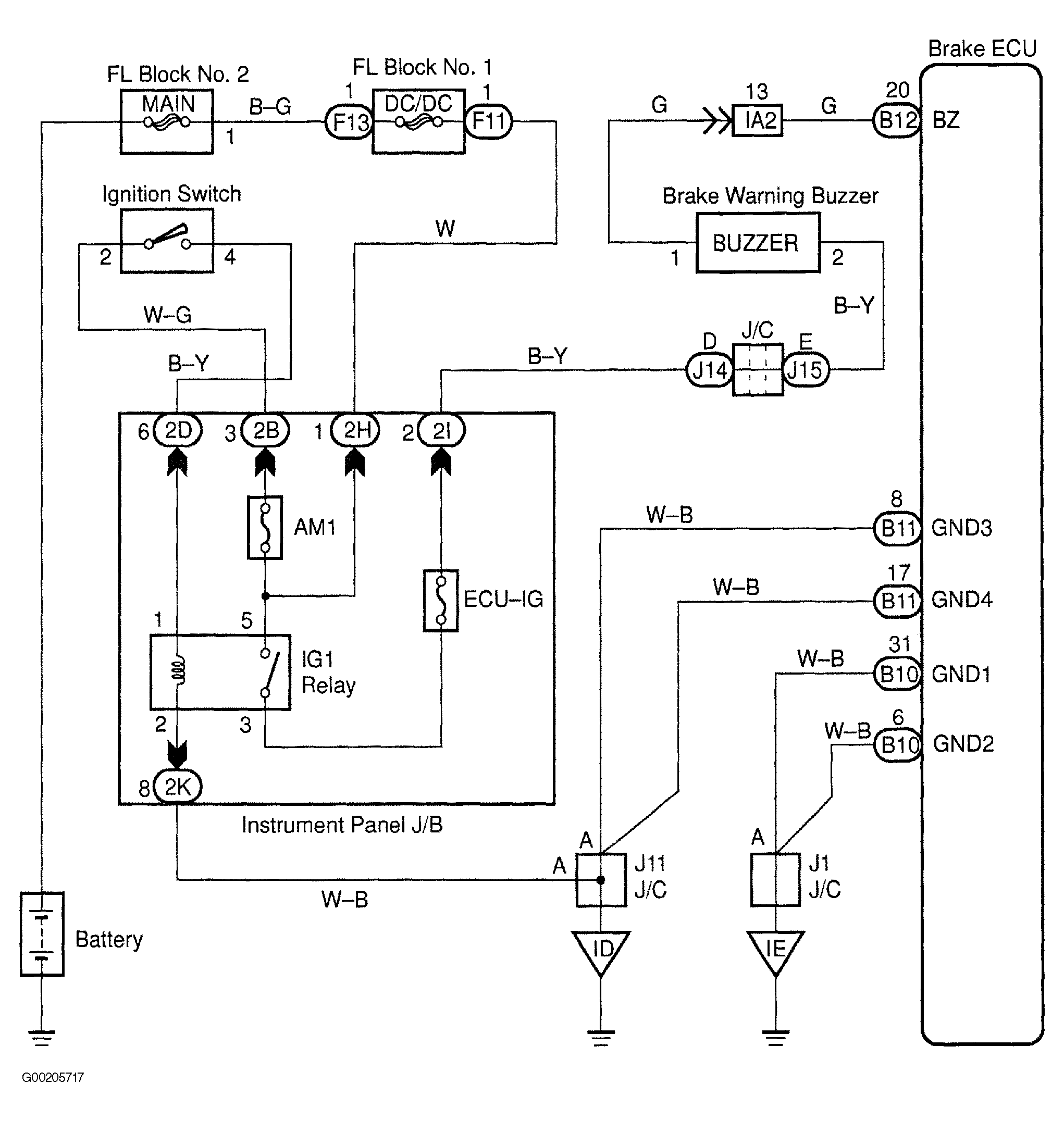

Fig 1: Brake Warning Buzzer Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

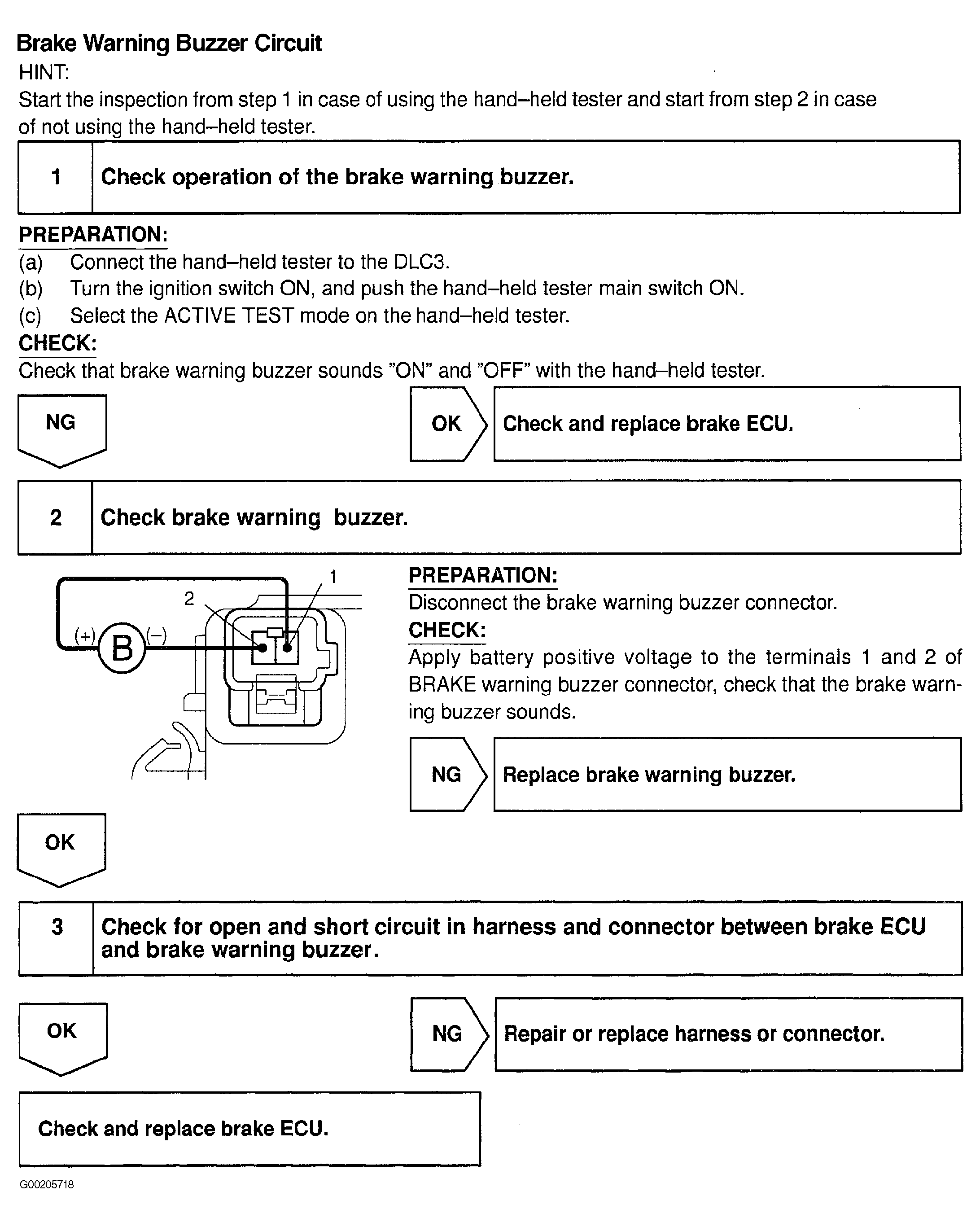

Fig 2: Brake Warning Buzzer circuit Testing Procedure
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
