Testing Procedures

For testing procedures, see Fig 1 and Fig 2 .

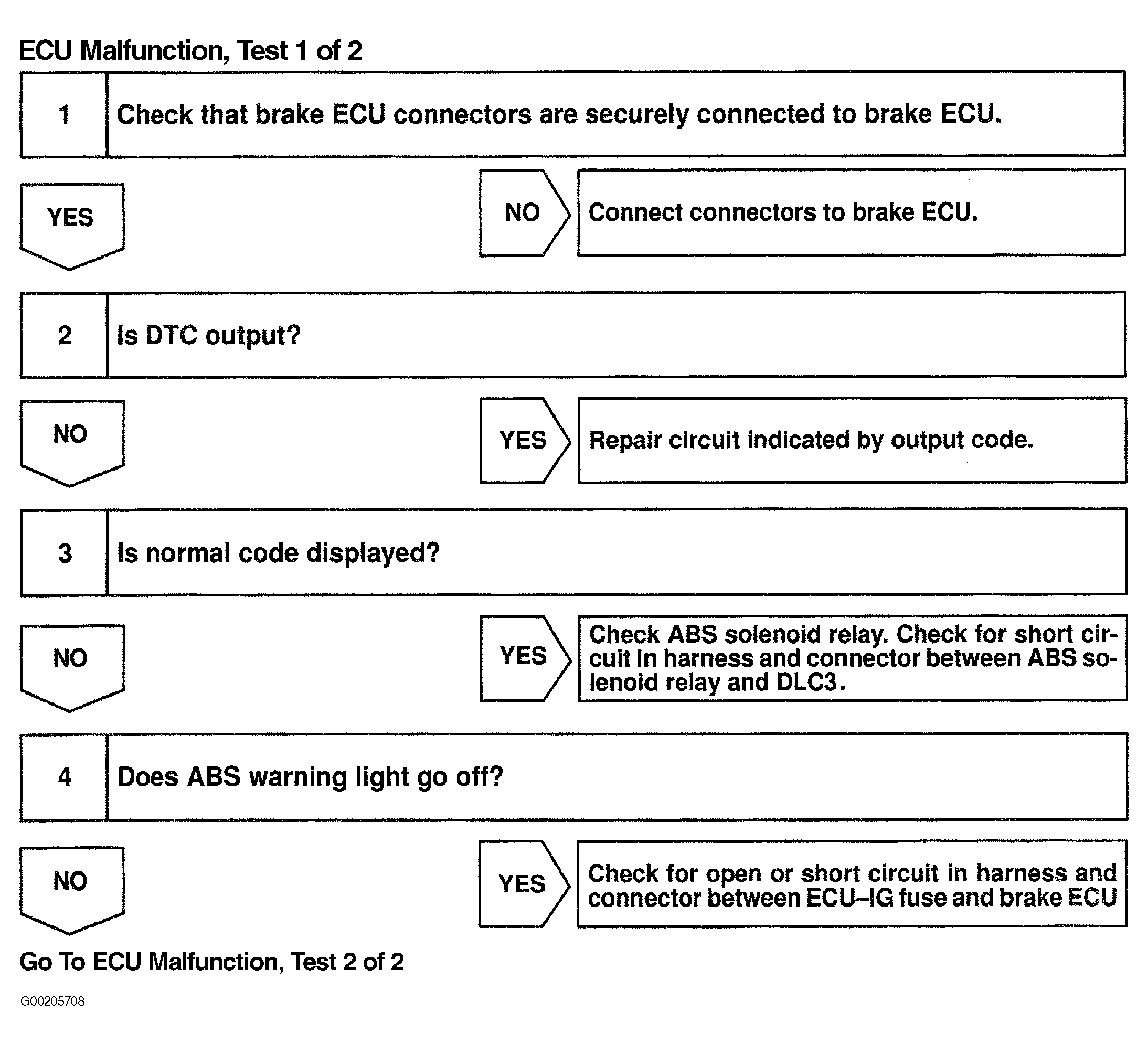

Fig 1: ECU Malfunction Test 1 Of 2
G00205708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

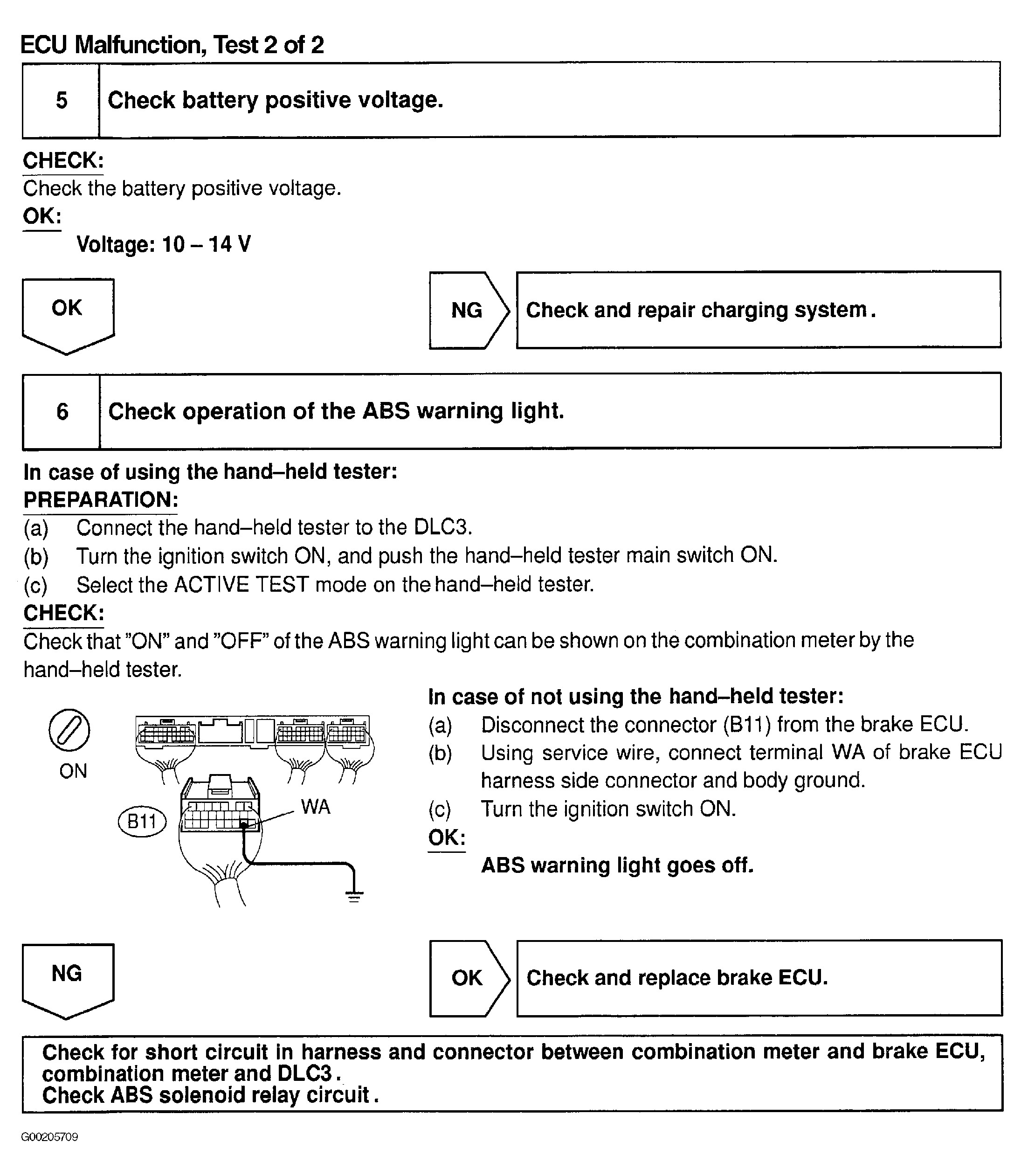

Fig 2: ECU Malfunction Test 2 Of 2
G00205709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
