Diagnostic Procedure

For wiring diagram, see Fig 1. For testing procedures, see Fig 2-Fig 4 .

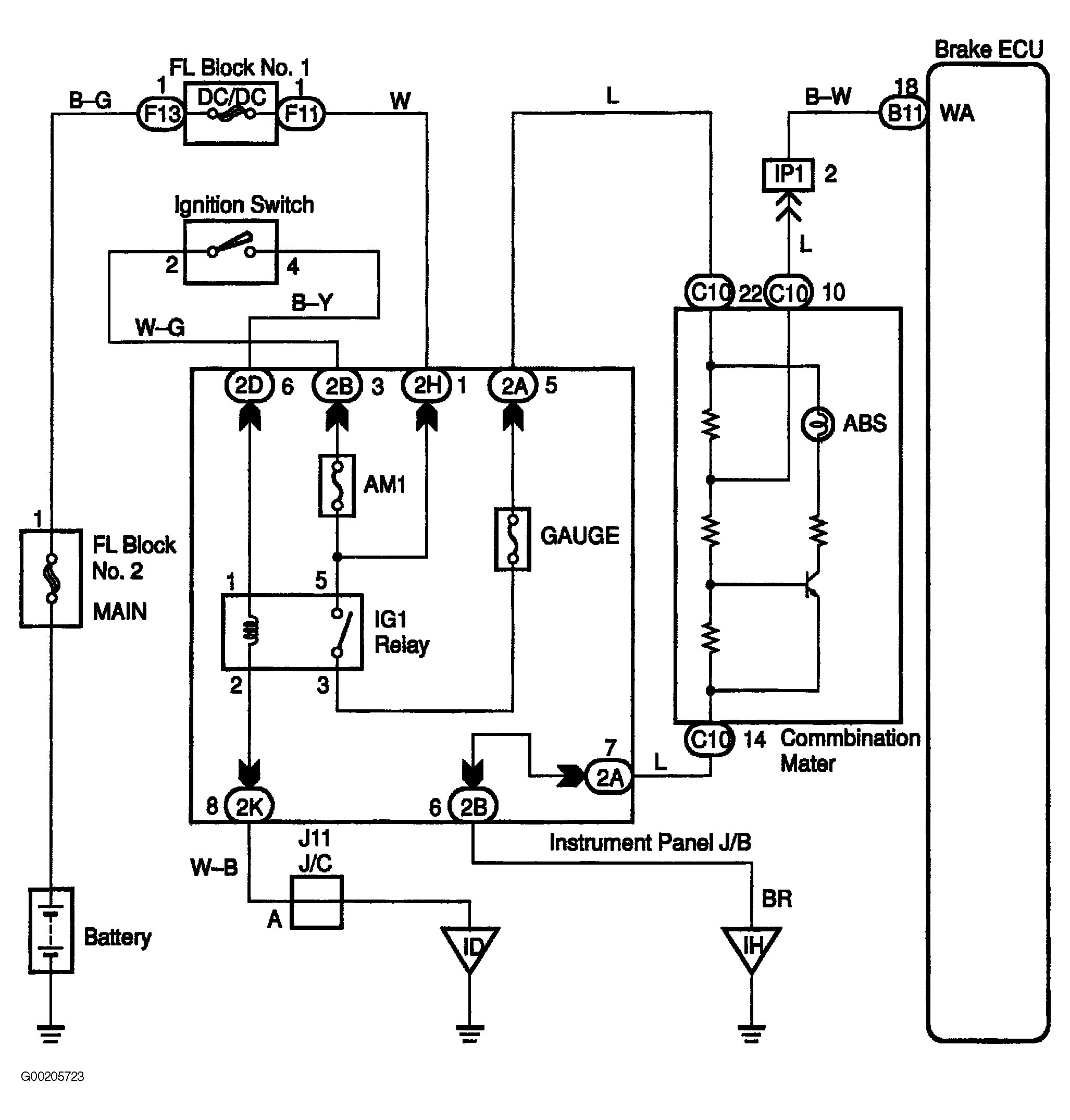

Fig 1: ABS Warning Light Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

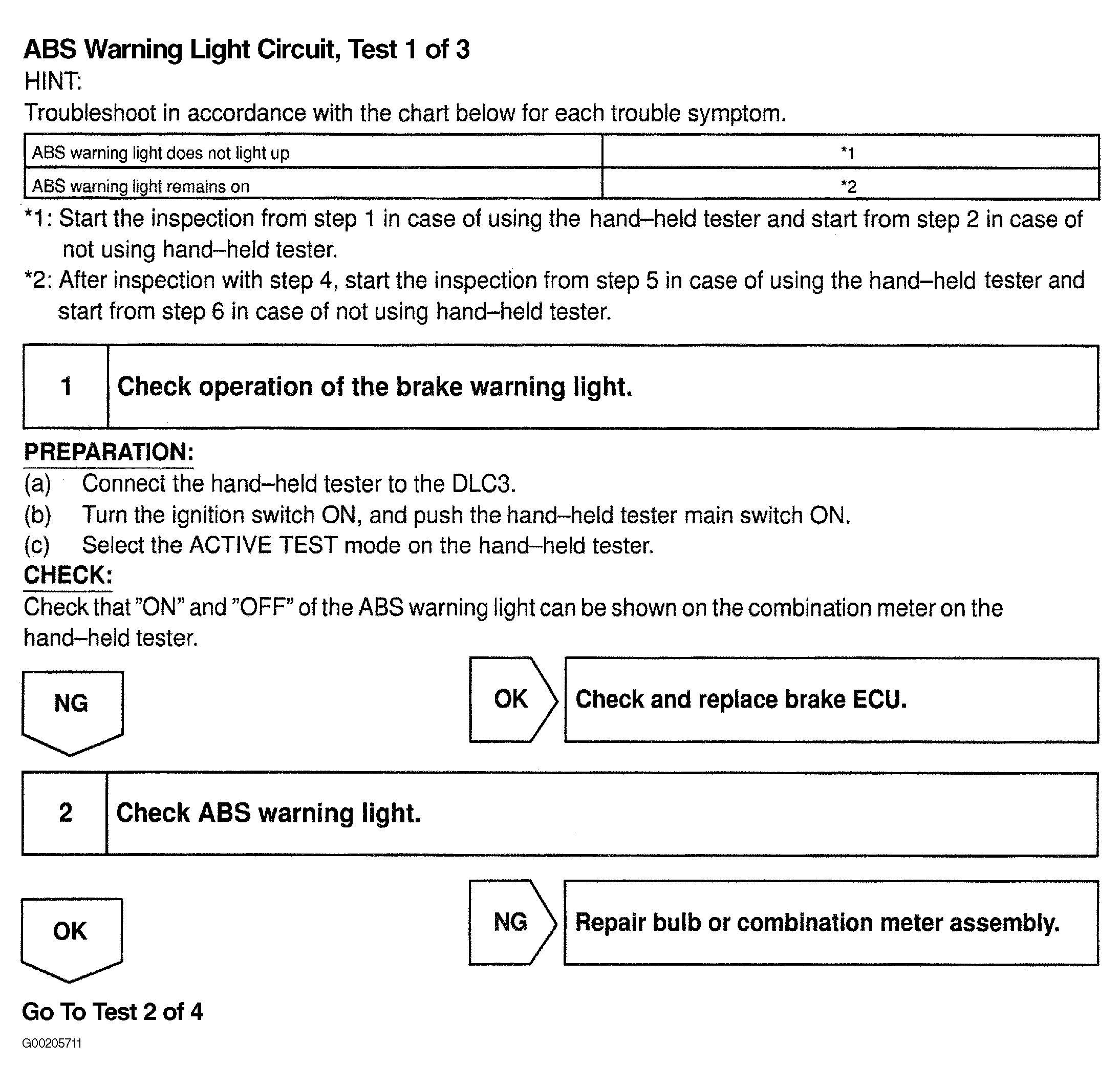

Fig 2: ABS Warning Light Circuit Testing Procedures (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: ABS Warning Light Circuit Testing Procedure (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

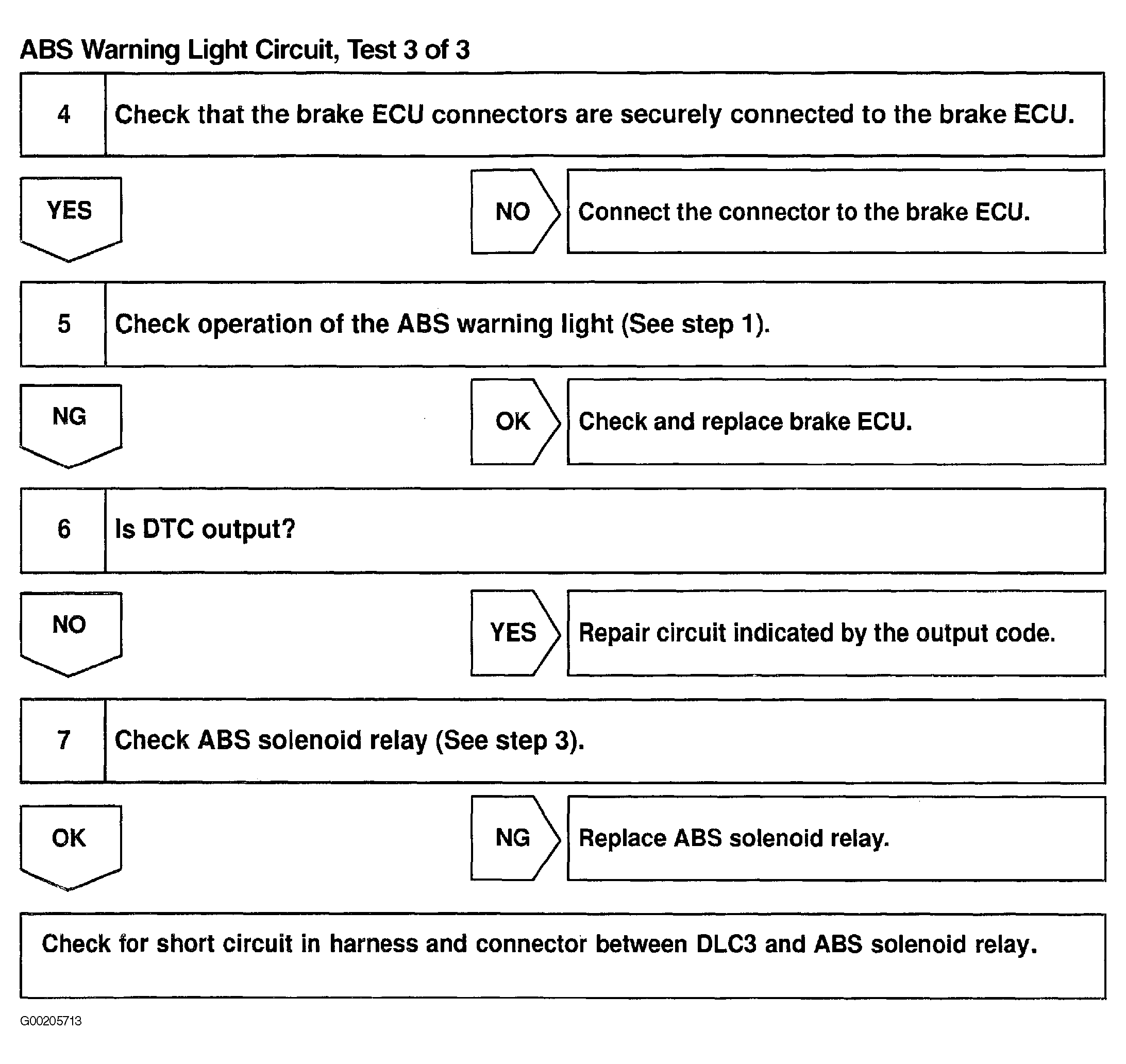

Fig 4: ABS Warning Light Circuit Testing Procedure (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
