Theft Deterrent System: Pre-Check

OUT LINE OF THEFT DETERRENT SYSTEM
When the theft deterrent system detects any theft, it informs people around with flashing lights and sound.

This system is designed to be upgraded by featuring an optional glass break sensor.

All initial setting are performed in active mode. It can be switched to passive mode by specified operation. (See step 3. CHANGING METHOD OF PASSIVE MODE)

NOTE:
There are 4 conditions in this system which are disarmed state, arming preparation, armed state and alarm sounding.
1. Disarmed state
  - When the alarming function does not operate.
  - When theft deterrent function is not performed.
2. Arming preparation
  - Time until transferring to armed state.
  - Theft deterrent function is not performed.
3. Armed state
  When theft deterrent function is possible.
4. Alarm sounding:
  In this condition, once theft is detected, it is informed using light and sound to people around the vehicle.

  Refer to Fig 1 for alarming method or time.

  Fig 1: Theft Deterrent System Alarming Specification Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Alarming output for hazard is same as the one for the hazard on the vehicle.

  In the arming condition when either of doors is unlocked with key not in the key cylinder, force lock signal is output.

ACTIVE ARMING MODE

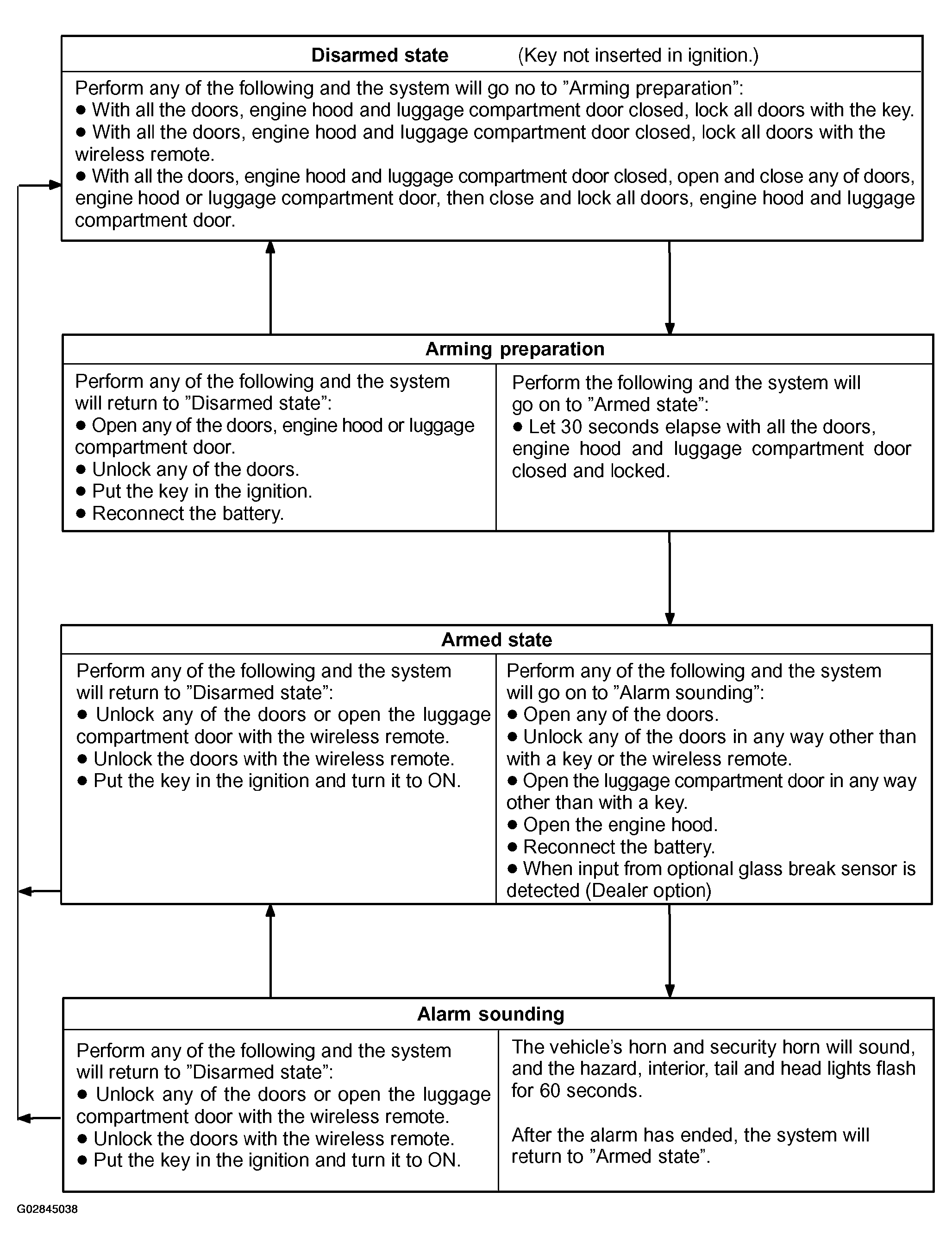

Fig 2: Active Arming Mode Flowchart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Indicator light output:

INDICATOR LIGHT OUTPUT

Condition	Indicator light
Disarmed state	OFF
Arming preparation	ON
Armed state	OFF
Alarm sounding	ON

NOTE:

Even in disarmed state, the indicator light flashes. (Due to the signal output from immobilizer system). The indicator always flashes receiving the signal from the immobilizer system at any time in the armed state.

Flashing frequency:

0.2 seconds (ON)

1.8 seconds (OFF)

Answer back:

The hazard lights flash as answer back under the following conditions.

When the system is set. When arming preparation is set from disarmed state using the wireless door lock, the hazard lights flush once.
When the system is released. When disarmed state is set from either arming preparation, armed state or alarm sounding using the wireless door lock, the hazard lights flush twice.

PASSIVE ARMING MODE

This mode can be switched according to the specified operation.
All initially set modes (when shipped from factory) are active mode. (No passive mode)

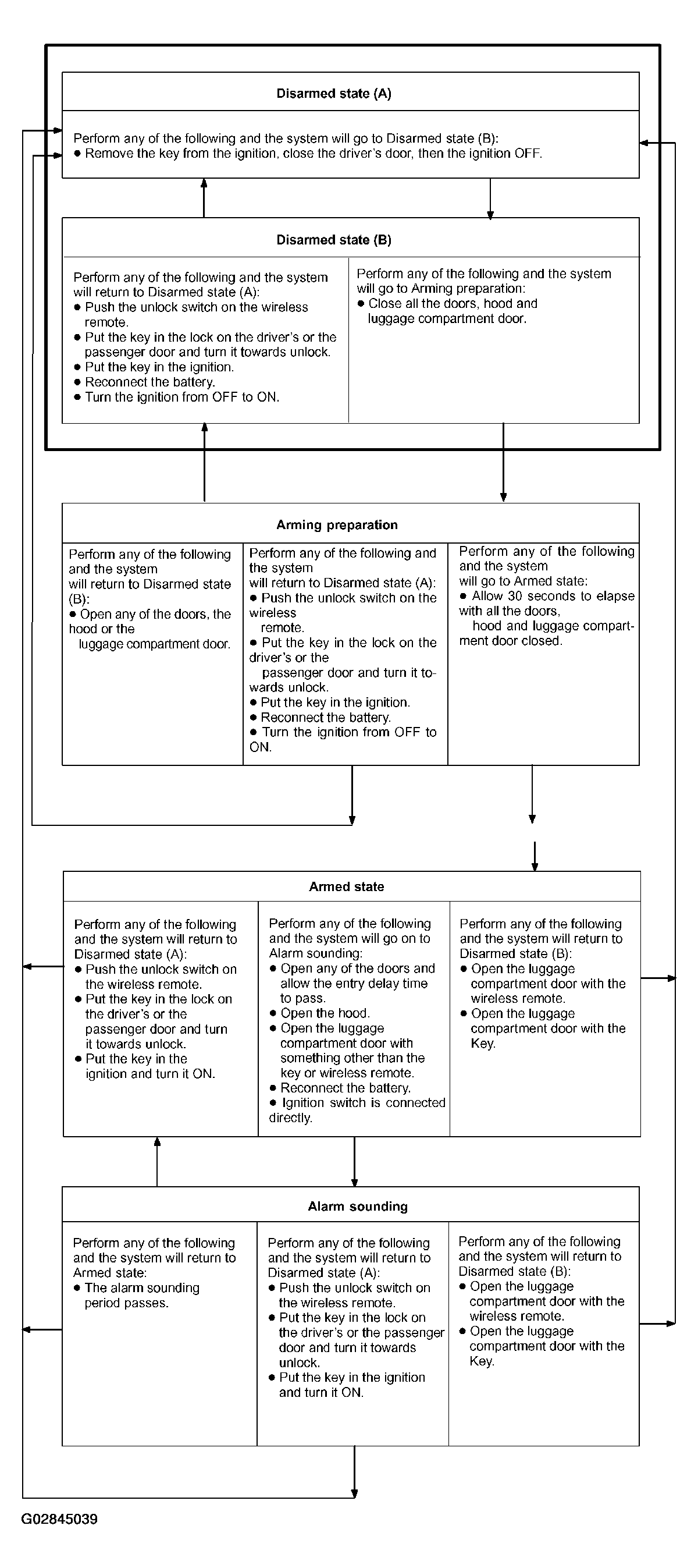

Fig 3: Passive Arming Mode Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

In armed state either closed door is opened, entry delay occurs. (15 secs.)

During this time, the mode transfers to disarmed state when the condition described above * is met.

When the condition is not met, the system judges theft occurs, the mode transfers to alarm sounding.

Fig 4: Identifying Passive Arming Mode Conversion In Alarm Sounding

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Indicator light output:

Fig 5: Indicator Light Output Chart

NOTE:

Even in disarmed state, the indicator light flash. (Due to the signal output form immobilizer system). The indicator always flashes receiving the signal from the immobilizer system at any time in the arming condition.

Flashing frequency:

0.2 seconds (ON) 1.8 seconds (OFF)

Transfer to active mode:

In each passive mode, when "disarmed state of active mode --> arming preparation transfer condition" is met, the active mode transfers to each condition. In this case, active mode continues till disarmed state.

ACTIVE MODE TRANSFER

Passive mode when transfer condition is met.	Active mode transfer condition
Disarmed state	Arming preparation condition
Arming preparation condition	Arming preparation condition
Armed state (During entry delay time)	Arming condition (After alarming time has elapsed, arming condition
Alarm sounding	After alarming time has elapsed, arming condition

Answer back:
The hazard lights flush as answer back under the following conditions.
1. When the system is set.
  When arming preparation is set from disarmed state using the wireless door lock, the hazard lights flush once.
2. When the system is released.
  When disarmed state is set from either arming preparation, armed state or alarm sounding using the wireless door lock, the hazard lights flush twice.

CHANGING METHOD OF PASSIVE MODE (ON or OFF)

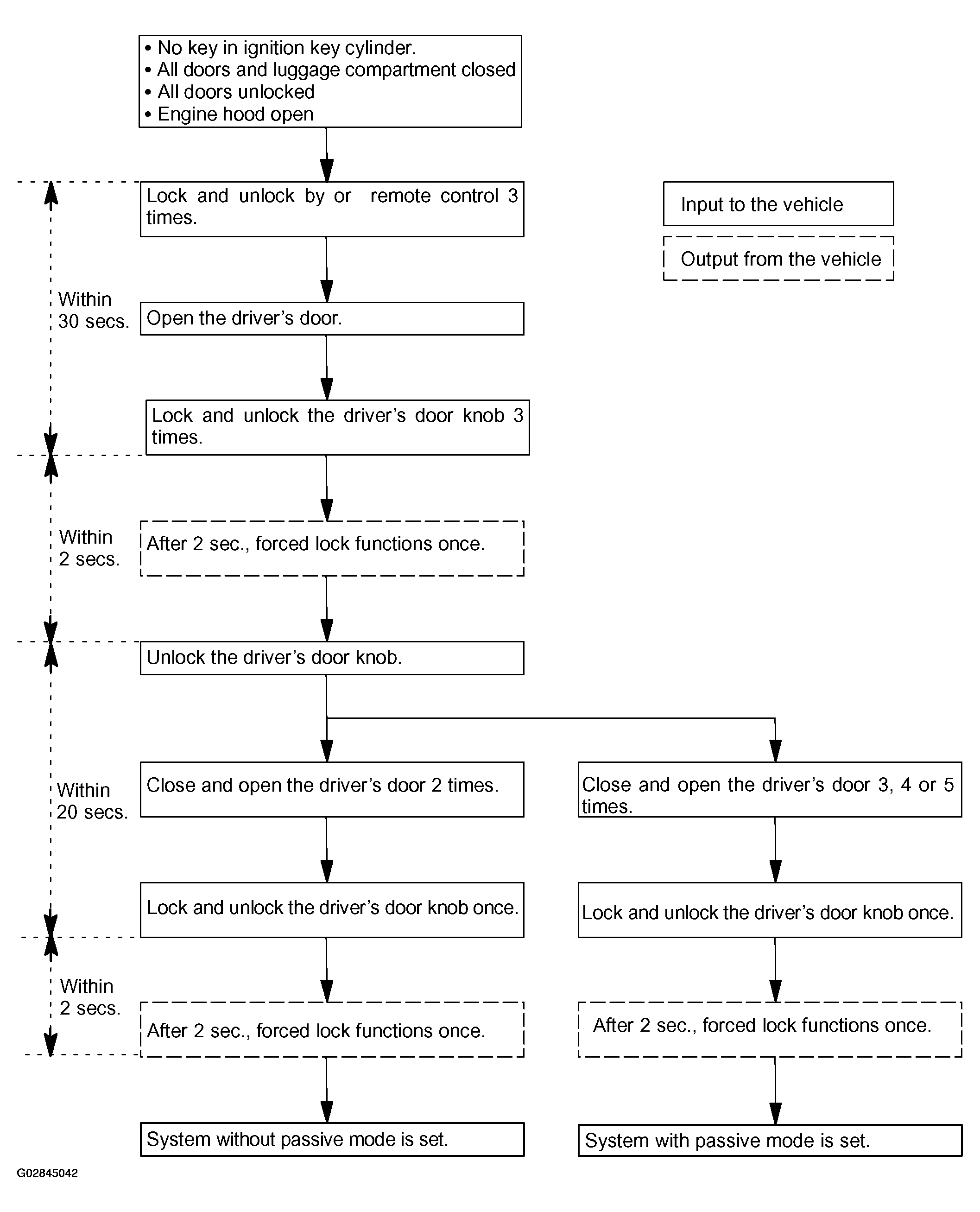

Fig 6: Changing Method Of Passive Mode (ON Or OFF) Flowchart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- Initially (when shipping), system without passive mode is set.
- Any input or output other than the above shall be regarded as invalid. (Start again from the beginning).
ECU TERMINAL VALUES MEASUREMENT BY USING TOYOTA BREAK-OUT-BOX AND TOYOTA HAND-HELD TESTER
1. Hook up the TOYOTA break- out- box and TOYOTA hand-held tester to the vehicle.

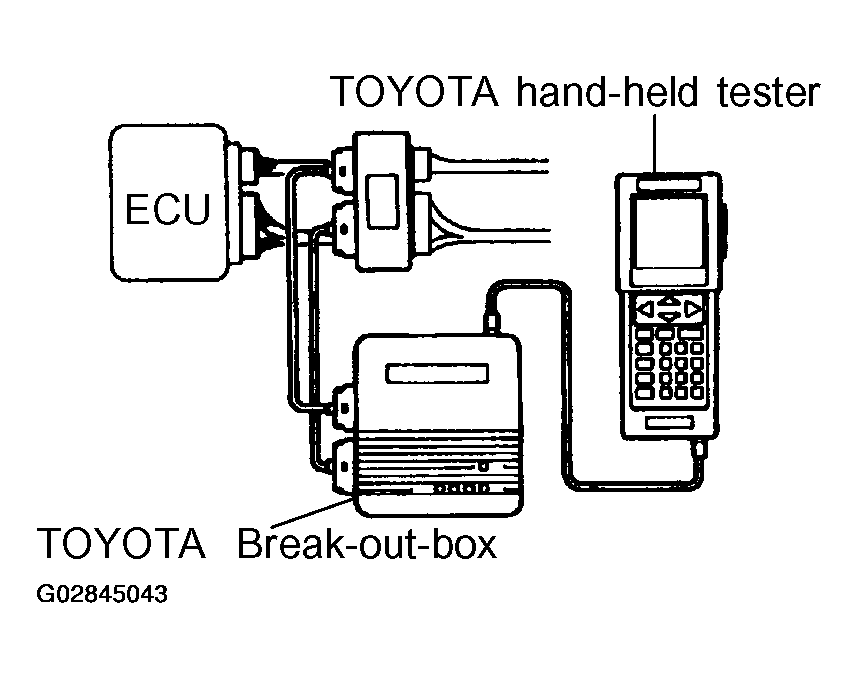

  Fig 7: Measuring ECU Terminal Values Using TOYOTA Break-Out-Box And Handheld Tester
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Read the ECU input/output values by following the prompts on the tester screen.
3. Please refer to the TOYOTA hand-held tester has a "Snapshot" function. This records the measured data and is effective in the diagnosis of intermittent problems.
