How To Proceed With Troubleshooting

NOTE:

This ECU is connected to the multiplex communication system. Therefore, be sure to check that there is no troubles in the multiplex communication system before performing the trouble shooting.

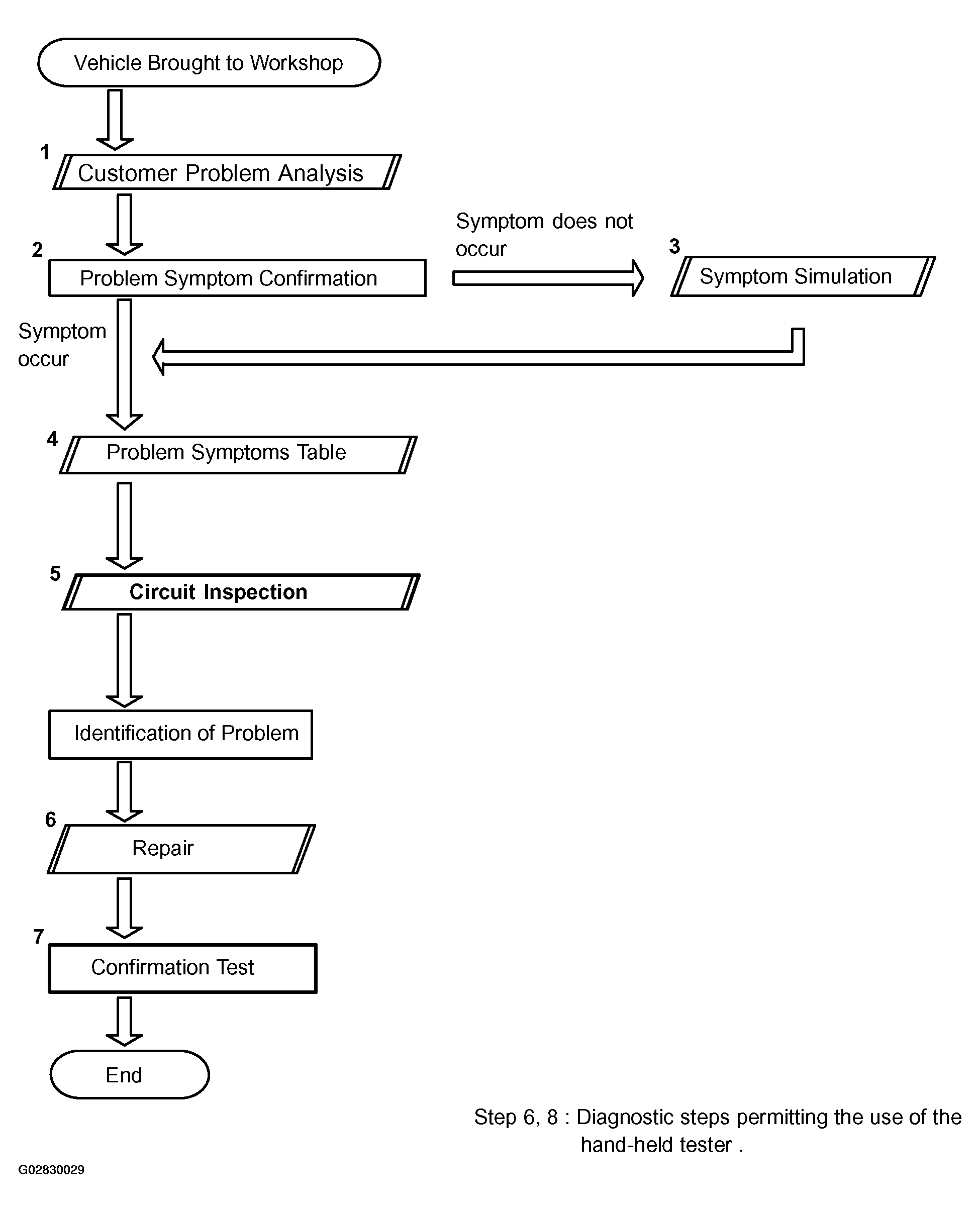

Fig 1: Body Control System - Troubleshooting Flow Chart
G02830029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
