Home >> Toyota >> 2003 >> Matrix XRS, Automatic >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Front Seat Belt With PRETENSIONER >> Components

Front Seat Belt With PRETENSIONER: Components

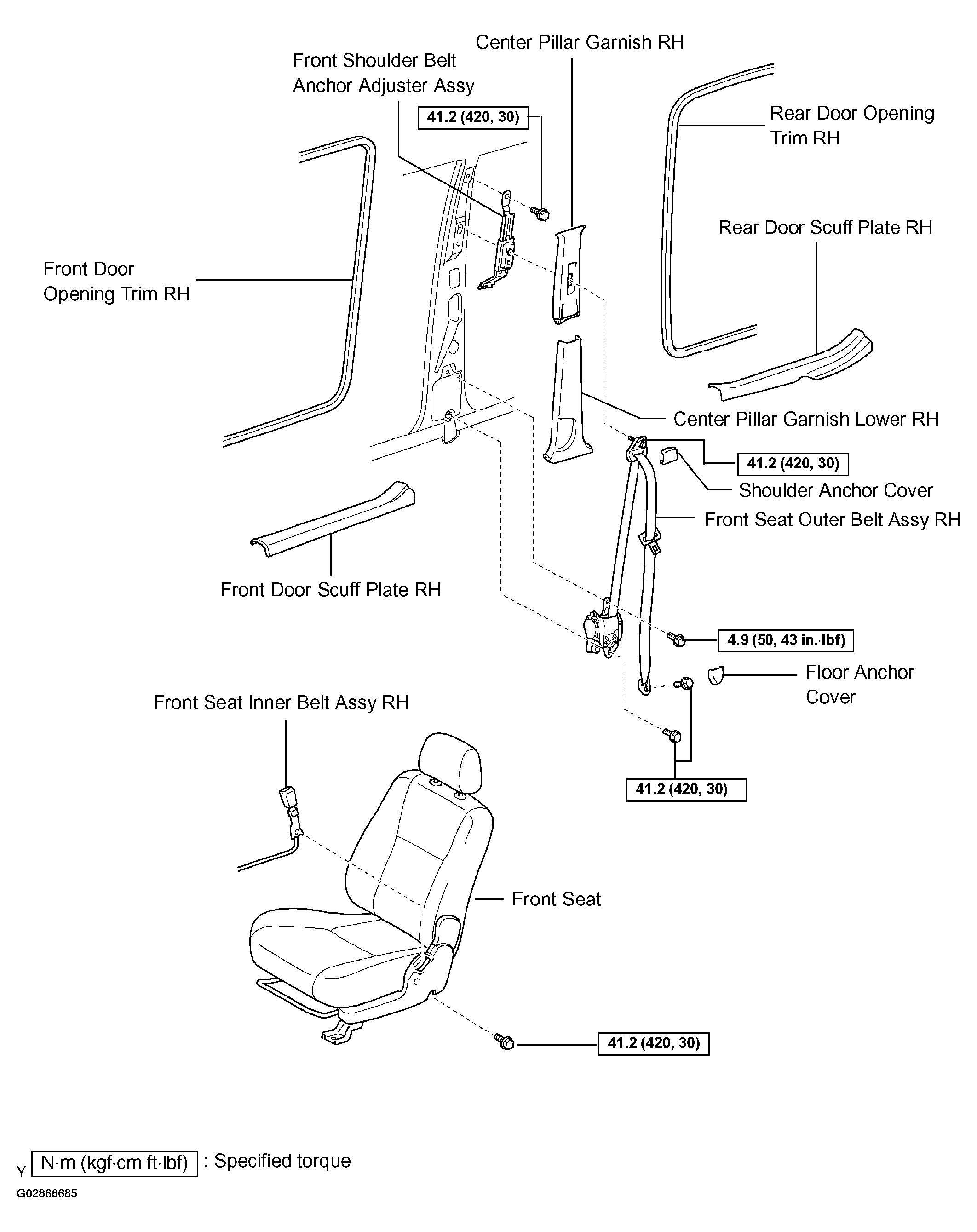

Fig 1: Identifying Front Seat Belt Components

G02866685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
