Ignition Timing: Matrix

To inspect ignition timing, see Fig 1-Fig 2 .

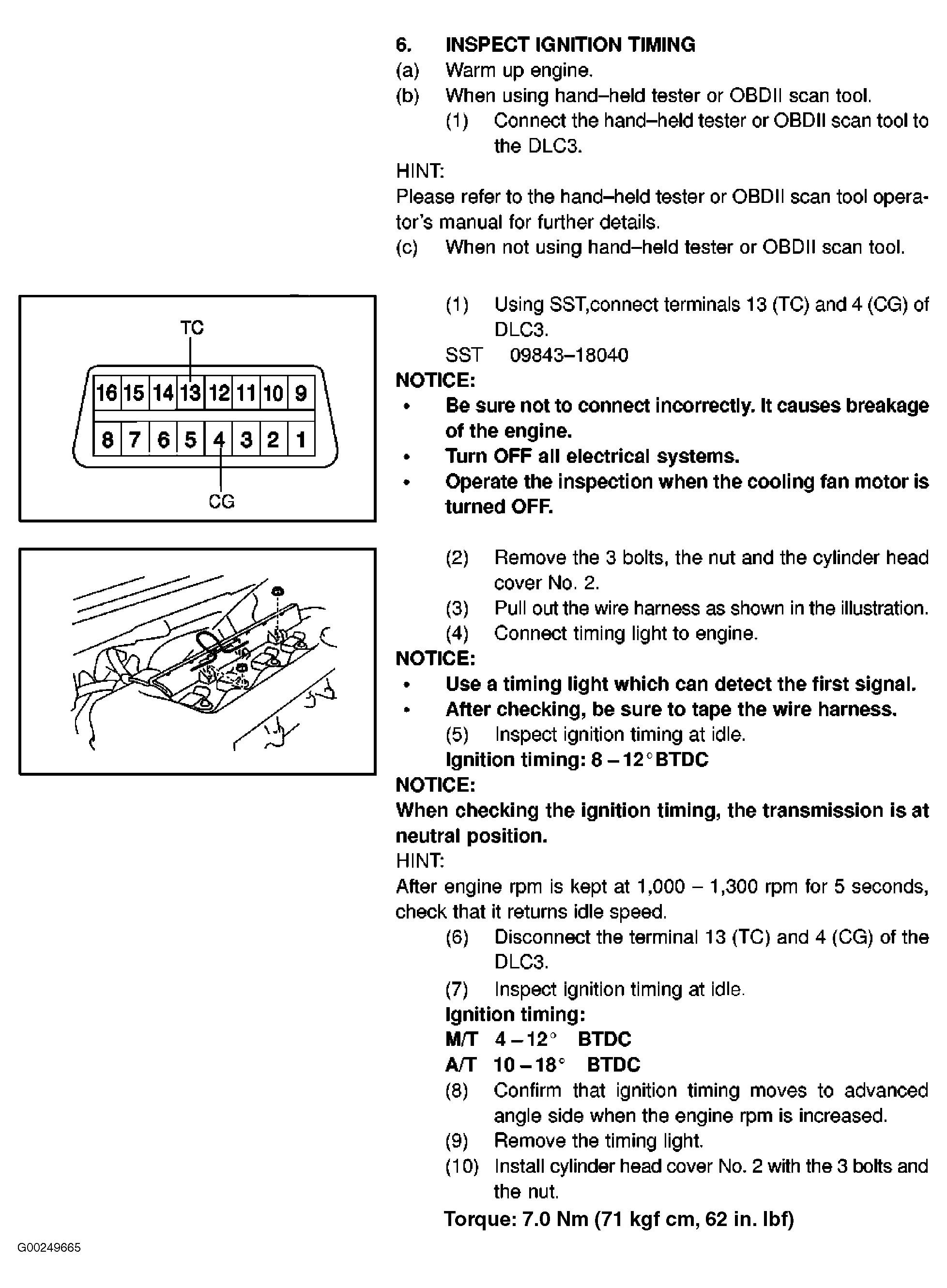

Fig 1: Inspecting Ignition Timing (Matrix - 1ZZ-FE Engine)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

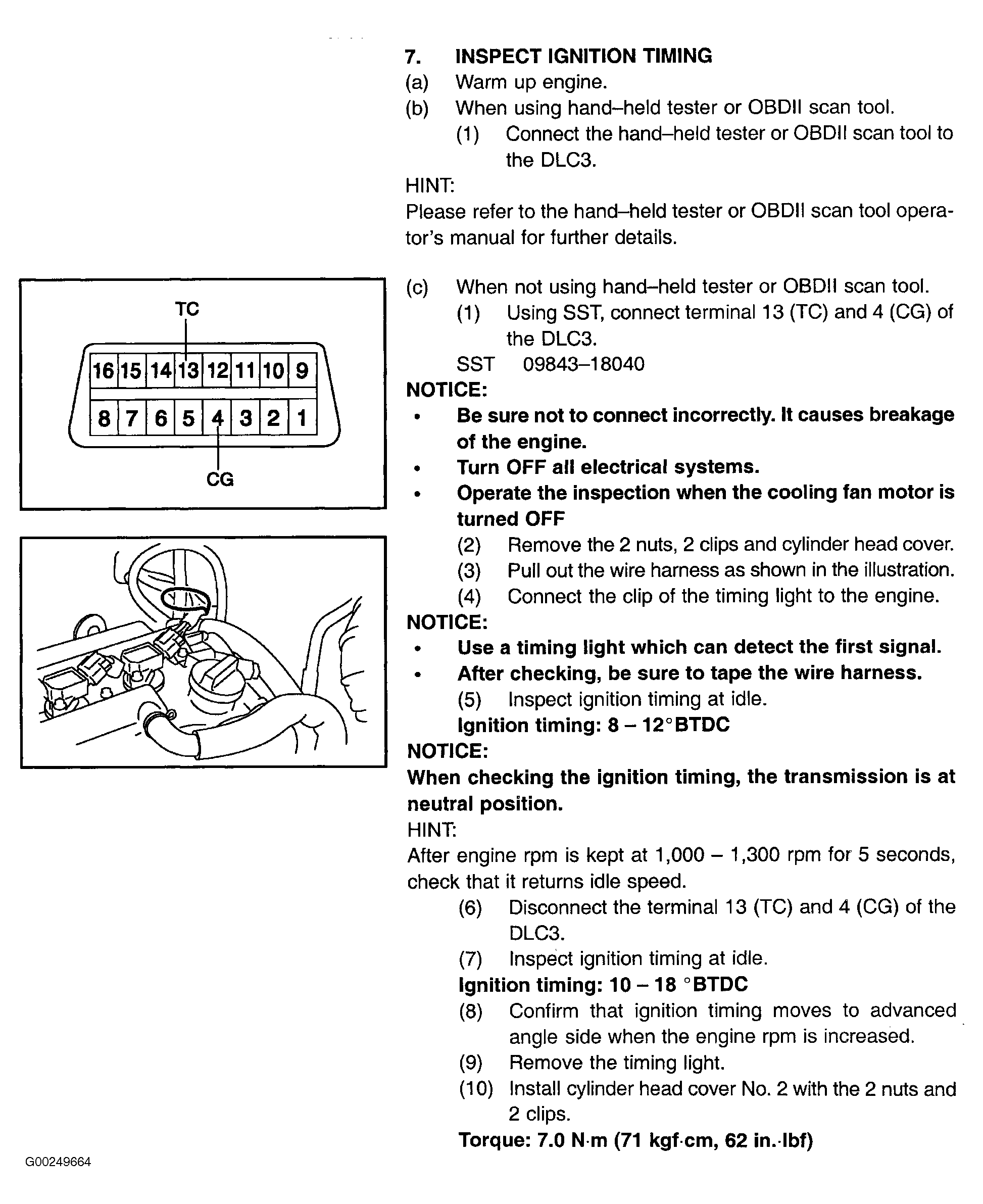

Fig 2: Inspecting Ignition Timing (Matrix - 2ZZ-GE Engine)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
