Parts Location

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

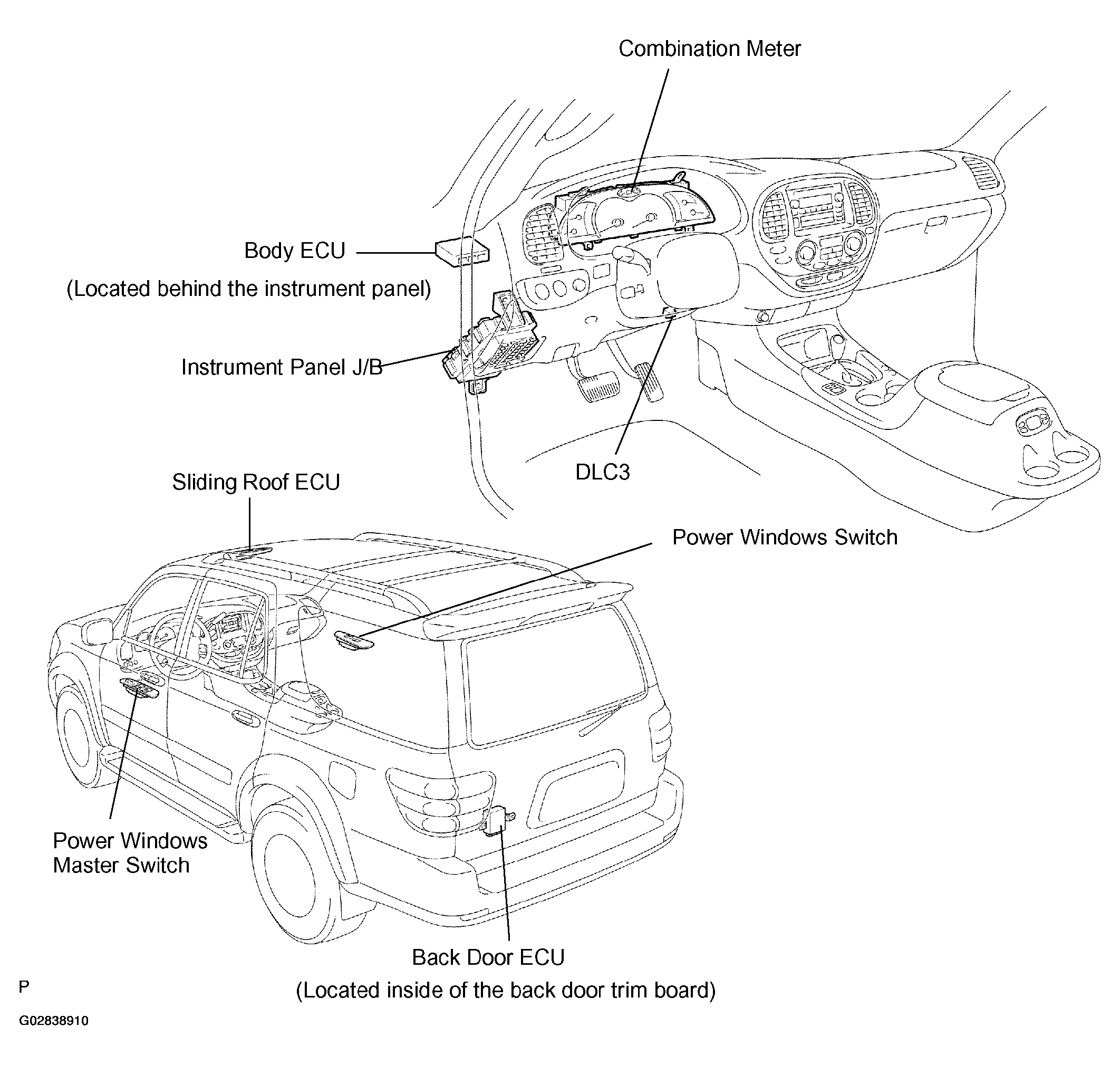

Fig 1: Identifying Multiplex Communication System Parts Location
G02838910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
