Torque Specifications

TORQUE SPECIFICATIONS

Application Ft. Lbs. (N.m)
Accessory Drive Belt Tensioner Bolt/Nut
1ZZ-FE
Bolt 51 (69)
Nut 21 (29)
2ZZ-GE
Bolt 74 (100)
Nut 21 (29)
A/C Compressor Bolt 18 (25)
Axle Shaft Nut 166 (225)
Ball Joint-To-Lower Control Arm Bolt/Nut 105 (142)
Belt Tensioner-To-Cylinder Head
Bolt 74 (100)
Nut 21 (29)
Camshaft Bearing Cap Bolt
1ZZ-FE (1)
2ZZ-GE 14 (19)
Camshaft Sprocket Bolt 40 (54)
Connecting Rod Bolt
1ZZ-FE
Step 1 15 (20)
Step 2 Additional 90 Degrees
2ZZ-GE
Step 1 22 (30)
Step 2 Additional 90 Degrees
Coolant Drain Union
1ZZ-FE 14 (20)
2ZZ-GE 18 (25)
Coolant Temperature Sensor 15 (20)
Crankshaft Pulley Bolt
1ZZ-FE 102 (138)
2ZZ-GE 87 (120)
Cylinder Head Bolt (2)
1ZZ-FE
Step 1 36 (49)
Step 2 Additional 90 Degrees
2ZZ-GE
Step 1 26 (35)
Step 2 Additional 180 Degrees
Drive Belt Tensioner-To-Timing Chain Cover
Bolt
1ZZ-FE 51 (69)
2ZZ-GE 74 (100)
Nut 21 (29)
Drive Belt Idler Pulley 32 (43)
Drive Shaft Heat Insulator Bolt 13 (18)
Engine Coolant Temperature Sensor 15 (20)
Engine Hanger Bolt 28 (38)
Exhaust Manifold Nut
1ZZ-FE 27 (37)
2ZZ-GE 37 (50)
Exhaust Manifold Support Bracket Bolt 37 (50)
Exhaust Pipe 32 (43)
Flywheel/Drive Plate Bolt
A/T 65 (88)
M/T
Step 1 36 (49)
Step 2 Additional 90 Degrees
Front Exhaust Pipe-To-Center Exhaust Pipe Clamp Bolt 24 (33)
Front Exhaust Pipe-To-Exhaust Manifold Bolt 46 (62)
Front (Radiator Side) Engine Mount Bracket-To-Cylinder Block Bolt 57 (77)
Front (Radiator Side) Engine Mount Through-Bolt/Nut 64 (87)
Fuel Rail-To-Cylinder Head Bolt 14 (19)
Generator Mounting Bolt
Small Bolt 18 (24)
Large Bolt 40 (54)
Intake Manifold Bolt/Nut
1ZZ-FE 14 (19)
2ZZ-GE
M8 25 (34)
M10 34 (46)
Intake Manifold Support Stay Bolt 18 (24)
Knock Sensor 29 (39)
Left Side Engine Mount 59 (80)
Left (Transaxle Side) Engine Mount Through-Bolt/Nut 64 (87)
Left (Transaxle Side) Engine Mount-To-Transaxle Bolt 48 (65)
Main Bearing Cap Subassembly-To-Cylinder Block (1ZZ-FE)
12-Point Bolt (3)
Step 1 16 (22)
Step 2 32 (43)
Step 3 Additional 45 Degrees
Step 4 Additional 45 Degrees
6-Point Bolt
1ZZ-FE 14 (19)
Crankshaft Bearing Cap Bolts-To-Cylinder Block (2ZZ-GE)
Step 1 33 (44)
Step 2 Additional 90 Degrees
Other Bolts 14 (19)
Oil Control Valve Filter 22 (29)
Oil Filter Union 22 (30)
Oil Pan Drain Plug 27 (37)
Oxygen Sensor-To-Front Exhaust Pipe Nut 15 (20)
Power Steering Gear Bolt 33 (45)
Power Steering Pump Bolt/Nut 27 (37)
Power Steering Pump Pulley Nut 32 (43)
Rear Engine Mount-To-Transaxle Bolt 47 (64)
Rear Engine Mount Bracket-To-Cylinder Block Bolt 57 (77)
Rear Engine Mount Through-Bolt/Nut 64 (87)
Rear Suspension Member Bolts 38 (52)
Rear Suspension Upper Brace Bolts & Nuts 59 (80)
Relief Valve Plug 27 (37)
Right (Timing Chain Side) Engine Mount Bracket-To-Cylinder Block Bolt
1ZZ-FE 35 (47)
2ZZ-GE 36 (49)
Right (Timing Chain Side) Engine Mount Insulator-To-Body Bolt
Large Bolt 47 (64)
Small Bolt 38 (52)
Right (Timing Chain Side) Engine Mount Insulator-To-Engine Mount Bracket Bolt/Nut
Bolt 47 (64)
Nut 38 (52)
Spark Plug 18 (25)
Support Bracket-To-Left (Transaxle Side) Engine Mount Bolt 15 (20)
Throttle Body Bolt/Nut 15 (20)
Tie Rod-To-Steering Knuckle Nut 36 (49)
Timing Chain Cover Bolt/Nut & Stud Bolt
1ZZ-FE (4)
2ZZ-FE
M6 Bolt 8 (11)
M8 Bolt 15 (21)
Timing Chain Tensioner Slipper Bolt
1ZZ-FE 14 (19)
2ZZ-GE 15 (20)
Timing Chain Vibration Damper
1ZZ-FE 8 (11)
2ZZ-GE 15 (21)
Valve Timing Controller Assembly
1ZZ-FE 33 (45)
2ZZ-GE 40 (54)
Water Pump Bolt (5)
Wheel Lug Nut 76 (103)
INCH Lbs. (N.m)
ABS Speed Sensor Bolt 71 (8)
Air Cleaner Assembly Bolt 60 (7)
Camshaft Position Sensor Bolt 80 (9)
Chain Tensioner-To-Timing Chain Cover Bolt 80 (9)
Clutch Release Cylinder Bolt 106 (12)
Coolant Bypass Pipe
1ZZ-FE 80 (9)
2ZZ-GE
Bolt 75 (8.5)
Nut 89 (10)
Coolant Inlet Housing Nut 80 (9)
Crankshaft Position Sensor Bolt 80 (9)
Fuel Pipe Clamp-To-Cylinder Head Bolt 80 (9)
Heat Insulator-To-Exhaust Manifold Bolt 106 (12)
Ignition Coil-To-Cylinder Head Bolt/Nut 80 (9)
Oil Control Valve 80 (9)
Oil Pan Baffle 80 (9)
Oil Pan Bolt/Nut 80 (9)
Oil Pressure Switch 80 (9)
Oil Pump Body Cover Screw 93 (10.5)
Oil Pump Pick-Up Tube Bolt/Nut 80 (9)
Oil Pump-To-Cylinder Block Bolt 80 (9)
Radio Setting Condenser 89 (10)
Rockers-To-Cylinder Head Bolt 66 (7.5)
Timing Chain Cover-To-Cylinder Head Bolts
10 mm Bolt 89 (10)
10 mm Nut 97 (11)
Stud 84 (9.5)
Timing Chain Cover-To-Cylinder Block Bolts
10 mm 97 (11)
12 mm (6)
Valve Cover Bolt/Nut (7)
1ZZ-FE
With Washer 80 (9)
Without Washer 97 (11)
2ZZ-GE 89 (10)
Ventilation Pipe
At Cylinder Head 89 (10)
At Intake Manifold (8)
Water Bypass Pipe 80 (9)
Wiring Harness-To-Cylinder Head Bolt 80 (9)
(1) Tighten bolts to specification in sequence. See Fig 3. Tighten bolts on front camshaft bearing cap to 17 ft. lbs. (23 N.m). Tighten bolts for all other camshaft bearing caps to 115 INCH lbs. (13.0 N.m).
(2) Tighten bolts to specification in sequence. See Fig 4.
(3) Tighten bolts to specification in sequence. See Fig 5.
(4) On 1ZZ-FE engines, tighten all bolts with 12-mm head to 14 ft. lbs. (19 N.m). Tighten bolt "A" with 10-mm head to 115 INCH lbs. (13 N.m). See Fig 6. Tighten bolt "C" with 10-mm head to 80 INCH lbs. (9.0 N.m). Tighten all others to 97 INCH lbs. (11.0 N.m).
(5) Tighten bolt "B" to 97 INCH lbs. (11.0 N.m) and bolt "C" to 80 INCH lbs. (9.0 N.m). See Fig 6.
(6) Tighten to 14 Ft. Lbs (18.5 N.m).
(7) Tighten bolts to specification in sequence. See Fig 7.
(8) Tighten to 18 Ft. Lbs (25 N.m).

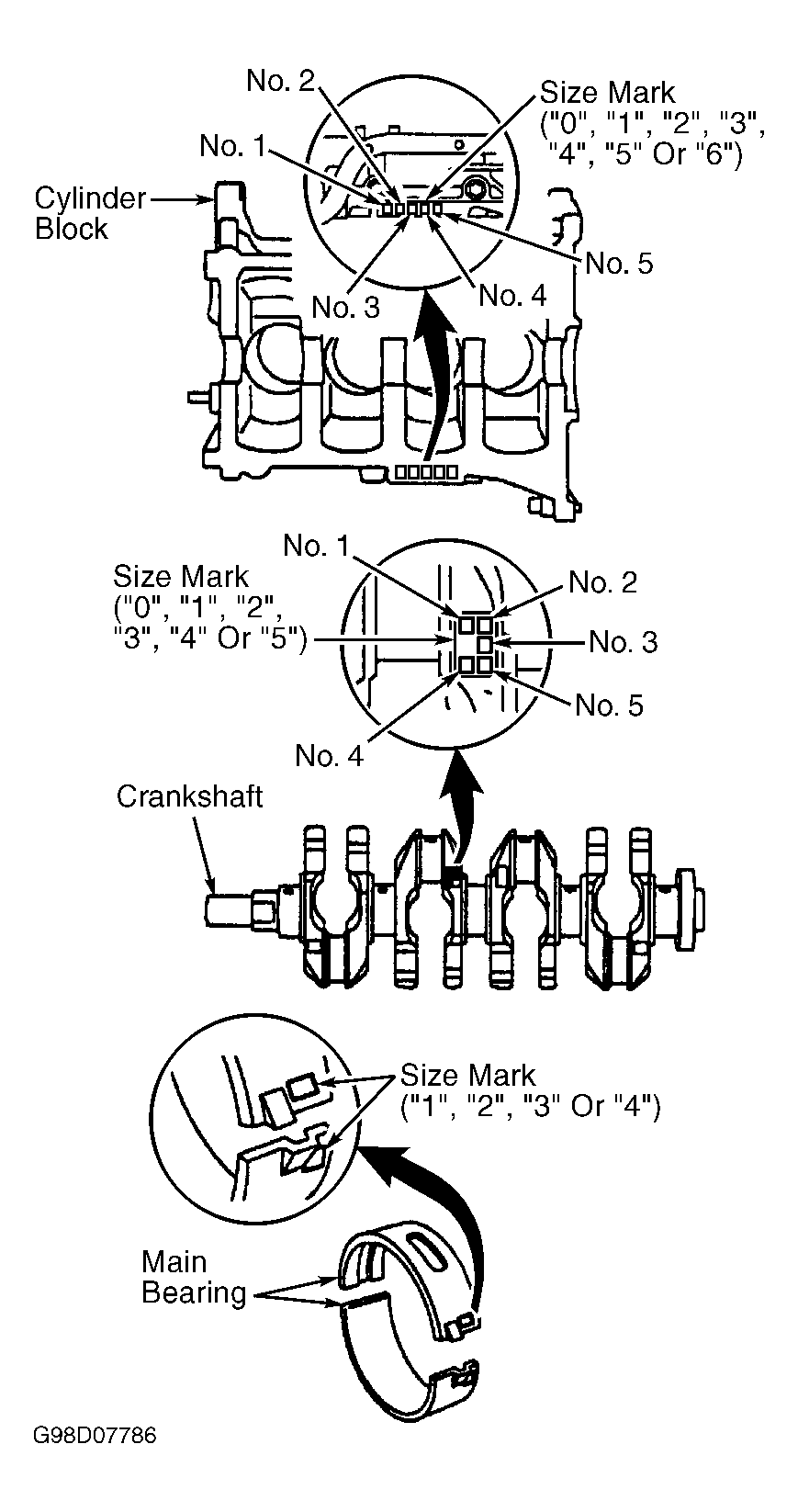

Fig 1: Locating Cylinder Block, Crankshaft & Main Bearing Size Marks (1ZZ-FE)
G98D07786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

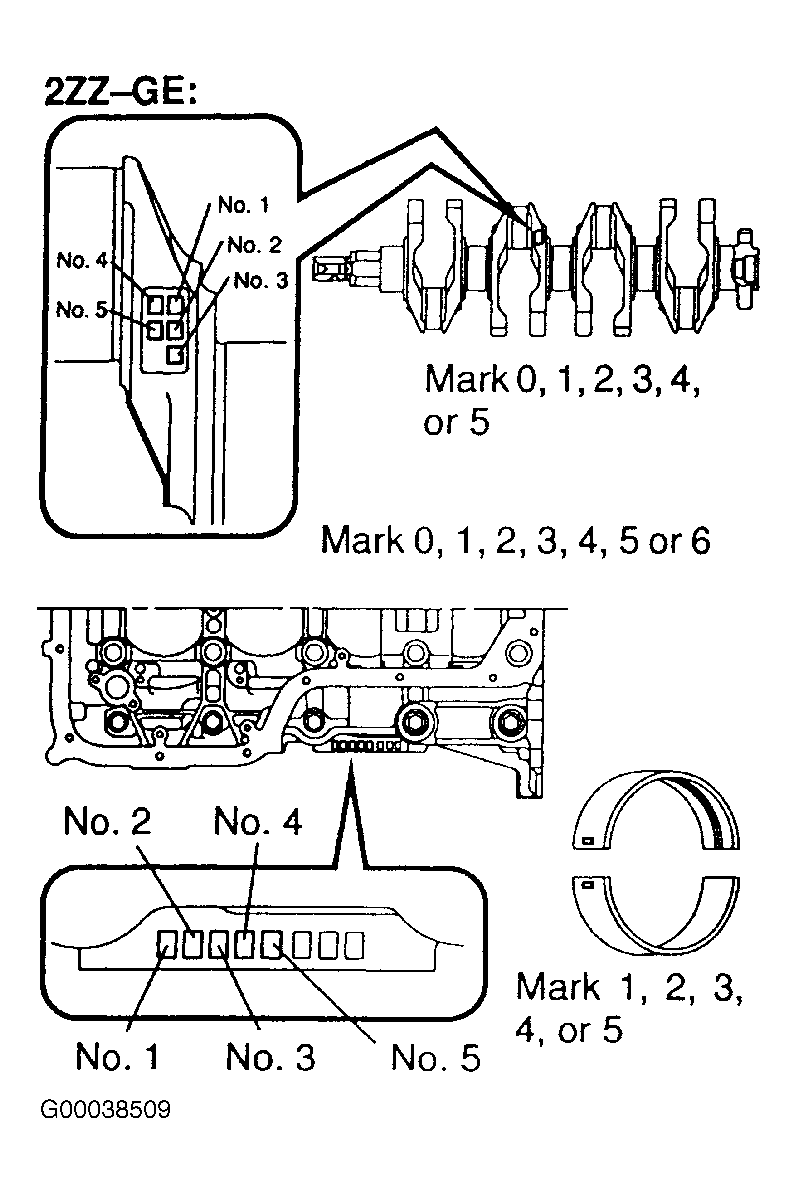

Fig 2: Locating Cylinder Block, Crankshaft & Main Bearing Size Marks (2ZZ-GE)
G00038509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

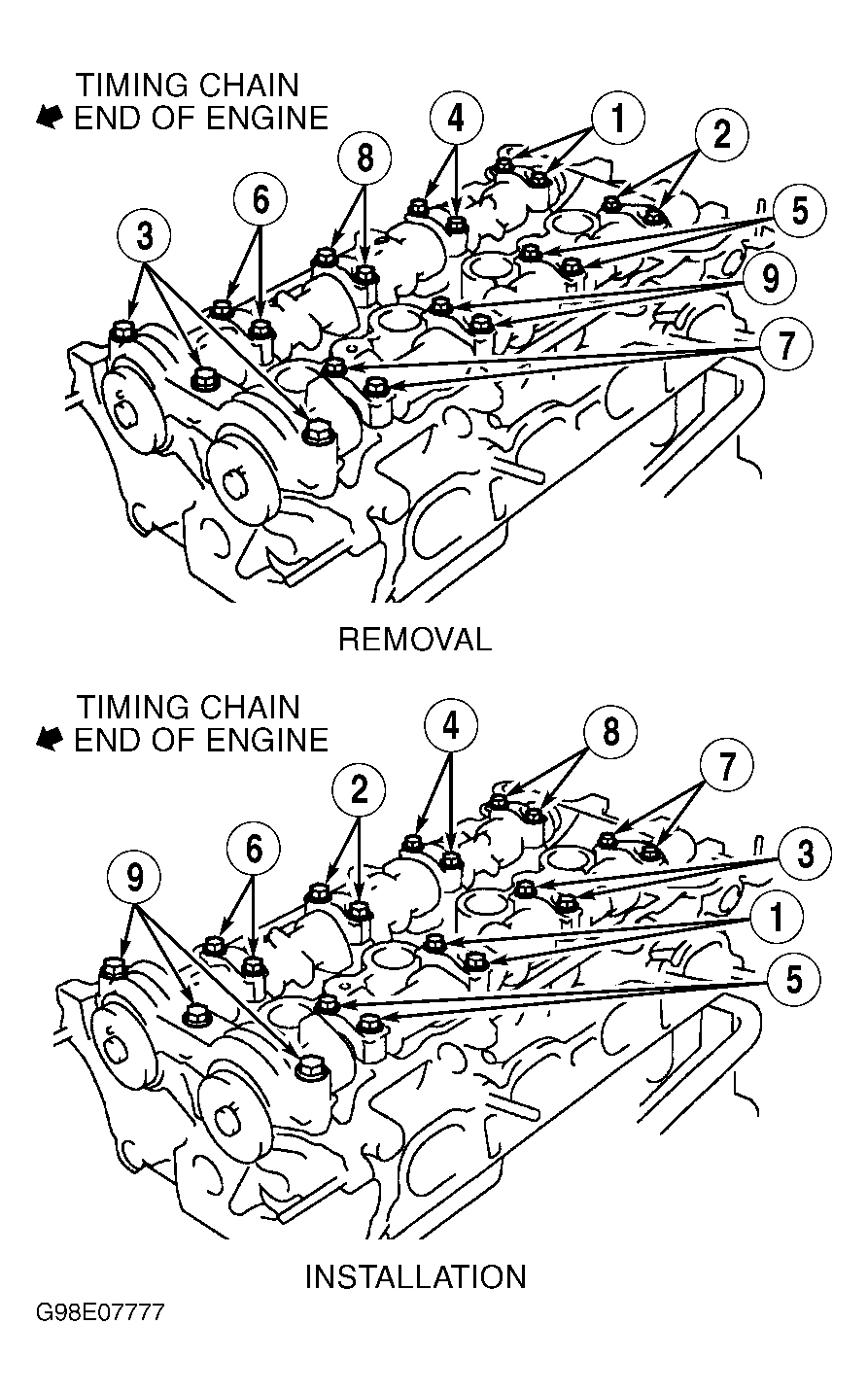

Fig 3: Identifying Camshaft Bearing Cap Bolt Removal & Installation Sequence (1ZZ-FE Shown: 2ZZ-GE Similar)
G98E07777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

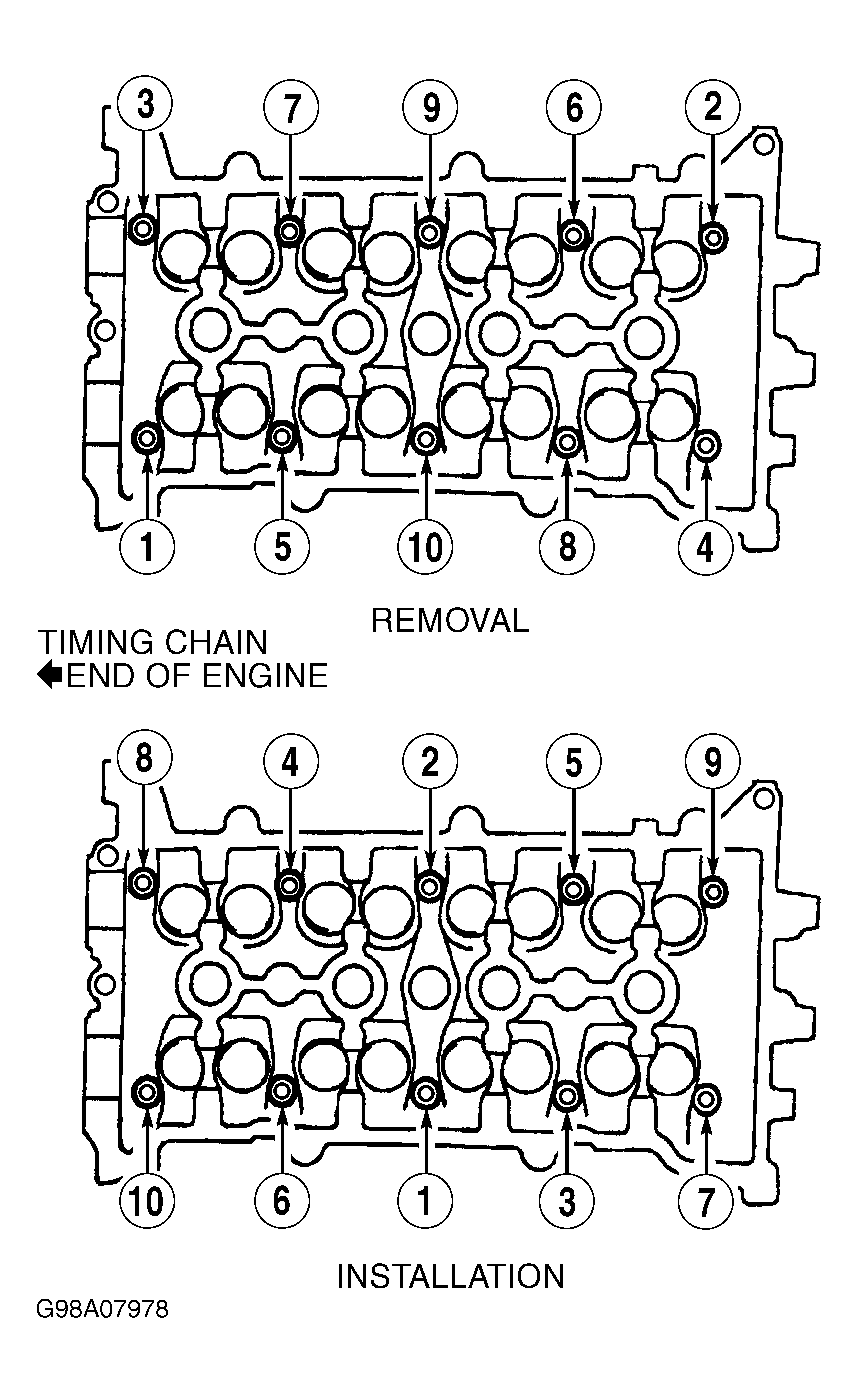

Fig 4: Identifying Cylinder Head Bolt Removal & Installation Sequence
G98A07978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying Main Bearing Cap Subassembly Bolt Removal & Installation Sequence (1ZZ-FE Shown: 2ZZ-GE Similar)
G98I07784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

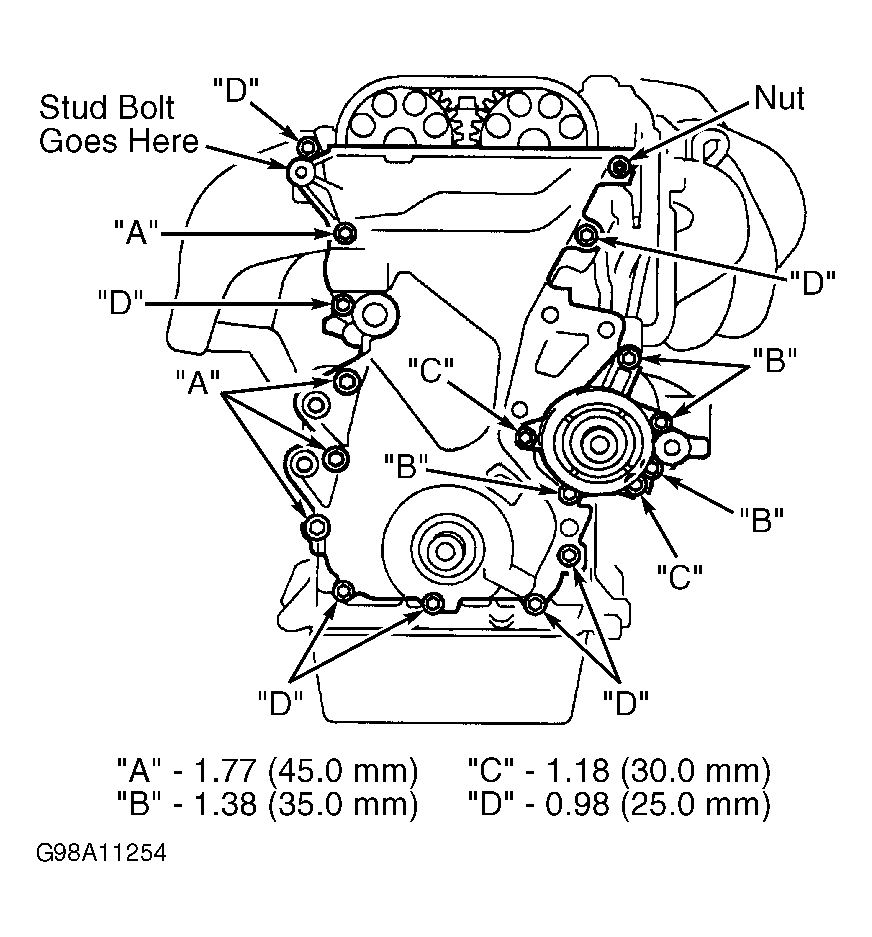

Fig 6: Identifying Timing Chain Cover & Water Pump Bolt Location & Length (1ZZ-FE)
G98A11254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Identifying Valve Cover Bolt/Nut Installation Sequence
G98B11222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
