Input Shaft ASSY (C59): Components

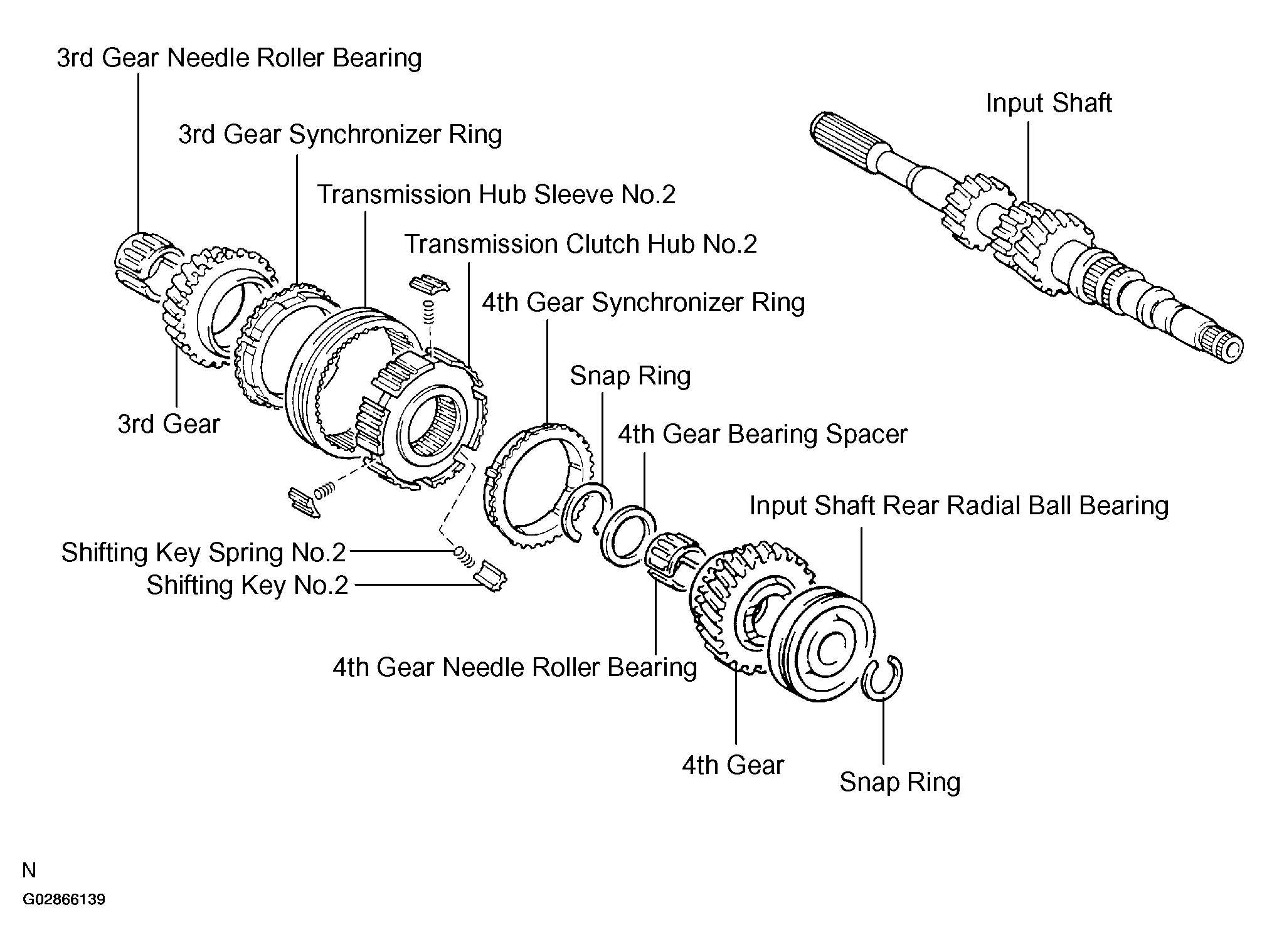

Fig 1: Exploded View Of Input Shaft Assembly (C59)

G02866139

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
