Fluid Temperature Sensor (RAV4): Installation
WARNING: This page does not describe the selected car, but rather 29 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota RAV4, and 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

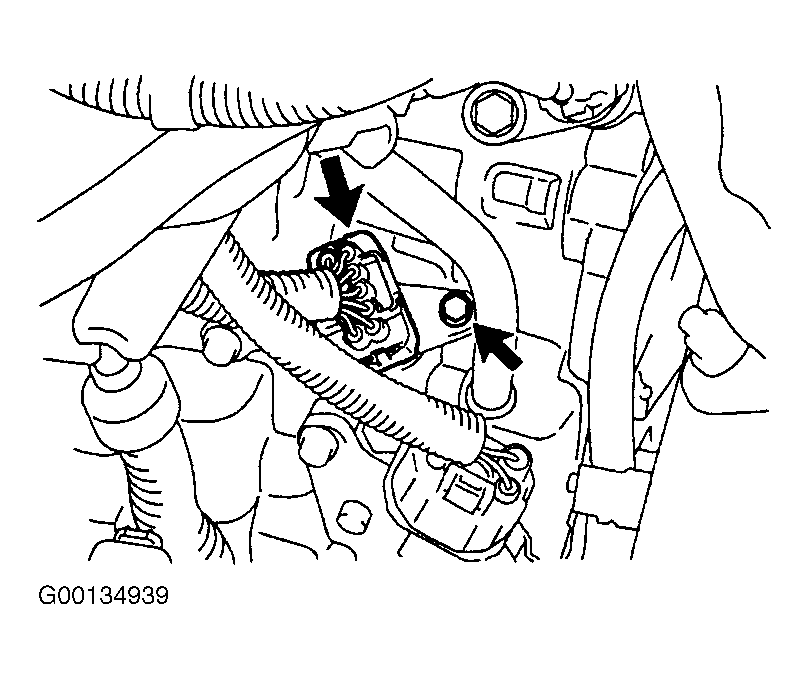

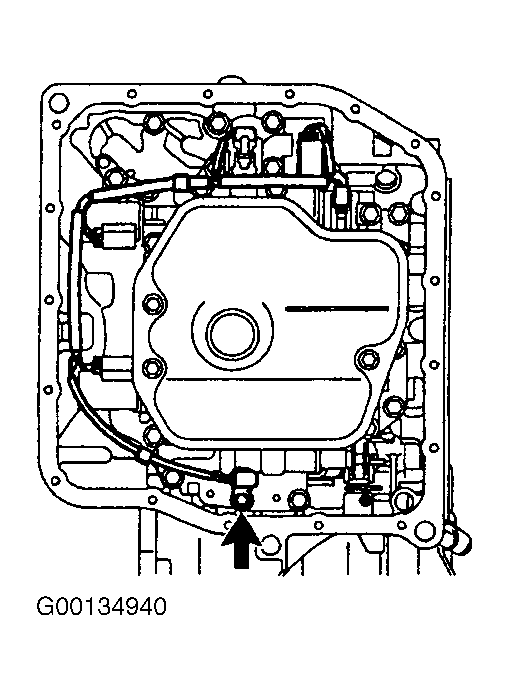

Clamp wiring harness to the 2 clamps. Install the temperature sensor with the lock plate and bolt. Tighten to specification. See TORQUE SPECIFICATIONS . Connect the 5 shift solenoid connectors. Install the oil pan. Install solenoid wiring harness retainer bolt. Install solenoid connector and install left side engine undercover. Fill transmission with correct fluid to proper level. See DRAINING & REFILLING under LUBRICATION.
