Valve Body Assembly: Installation

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install manual valve.
  2. Install detent spring. Tighten to specification. See TORQUE SPECIFICATIONS .
  3. Install solenoid valves using the following steps:
    1. Install 3 new "O" rings to solenoid valves.
    2. Install solenoid valve and lock plate with bolt. See Fig 1.
    3. Install 3 solenoid valves with 2 bolts. Tighten to specification. See TORQUE SPECIFICATIONS .
  4. Install valve body using the following steps:
    1. Align groove of the manual valve with pin of lever. See Fig 2.
    2. Install valve body and bolts. See Fig 3. Tighten to specification. See TORQUE SPECIFICATIONS .
  5. Connect 4 connectors to solenoid valves.
  6. Install oil filter. See DRAINING & REFILLING  under LUBRICATION.
  7. Install oil pan and bolts. See DRAINING & REFILLING  under LUBRICATION. Tighten to specification.
  8. Fill and inspect automatic transmission fluid. See DRAINING & REFILLING  under LUBRICATION.

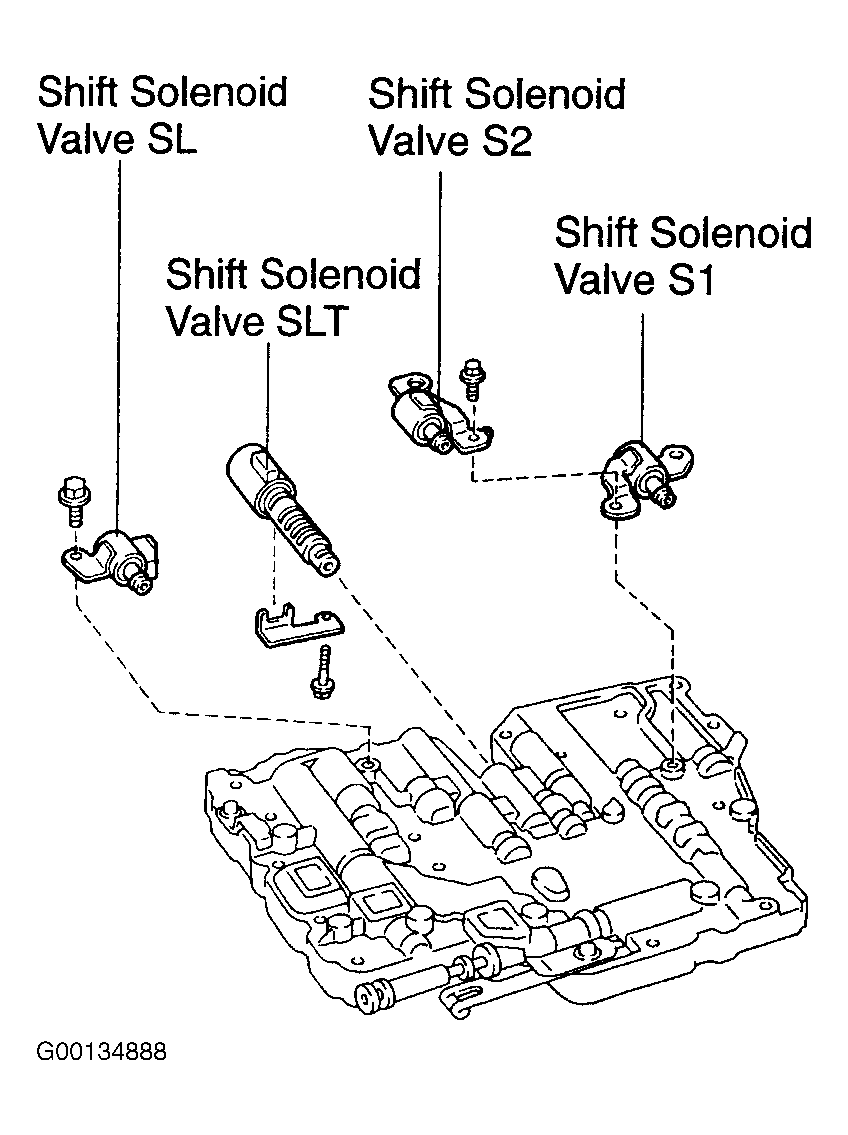

Fig 1: Removing & Installing Solenoid Valves In Valve Body
G00134888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Aligning Manual Valve Groove With Pin
G00132027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Removing & Installing Valve Body Bolts
G00134887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
