Park/Neutral Position Switch: Installation
WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
- Install PNP switch and bolt. Tighten to specification. See TORQUE SPECIFICATIONS .
- Install a NEW lock plate and nut. Tighten to specification.

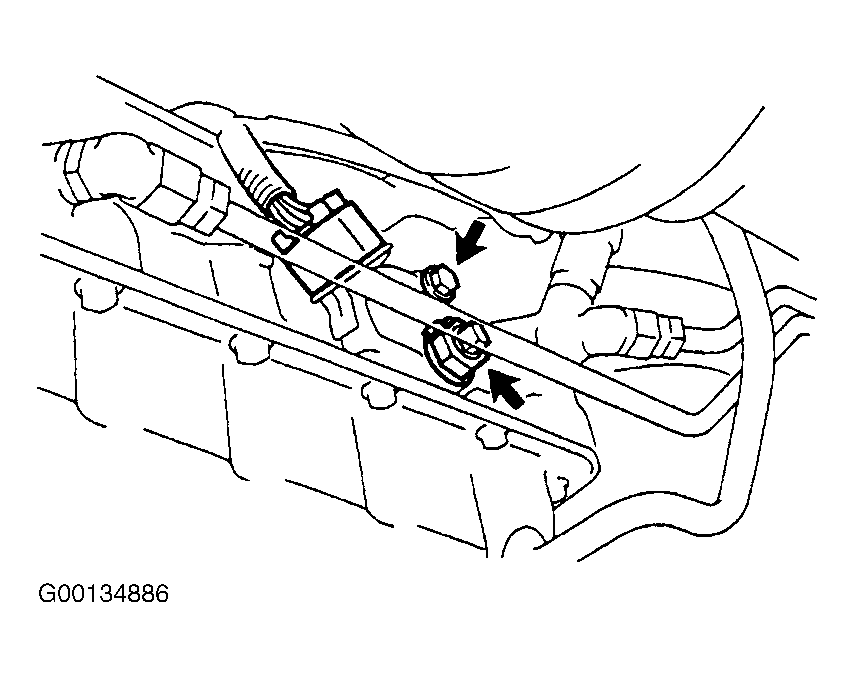

- Bend claws on lock plate to hold nut in place. See Fig 2.
- Connect PNP switch connector.
- Check PNP switch operation. See PARK/NEUTRAL POSITION SWITCH under ADJUSTMENTS.

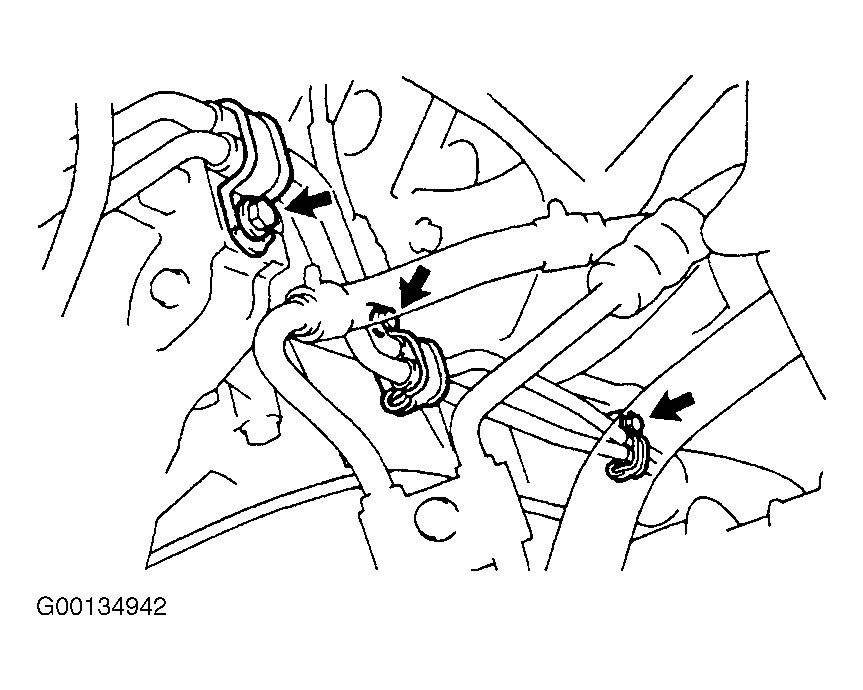

- Connect oil cooler pipes and install 3 bolts and clamps. See Fig 1.
