DTC P0420: Catalyst System Efficiency Below Threshold (Bank No. 1)
>>
Confirmation Driving Pattern
Confirmation Driving Pattern
For confirmation driving pattern, see
Fig 1
.

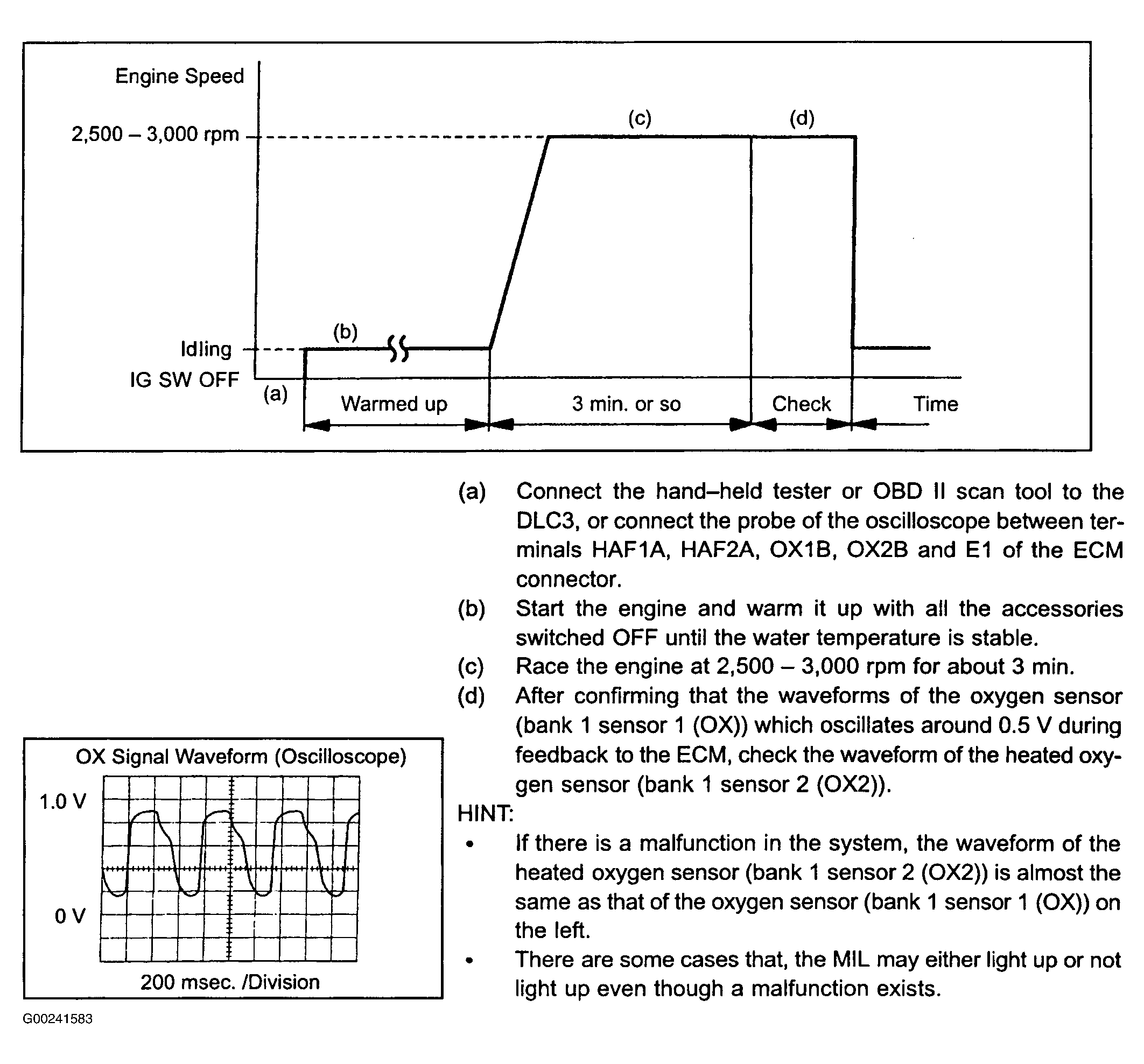

Fig 1: DTC P0420 Confirmation Driving Pattern
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
