Circuit Description & Possible Causes

For circuit description and possible causes, see Fig 1.

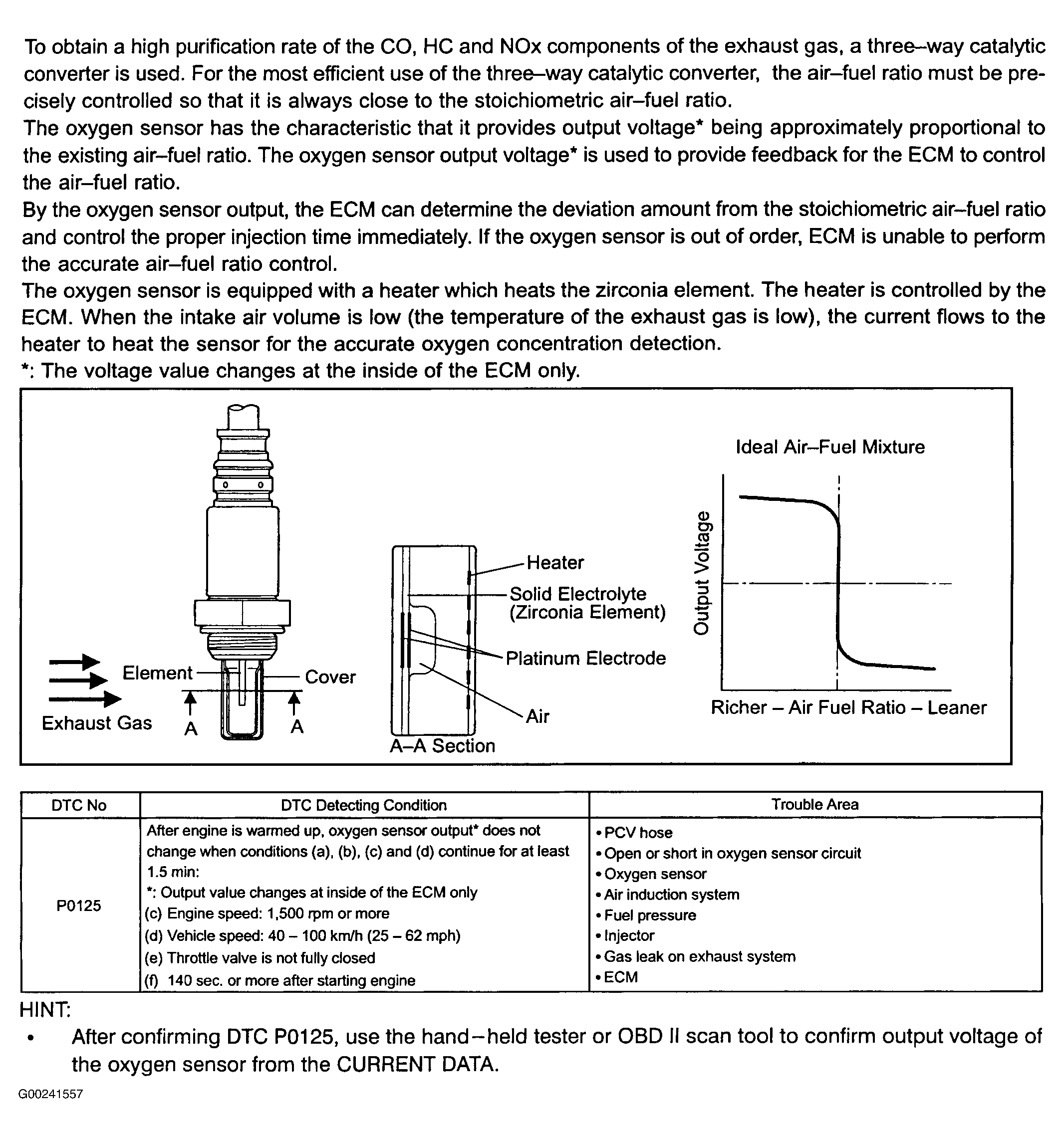

Fig 1: DTC P0125 Circuit Description & Possible Causes

G00241557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
