DTC C1249/49: Open Circuit In Stop Light Switch Circuit: Wiring Diagram

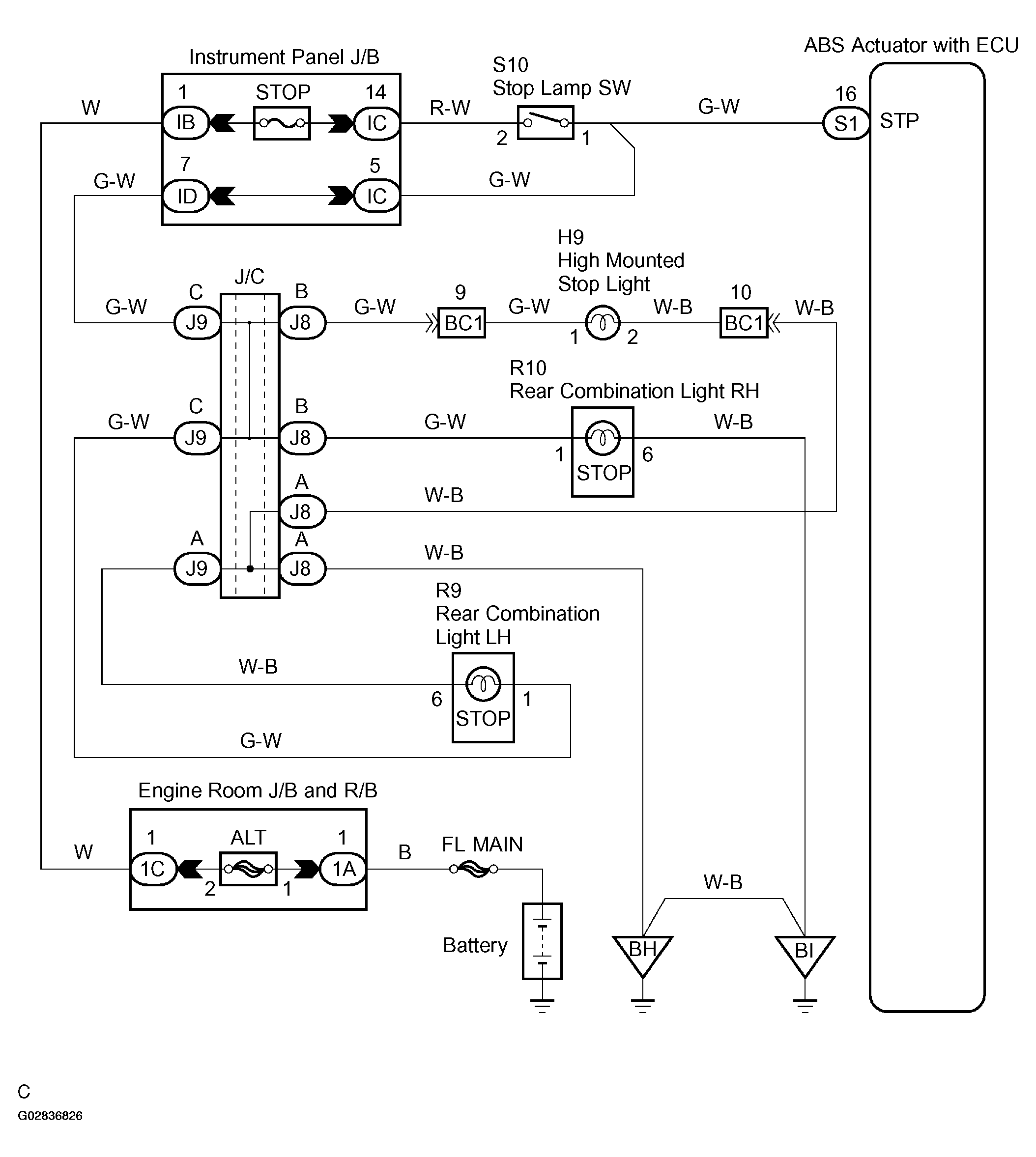

Fig 1: Identifying Wiring Diagram

G02836826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
