Map Disc Cannot Be Inserted: Wiring Diagram

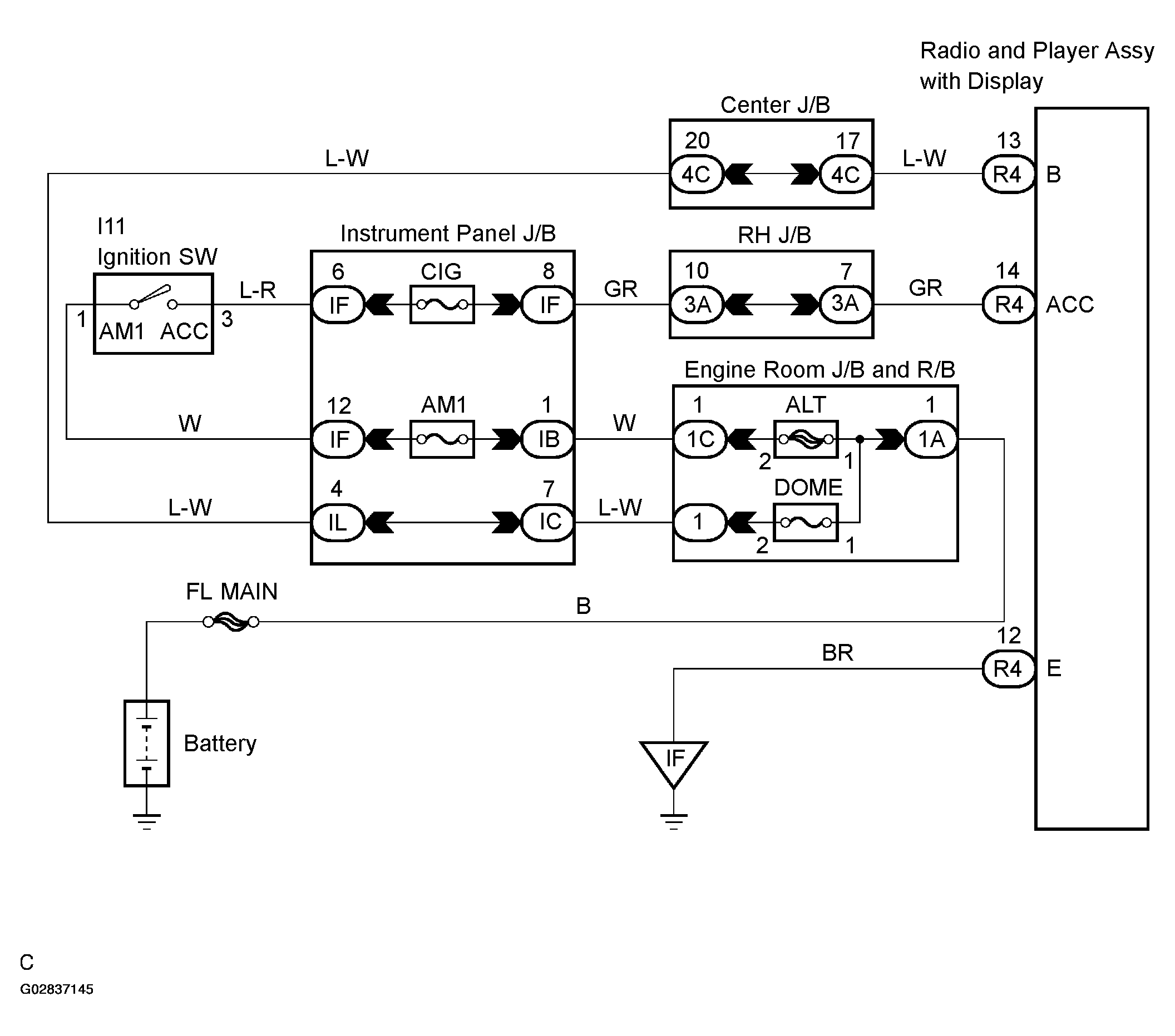

Fig 1: Wiring Diagram - Radio & Player Assy (Map Disc Not Inserting)

G02837145

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
