Headlight And Taillight System: Location

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

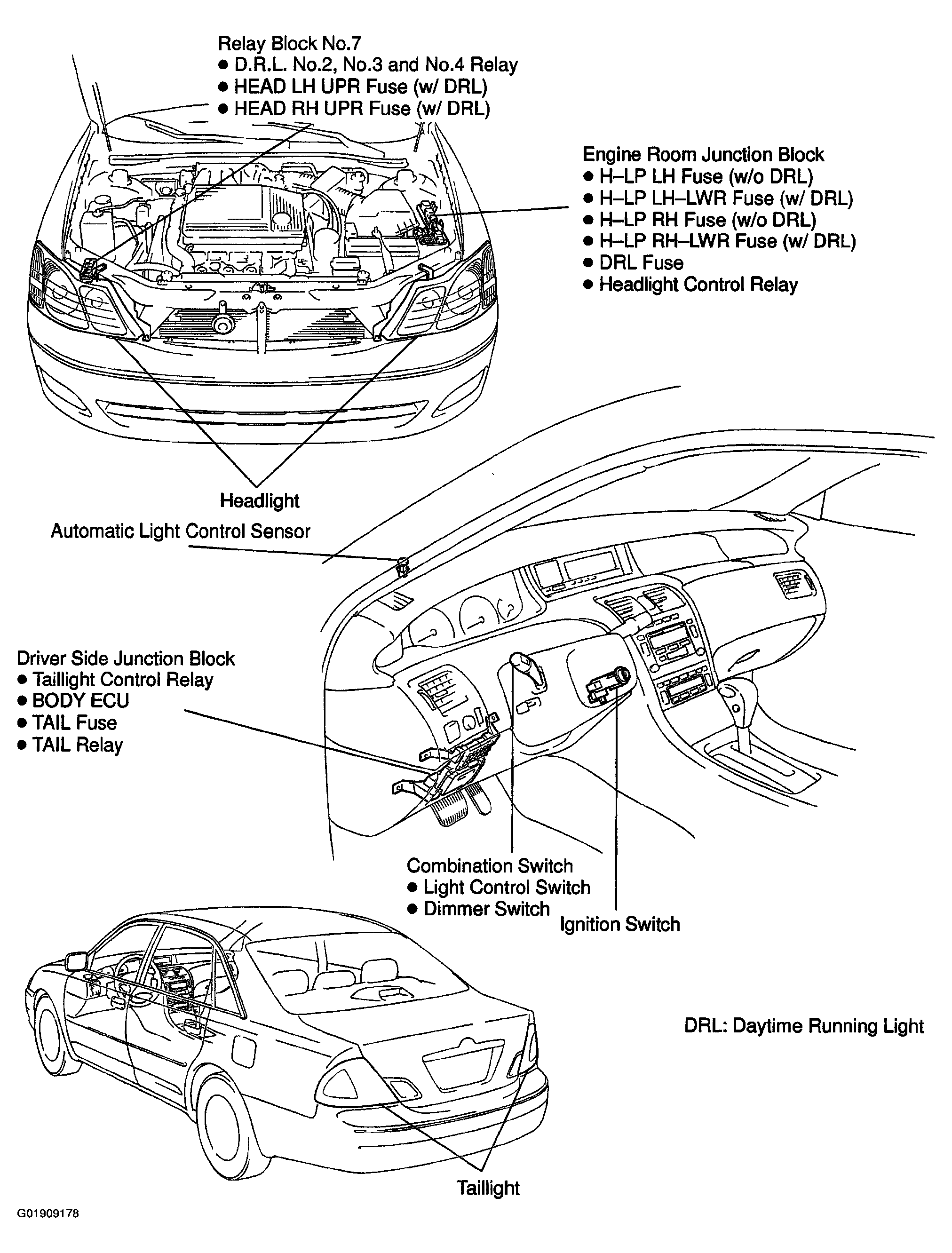

Fig 1: Locating Headlight And Taillight System Components (1 Of 2)
G01909178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Locating Headlight And Taillight System Components (2 Of 2)
G01909179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
