Headlight And Taillight System: Adjustment

WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust headlight aiming  :

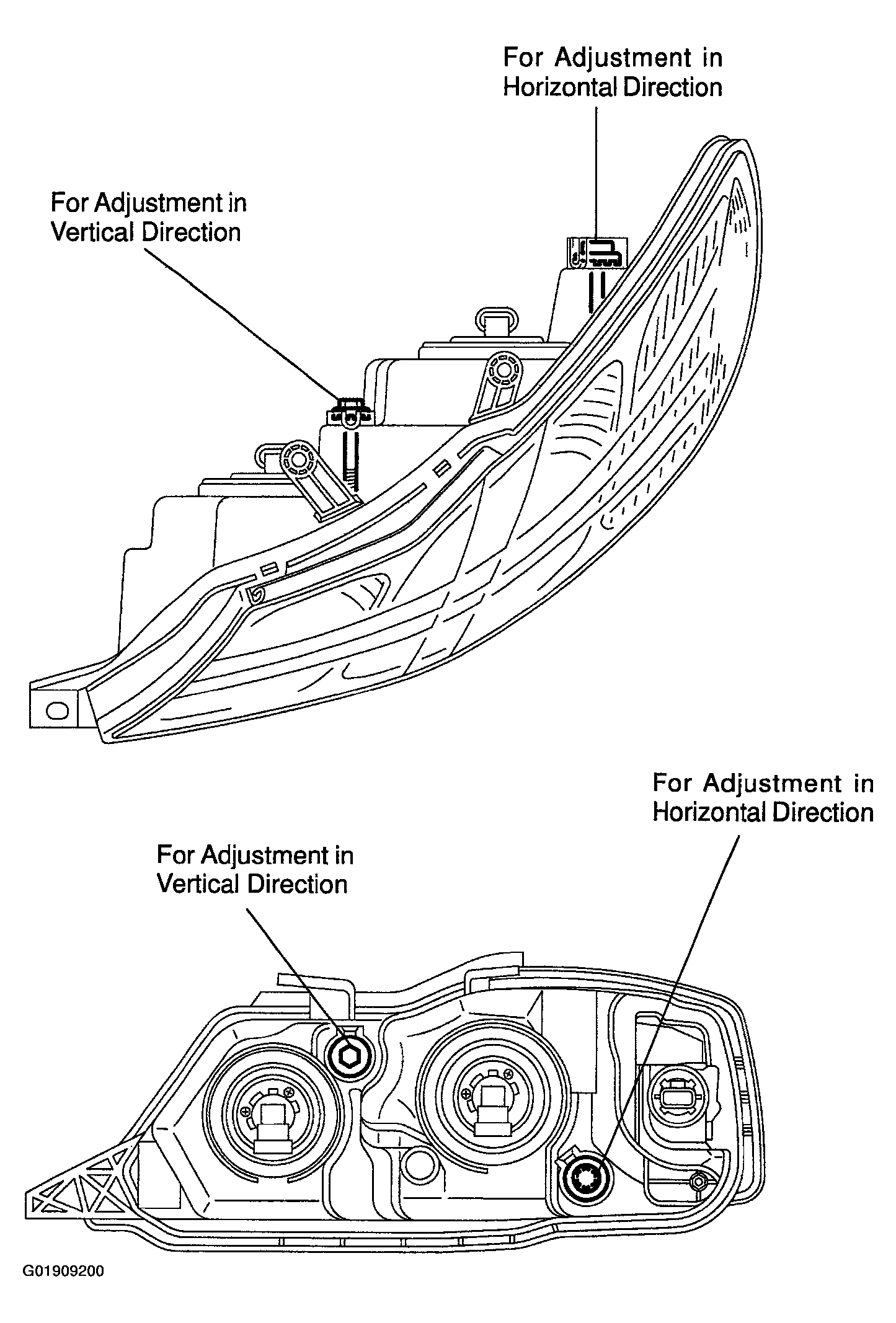

    Fig 1: Identifying & Locating Headlight Aiming Adjustment Bolts
    G01909200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Adjust headlight aim only
    1. Place the vehicle in the following conditions.
      • The area around the headlight is not deformed.
      • The vehicle is parked on a level surface.
      • Tire inflation pressure is the specified value.
      • A driver is in the driver's seat and the vehicle is in a state ready for driving (with a tank full).
      • The vehicle has been bounced several times.
    2. Check the headlight aiming.
      1. Prepare a thick white paper.
      2. Stand the paper perpendicular to the ground at the position 9.84 ft away from the headlights.
      3. Ensure that the center line of the vehicle and the paper face forms a 90-degree angle as shown in the illustration. See Fig 2.
        4. NOTE: Steps 4 Through 7 are identified in graphic, see Fig 2.
      4. Draw a horizontal line (H line) on the paper, showing where the headlights should strike.
      5. Draw a vertical line (V line) to where the center line of the vehicle is to be.
      6. Draw 2 vertical lines (by connecting the low and high beam center marks) to where the both headlights should strike (V RH and V LH lines).
        7. NOTE: The H RH and H LH line is 0.4° below the horizontal line (H line) of the light axis.

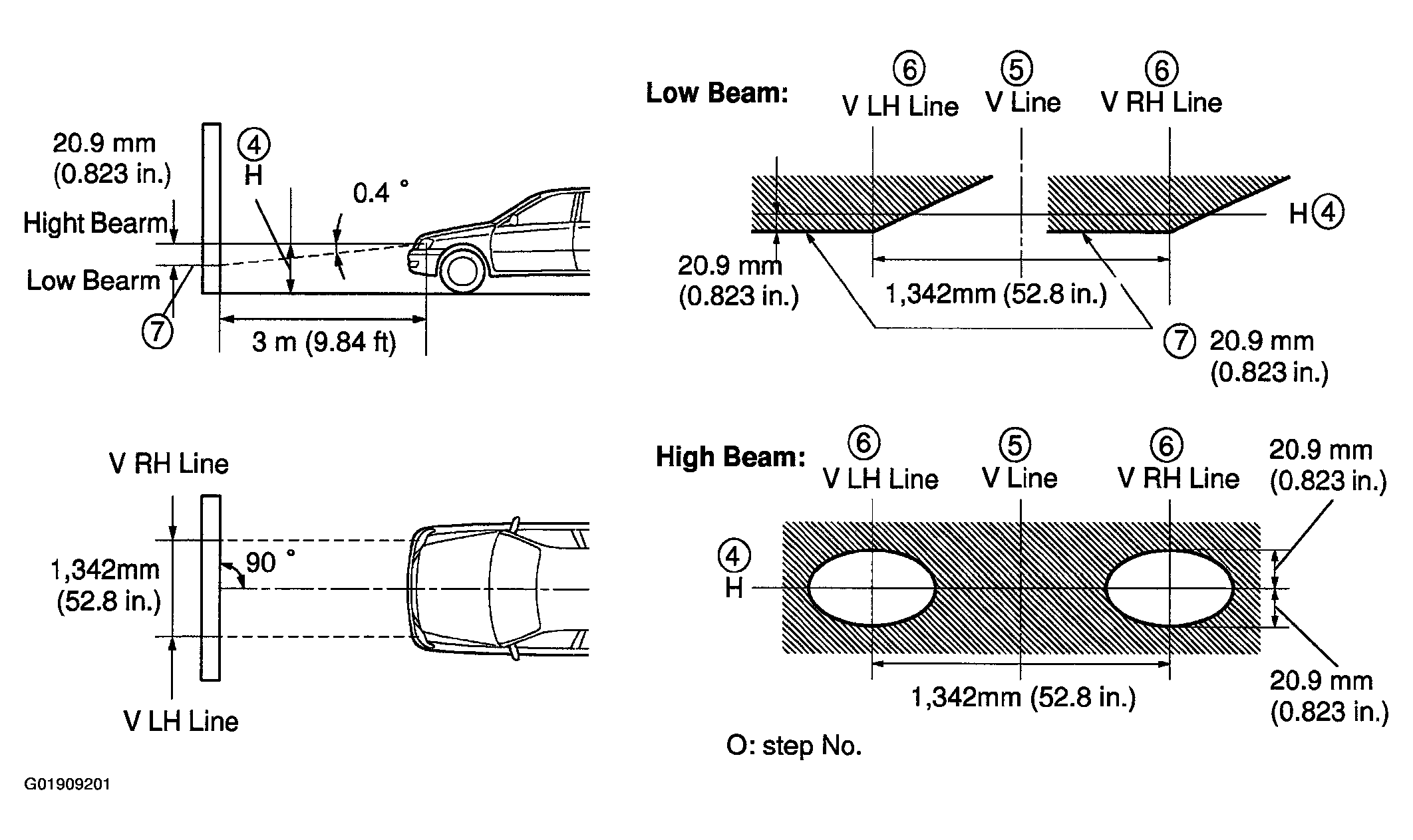

        Fig 2: Headlight Aiming Procedures & Specifications
        G01909201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Draw a horizontal line (by connecting the both low beam center marks) to where the headlights should strike (H RH and H LH lines).

        As shown in the illustration, adjust each aim of the RH and LH lights.

      8. Start the engine.
      9. Turn the headlights ON.
      10. Check that the headlights properly strike the position shown in the illustration. See Fig 2.
      11. If not, adjust the lights in the vertical or horizontal direction.
      12. When adjusting it in the vertical direction: using adjusting bolt A, adjust the headlight aim to within the specified range.
      13. When adjusting it in the horizontal direction: using adjusting bolt B. adjust the headlight aim to within the specified range.
