Throttle Body: Tacoma

For throttle body inspection, see Fig 1-Fig 2 .

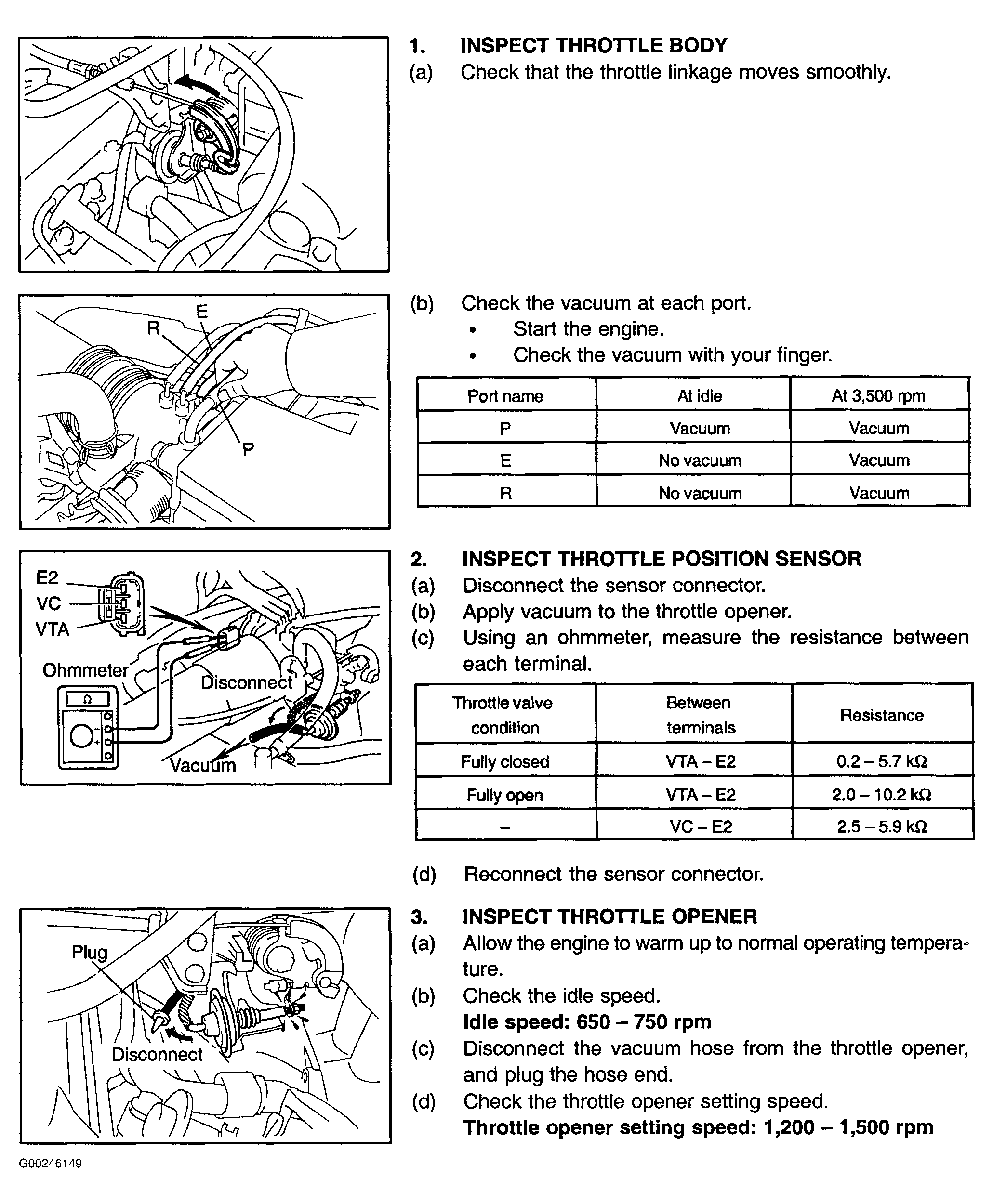

Fig 1: Inspecting Throttle Body - 1 Of 2 (Tacoma)
G00246149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

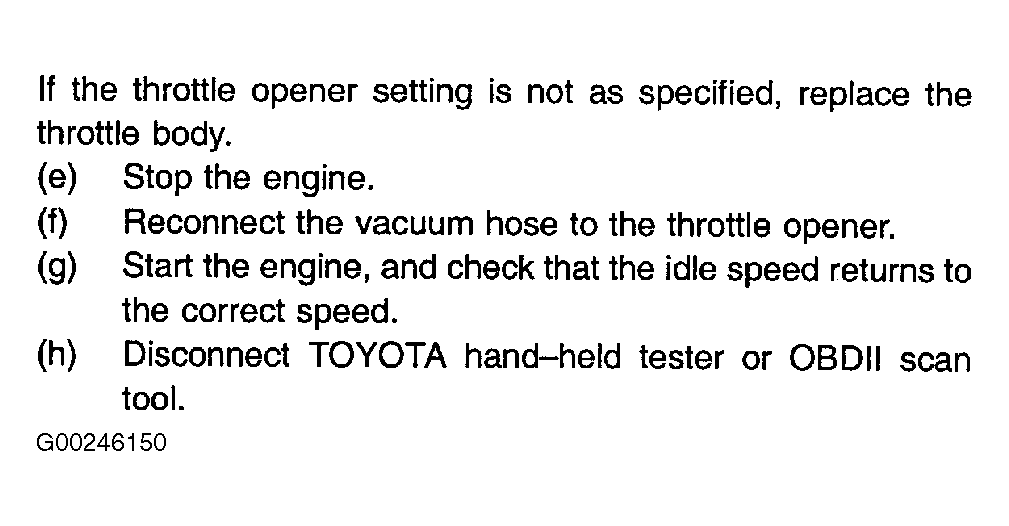

Fig 2: Inspecting Throttle Body - 2 Of 2 (Tacoma)
G00246150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
