Wireless Door Lock Control System - Diagnostics
>>
Location
Wireless Door Lock Control System - Diagnostics: Location

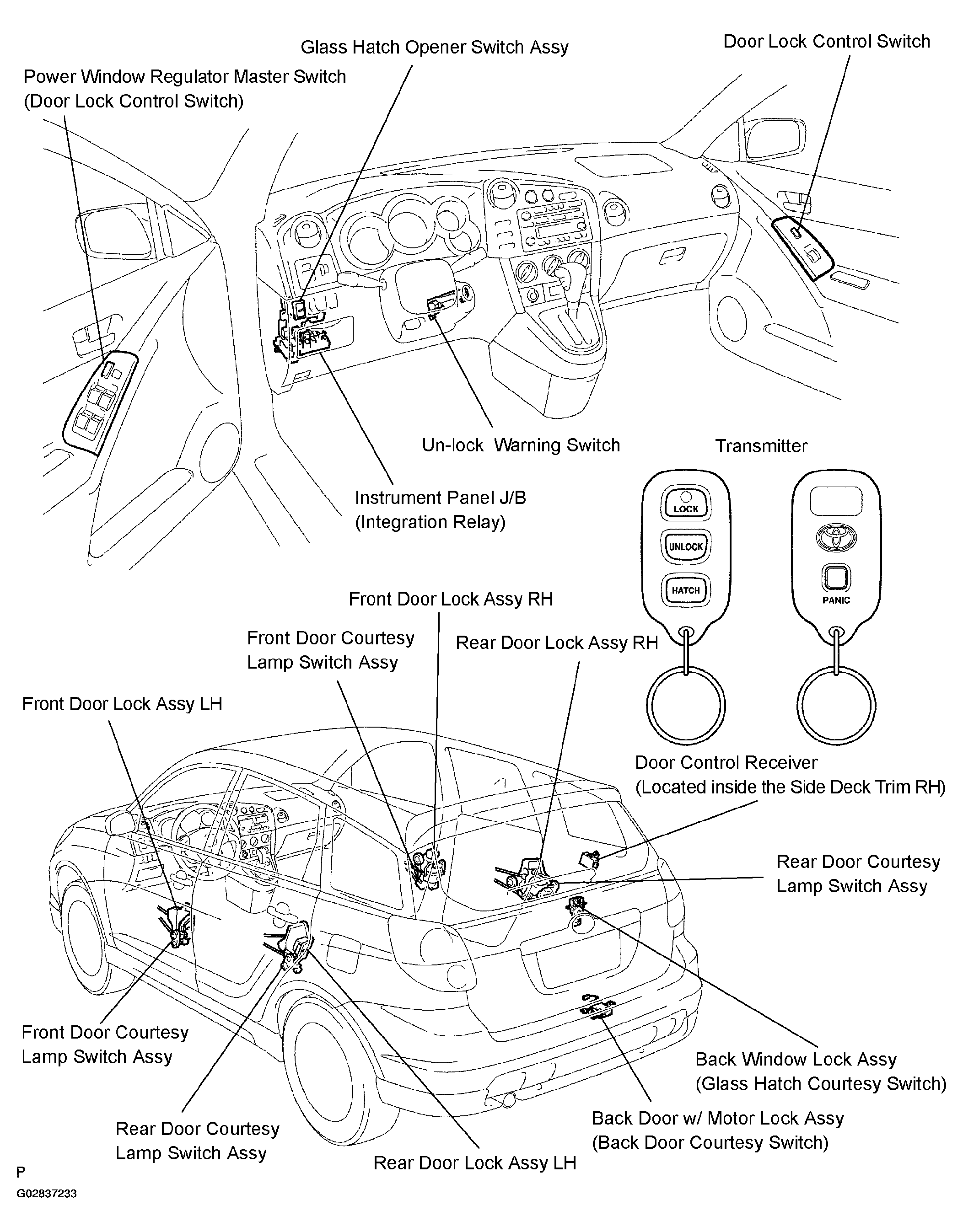

Fig 1: Identifying Wireless Door Lock Control System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
