Vehicle Intrusion Protection System - Diagnostics: Location

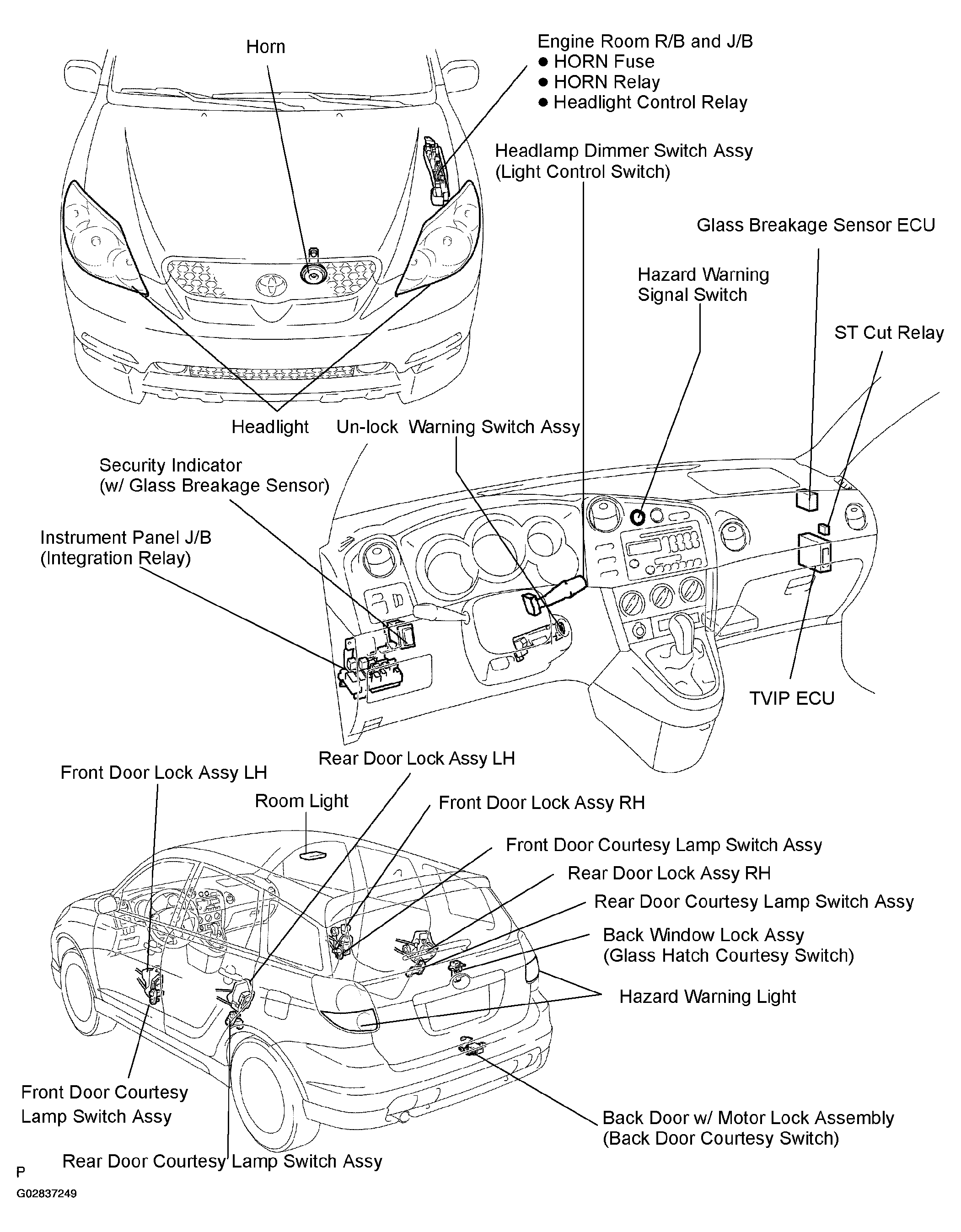

Fig 1: Identifying Toyota Vehicle Intrusion Protection System Components Location

G02837249

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
