Home >> Toyota >> 2003 >> Matrix Base, FWD, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Navigation System - Diagnostics >> Location

Navigation System - Diagnostics: Location

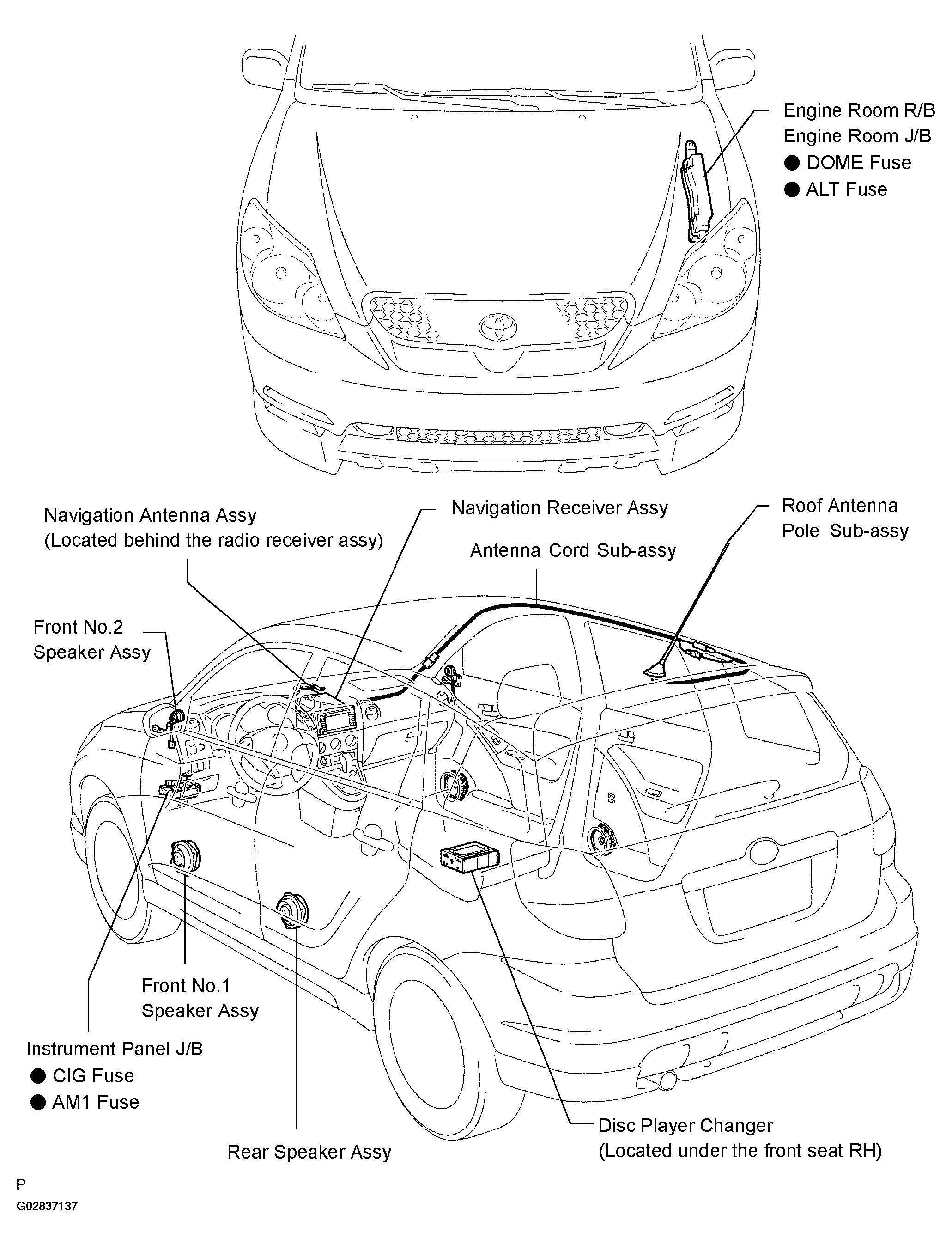

Fig 1: Identifying Navigation System Components Location
G02837137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
