Power Door Lock Control System - Diagnostics: Location: Notes

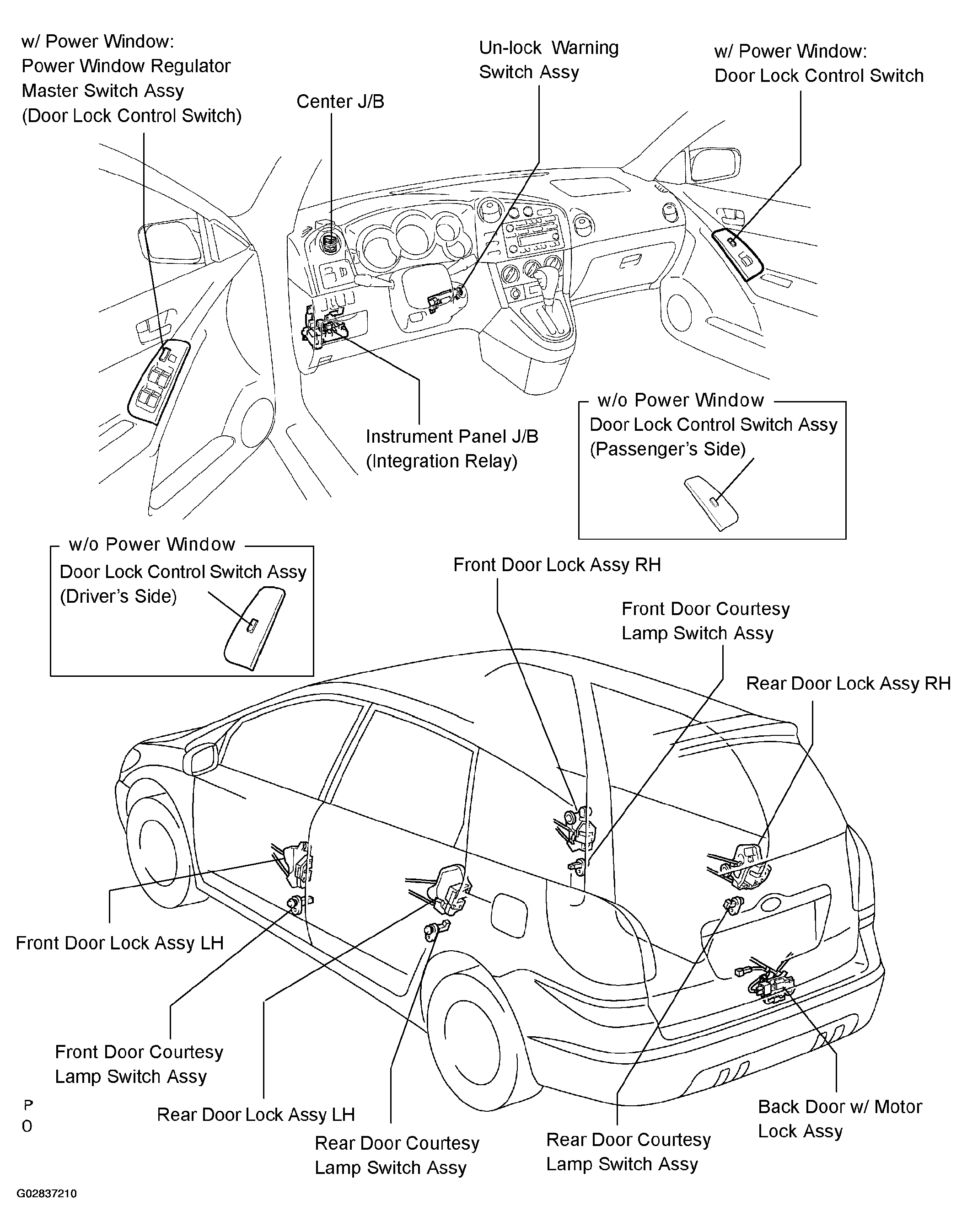

Fig 1: Identifying Power Door Lock Control System Components

G02837210

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
