Door Unlock Detection Switch Circuit: Wiring Diagram

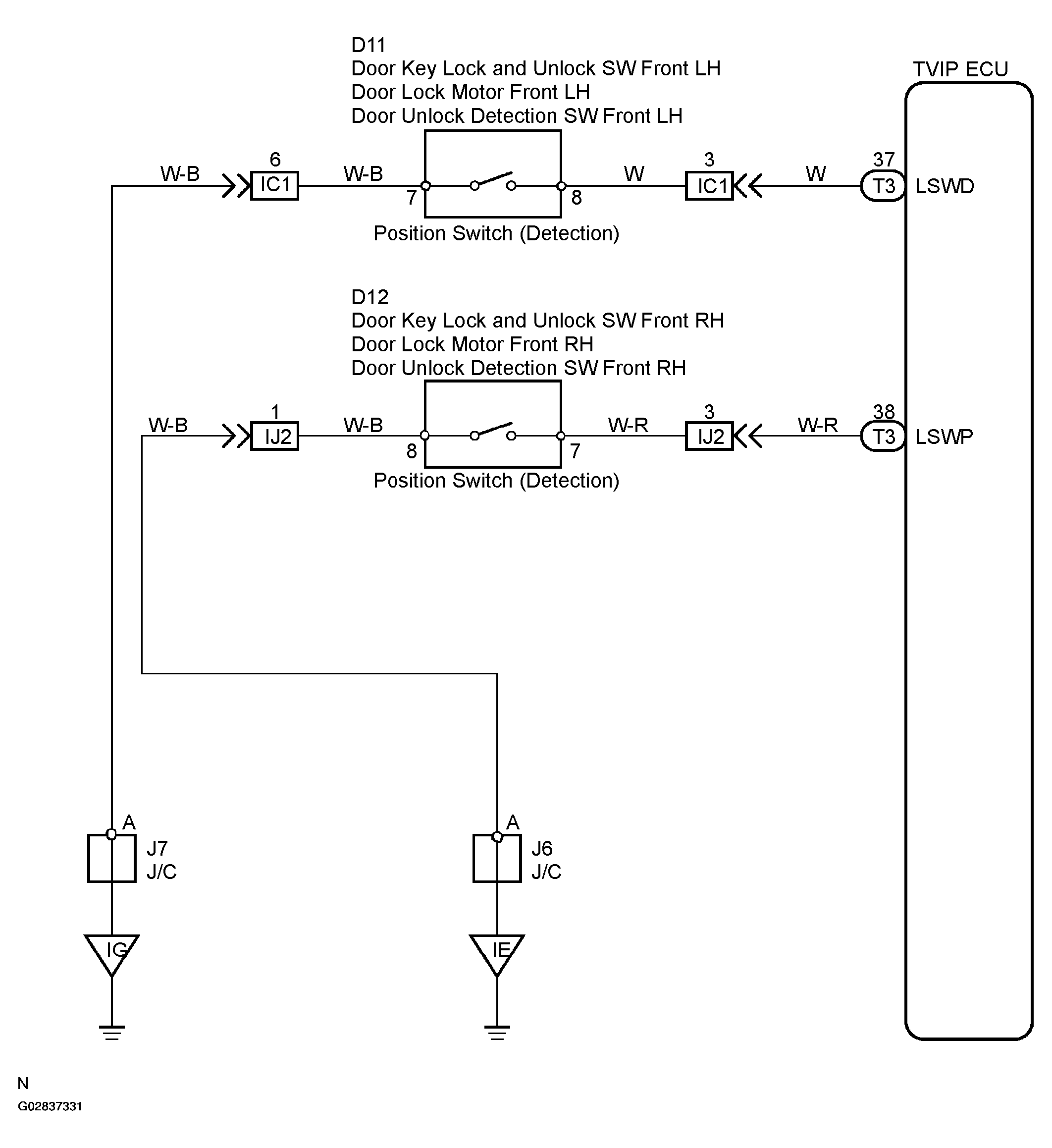

Fig 1: Wiring diagram - Door Unlock Detection Switch Circuit

G02837331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
