Door Key Lock And Unlock Switch Circuit: Wiring Diagram

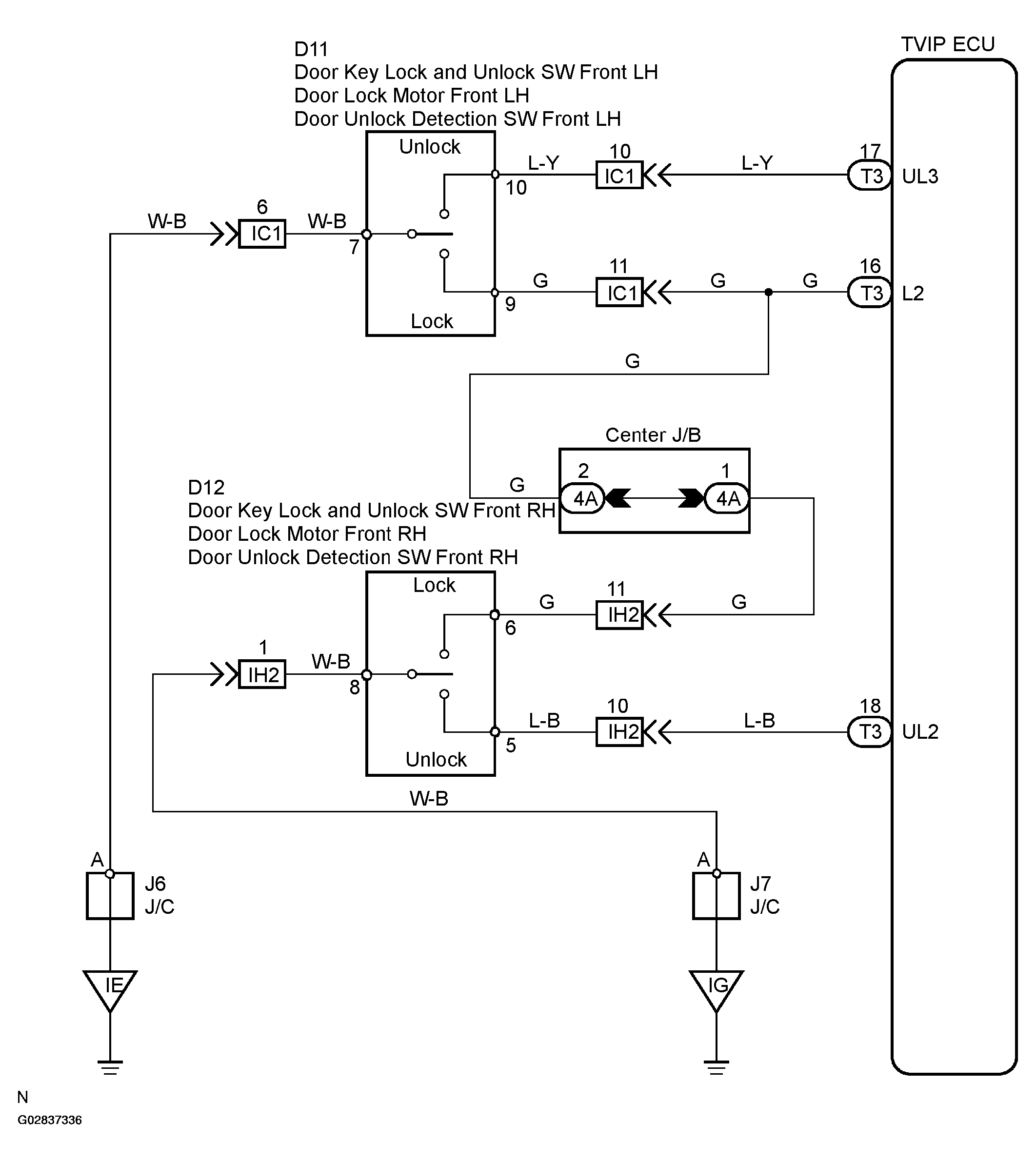

Fig 1: Wiring Diagram - Door Key Lock & Unlock Switch Circuit

G02837336

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
