Front Suspension System: Repair
NOTE:
This is a flow chart for vehicle pull.

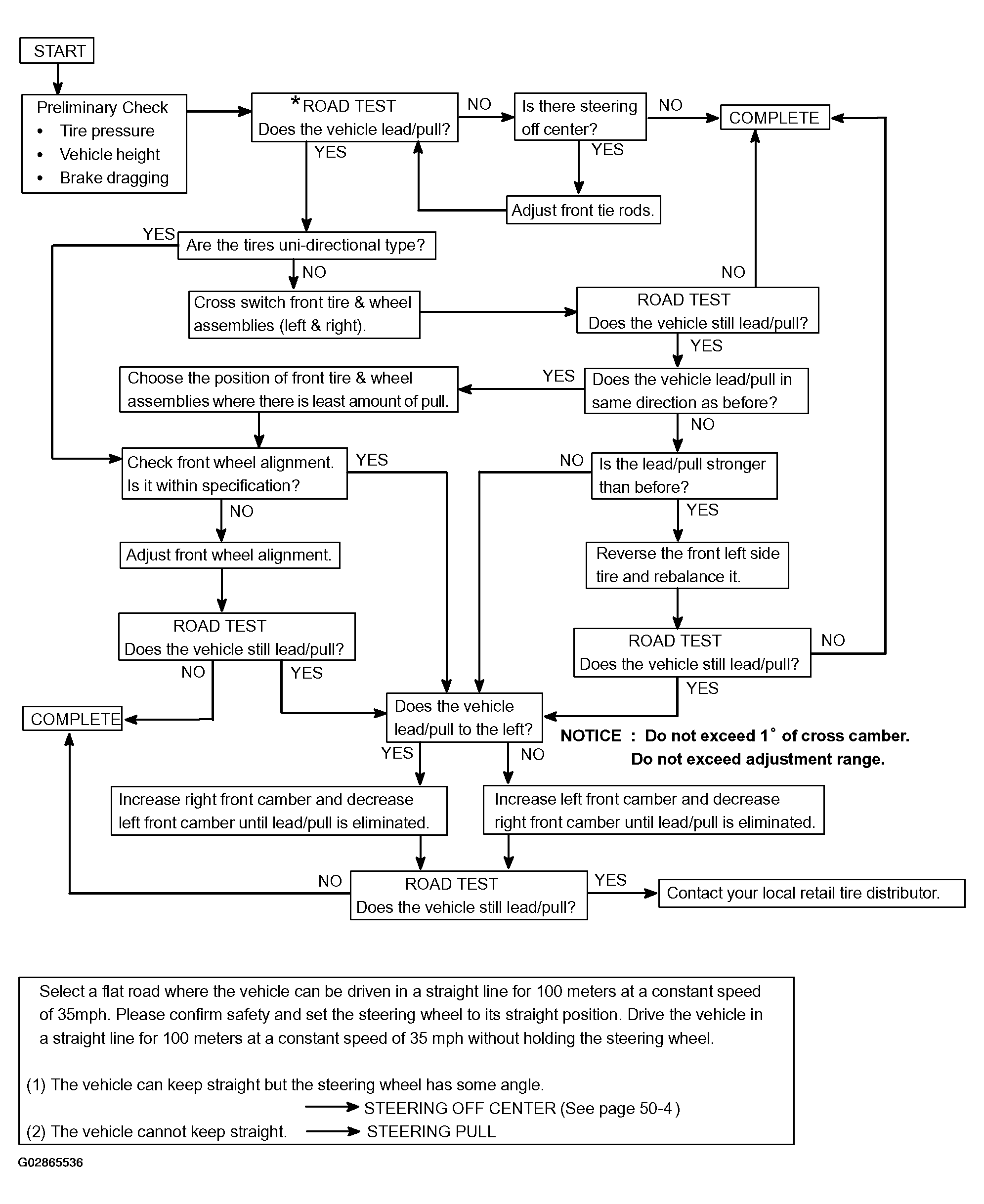

Fig 1: Front Suspension System Vehicle Pull Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
