Section 7 (Emission Control System - 2ZZ-GE): Inspection

WARNING: This page is about a different variant/trim than selected.

CHARCOAL CANISTER ASSY

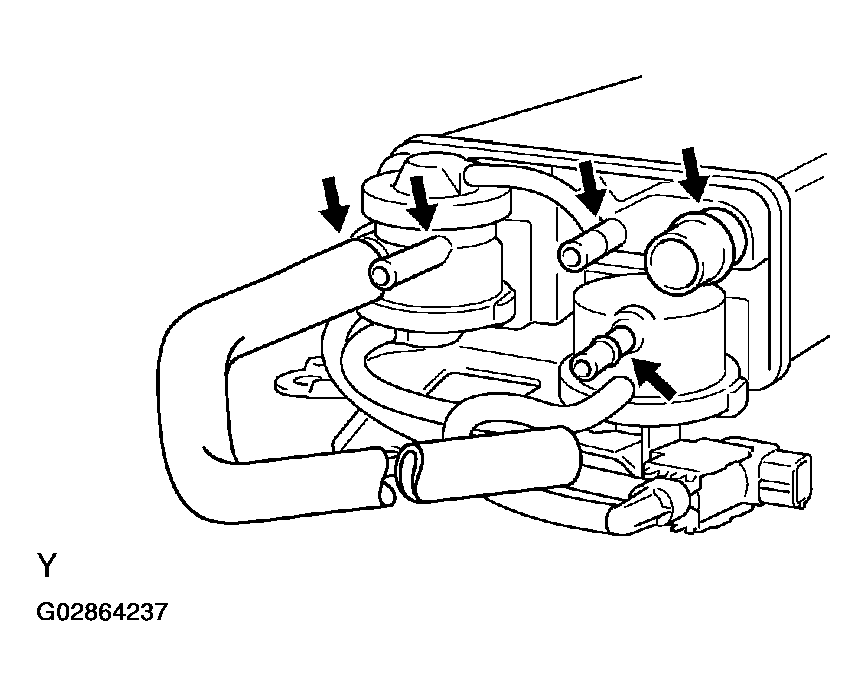

Fig 1: Checking Charcoal Canister
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Visually check the charcoal canister for cracks or damage.
2. Inspect the charcoal canister operation.

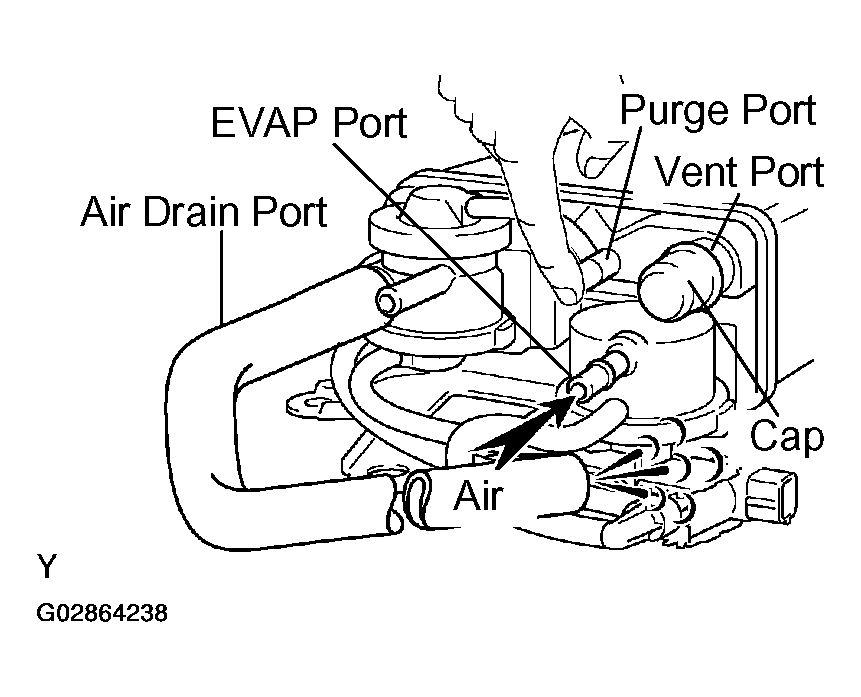

  Fig 2: Inspecting Charcoal Canister Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Plug the vent port with the cap.
  2. While holding the purge port closed, blow air (1.76 kPa, 18 gf/cm² , 0.26 psi) into the EVAP port and check that air flows from the air drain port.
  3. While holding the purge port and the air drain port closed, blow air (1.76 kPa, 18 gf/cm² , 0.26 psi) into the EVAP port and check that air does not flow from the air inlet port.

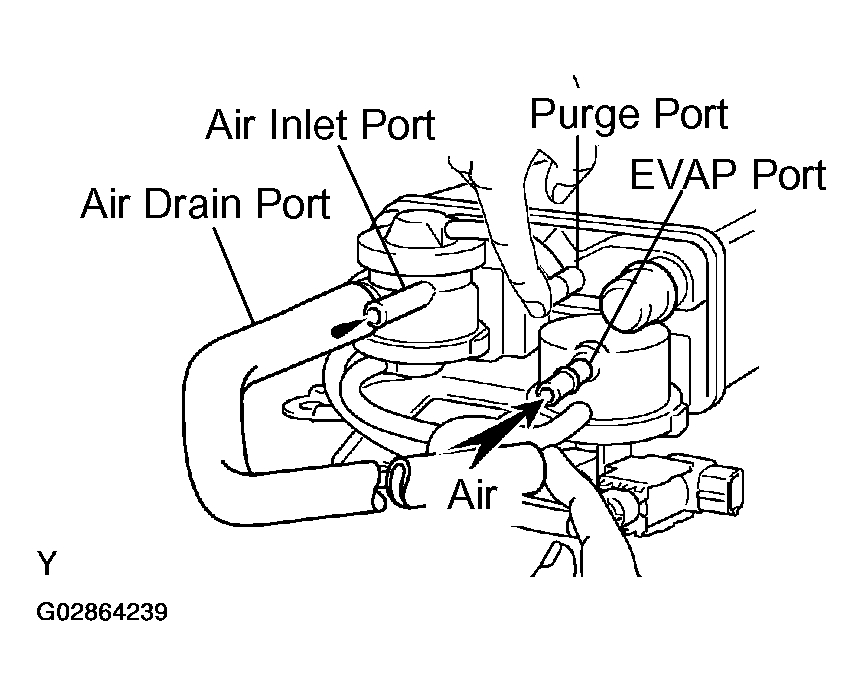

    Fig 3: Checking Flow From Air Inlet Port
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Apply vacuum (3.43 kPa, 25.7 mmHg, 1.01 in.Hg) to the purge port, check that the vacuum dose not decrease when the air inlet port is closed, and check that the vacuum decreases when the air inlet port is released.

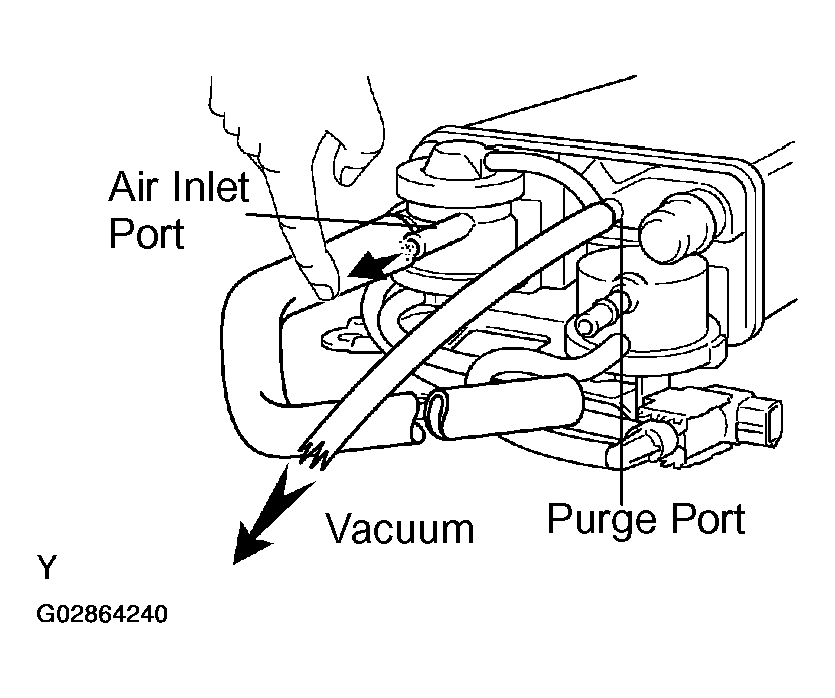

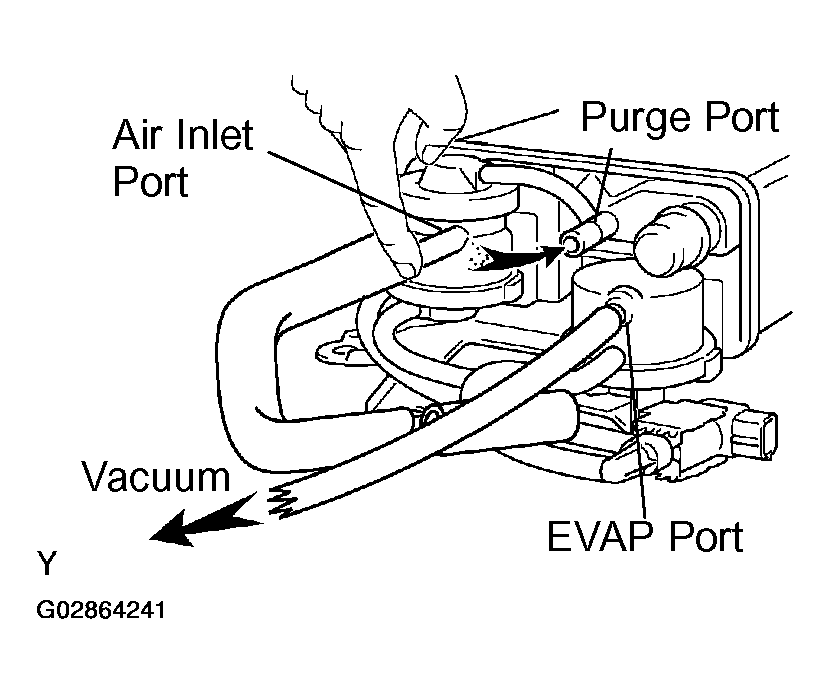

    Fig 4: Applying Vacuum To Purge Port
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. While holding the air inlet port closed, apply vacuum (3.43 kPa, 25.7 mmHg, 1.01 in.Hg) to the EVAP port and check that air flows into the purge port.
    If operation is not as specified, replace the charcoal canister.
  6. Remove the hose and cap from vent port.
3. Inspect VSV for Pressure Switching Valve

  Fig 6: Inspecting VSV Pressure Switching Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Using an ohmmeter, check that there is continuity between the terminals.
    Resistance: 37 - 44 Ω at 20°C (68°F)

    If there is no continuity, replace the VSV.
  2. Using an ohmmeter, check that there is no continuity between each terminal and the body.
    If there is continuity, replace the VSV.

    Fig 7: Checking Continuity Between Each Terminal & Body
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Check that air does not flow from ports E to F.

    Fig 8: Checking Air Flow From Ports E To F
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Apply battery positive voltage across the terminals.
  5. Check that air flows from ports E to F.
  If operation is not as specified, replace the VSV.
VENTILATION VALVE SUB-ASSY

Fig 10: Testing PCV Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install clean hose to the PCV valve.
2. Inspect the PCV valve operation.
  1. Blow air into the cylinder head side, and check that air passes through easily.
    CAUTION: Do not suck air through the valve. Petroleum substances inside the valve air harmful.
  2. Blow air into the intake manifold side, and check that air passes through with difficulty.
  If operation is not as specified, replace the PCV valve.
3. Remove clean hose from the PCV valve.
FUEL TANK CAP ASSY
1. Visually check if cap and/or gasket are deformed or damaged.

  Fig 12: Checking Fuel TankCap & Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If necessary, repair or replace the cap.
VACUUM SWITCHING VALVE NO.1

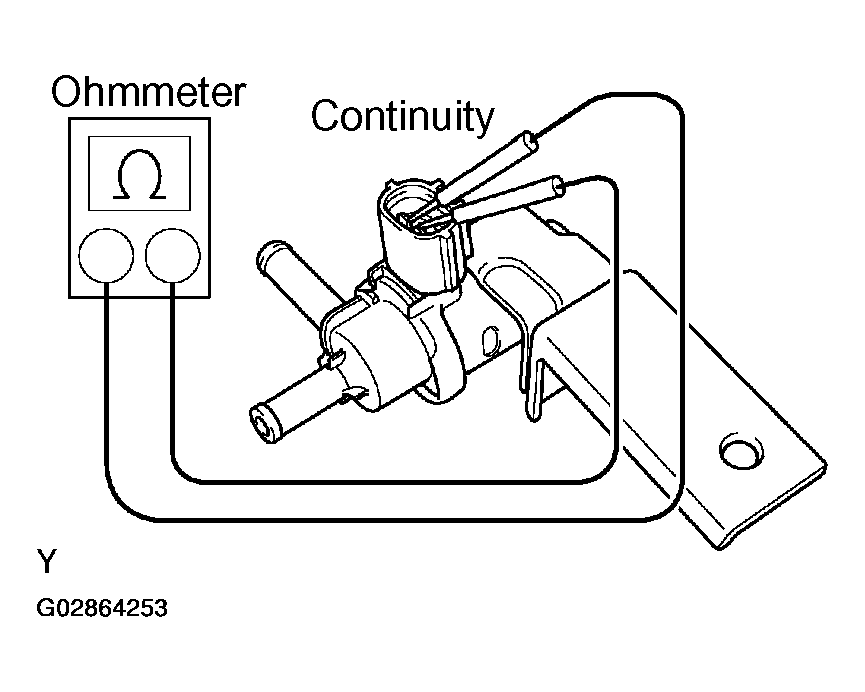

Fig 13: Checking Continuity Between Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Inspect VSV for evaporative emission (EVAP).
  1. Using an ohmmeter, check that there is continuity between the terminals.
    Resistance: 27 - 33 Ω at 20°C (68°F)

    If there is no continuity, replace the VSV.
  2. Using an ohmmeter, check that there is no continuity between each terminal and the body.
    If there is continuity, replace the VSV.

    Fig 14: Checking Continuity Between Each Terminal & Body
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Check that air flows from ports E to F.

    Fig 15: Checking For Air Flow From Ports E To F
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Apply battery positive voltage across the terminals.
  5. Check that air does not flow from ports E to F.
  If operation is not as specified, replace the VSV.
VACUUM SWITCHING VALVE ASSY NO. 1

Fig 17: Checking Continuity Between Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Inspect VSV for Canister Closed valve (CCV).
  1. Using an ohmmeter, check that there is continuity between the terminals.
    Resistance: 25 - 30 Ω at 20°C (68°F)

    If there is no continuity, replace the VSV.
  2. Using an ohmmeter, check that there is no continuity between each terminal and the body.
    If there is continuity, replace the VSV.

    Fig 18: Checking Continuity Between Each Terminal & Body
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Check that air flows from ports A to B.

    Fig 19: Checking Air Flows From Ports A To B
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Apply battery positive voltage across the terminals.
  5. Check that air does not flow from ports A to B.
  If operation is not as specified, replace the VSV.
