Back Door: Components

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

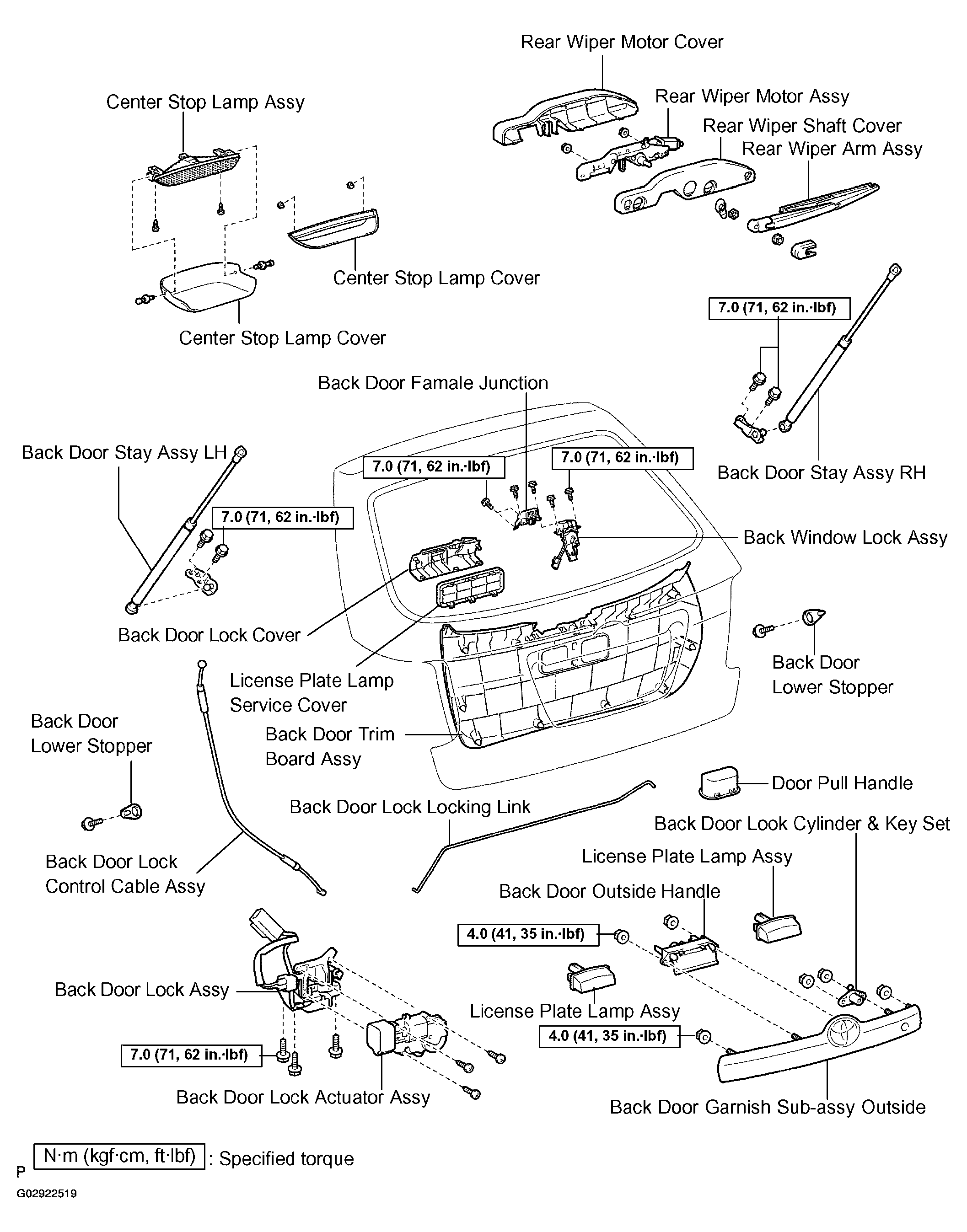

Fig 1: Identifying Components Of Back Door
G02922519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
