Heater Unit: Disassembly

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove heater radiator.
    1. Remove the 5 screws and 3 clamps.

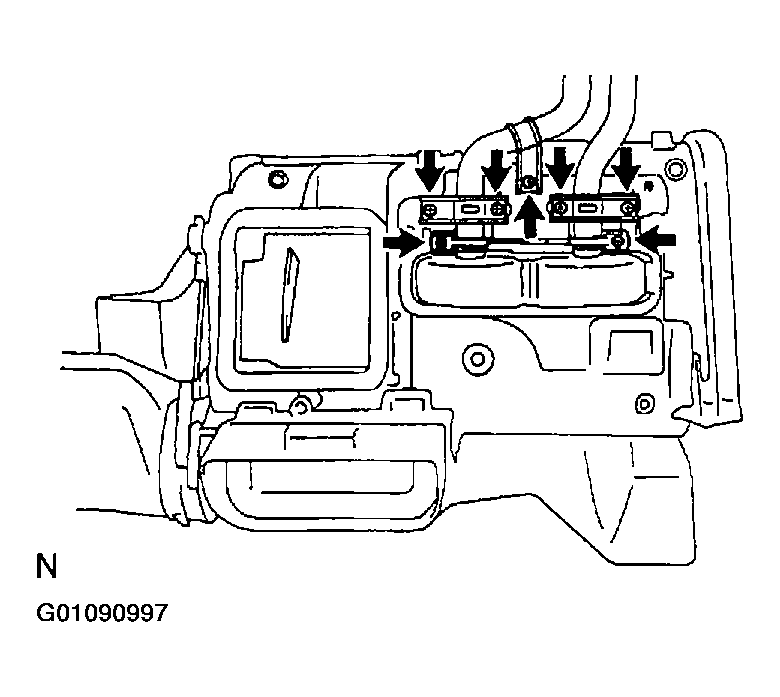

      Fig 1: Locating Screws For Removal Of Radiator
      G01090997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the heater radiator.
    3. Remove the 2 screws and 2 clips, then disconnect the heater radiator pipes.
  2. Remove air vent duct.
    1. Remove the 2 screws and duct.
