Section 390 (Roof Headlining): Removal

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

w/ Rear No 2 seat: REMOVE REAR NO. 2 SEAT
REMOVE FRONT DOOR SCUFF PLATE
1. Remove the 4 screws and front door scuff plate.
2. Use the same manner described above to the other side.

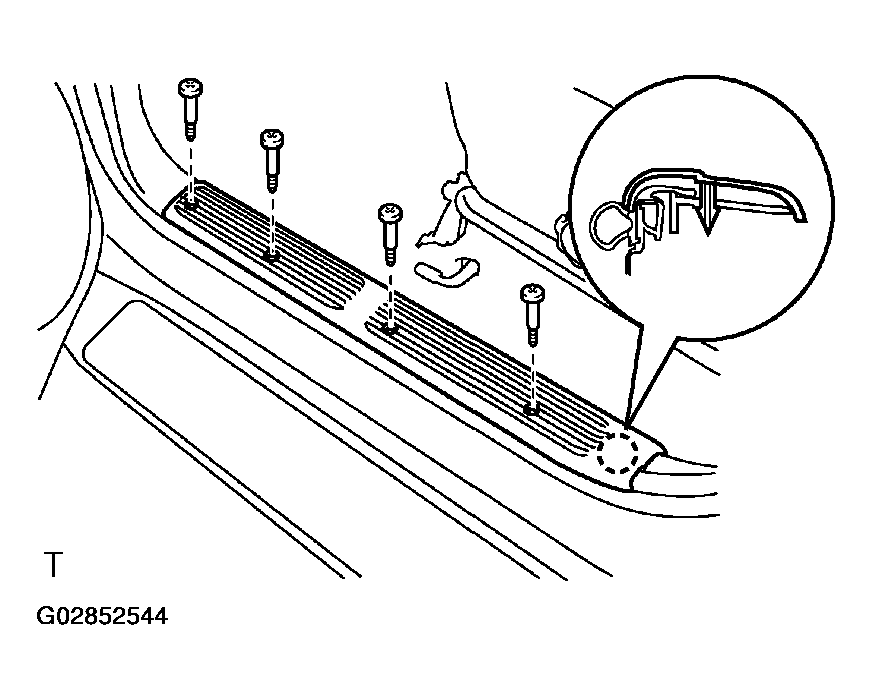

  Fig 1: Removing Front Door Scuff Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COWL SIDE TRIM BOARD

Fig 2: Removing Cowl Side Trim Board
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the nut and cowl side trim board.
2. Use the same manner described above to the other side.
REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP
REMOVE FRONT PILLAR GARNISH
1. Remove the assist grip.
  1. Using a screwdriver, remove the 2 assist grip plugs.
    NOTE: Tape the screwdriver tip before use.
  2. Remove the 2 screws and assist grip.
2. Remove the front pillar garnish.

  Fig 3: Removing Front Pillar Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Use the same manner described above to the other side.
REMOVE REAR DOOR SCUFF PLATE

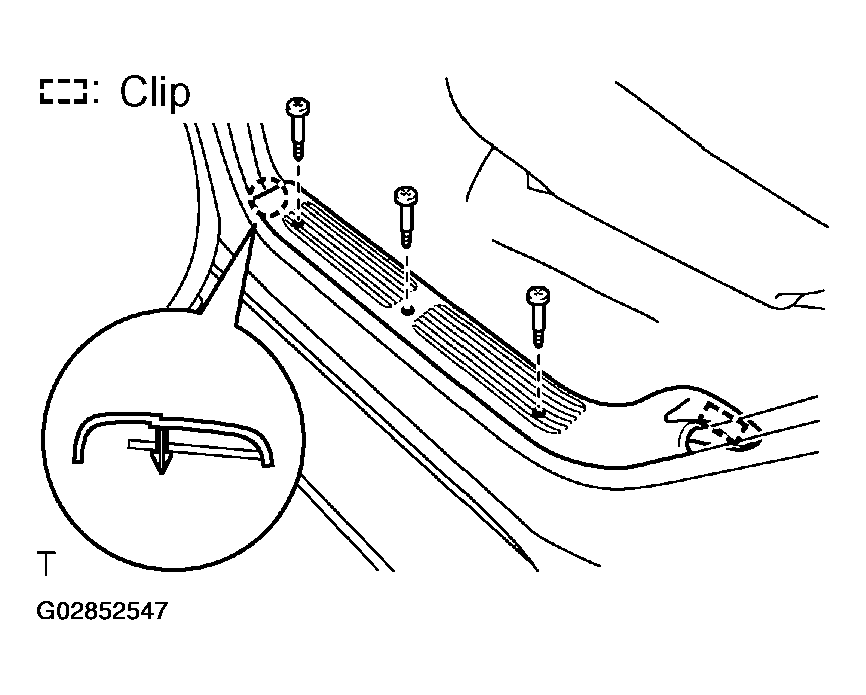

Fig 4: Removing Rear Door Scuff Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 3 screws.
2. Using a screwdriver, remove the rear door scuff plate.
  NOTE: Tape the screwdriver tip before use.
3. Use the same manner described above to the other side.
REMOVE REAR DOOR OPENING TRIM WEATHER-STRIPS
REMOVE LOWER CENTER PILLAR GARNISH

Fig 5: Removing Lower Center Pillar Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the front seat outer belt floor anchor.
  Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)
2. Using a screwdriver, remove the lower center pillar garnish.
  NOTE: Tape the screwdriver tip before use.
3. Use the same manner described above to the other side.
REMOVE FRONT SEAT OUTER BELT SHOULDER ANCHOR

Fig 6: Removing Front Seat Outer Belt Shoulder Anchor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a screwdriver, remove the anchor cap.
  NOTE: Tape the screwdriver tip before use.
2. Remove the front seat outer belt shoulder anchor.
  Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)
w/ Curtain shield airbag assembly: REMOVE ASSIST GRIP

Fig 7: Removing Assist Grip (W/ Curtain Shield Airbag Assembly)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a screwdriver, remove the cap.
  NOTE: Tape the screwdriver tip before use.
2. Remove the screw.
3. Using a screwdriver, remove the No. 2 assist grip plug.
  NOTE: Tape the screwdriver tip before use.
4. Remove the 2 screws and assist grip.
5. Use the same manner described above to the other side.
W/O Curtain Shield Airbag Assembly: REMOVE ASSIST GRIP

Fig 8: Removing Assist Grip (W/O Curtain Shield Airbag Assembly)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a screwdriver, remove the No. 2 assist grip piug. Tape the screwdriver tip before use.
2. Remove the 2 screws and assist grip.
3. Use the same manner described above to the other side.
REMOVE CENTER PILLAR GARNISH

Fig 9: Removing Center Pillar Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the clip.
2. Remove the center pillar garnish.
3. Use the same manner described above to the other side.
REMOVE DOME LIGHT

Fig 10: Removing Dome Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a screwdriver, remove the lens.
  NOTE: Tape the screwdriver tip before use.
2. Remove the 2 screws and dome light, then disconnect the connector.
REMOVE REAR TRIM COVER

Fig 11: Removing Rear Trim Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, remove the rear trim cover.

NOTE: Tape the screwdriver tip before use.
REMOVE REAR TRIM

Fig 12: Removing Rear Trim
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, remove the rear trim.

NOTE: Tape the screwdriver tip before use.
REMOVE REAR FLOOR MAT SUPPORT PLATE
W/O Rear No. 2 Seat: REMOVE QUARTER TRIM HOLE COVER

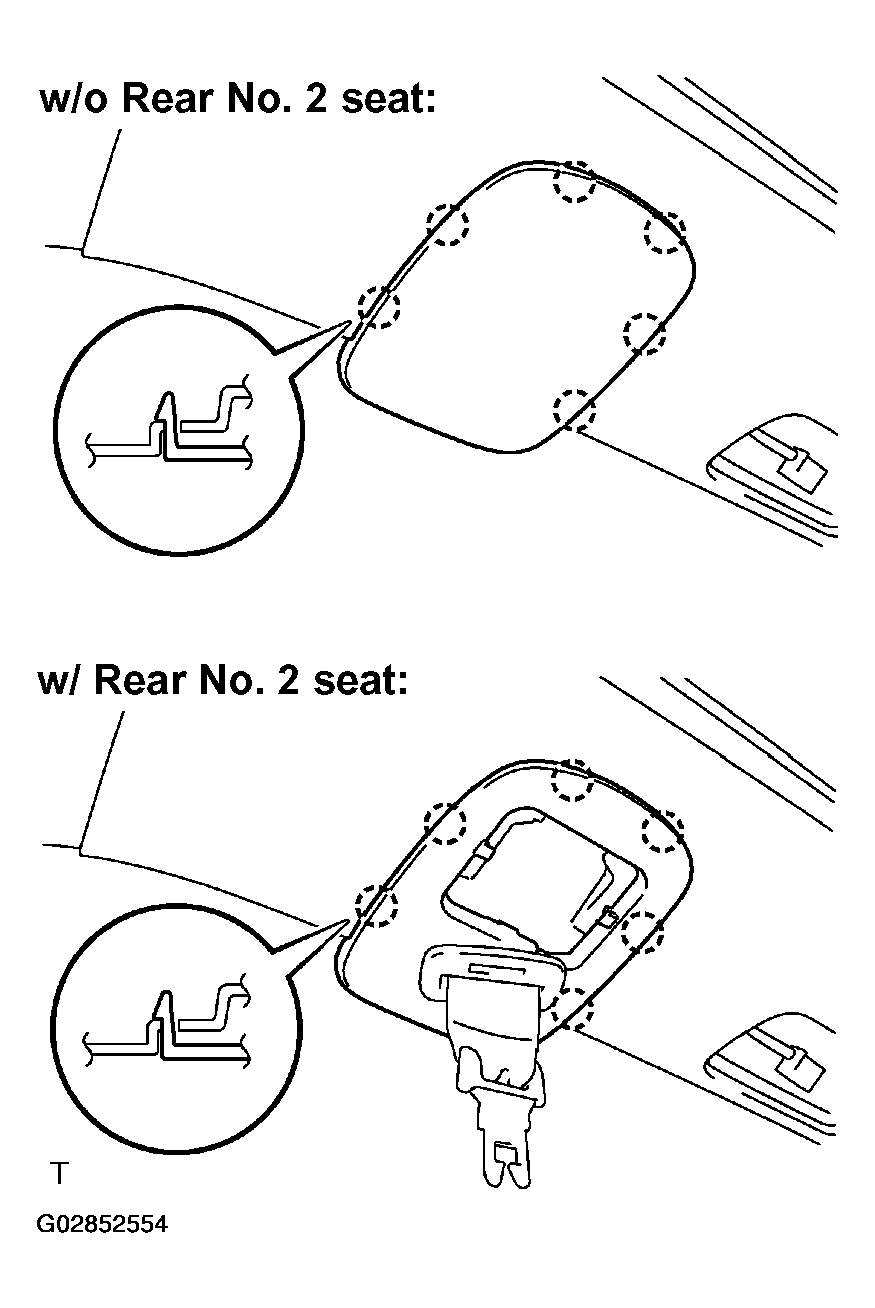

Fig 13: Removing Quarter Trim Hole Cover (W/O Rear No. 2 Seat)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a screwdriver, remove the quarter trim hole cover.
  NOTE: Tape the screwdriver tip before use.
2. Use the same manner described above to the other side.
W/ Rear No. 2 Seat: REMOVE QUARTER TRIM UPPER BELT HOLE COVER

Fig 14: Removing Quarter Trim Upper Belt Hole Cover (W/ Rear No. 2 Seat)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a screwdriver, remove the quarter trim upper belt hole cover.
  NOTE: Tape the screwdriver tip before use.
2. Use the same manner described above to the other side.
REMOVE QUARTER TRIM PANEL LH
1. w/o Rear A/C:
  Using a screwdriver, remove the deck side trim cover.

  NOTE: Tape the screwdriver tip before use.
2. w/o Tonneau cover:
  Using a screwdriver, remove the 2 No. 1 tonneau cover holder caps.

  NOTE: Tape the screwdriver tip before use.
3. Remove the 2 package holder net hooks.

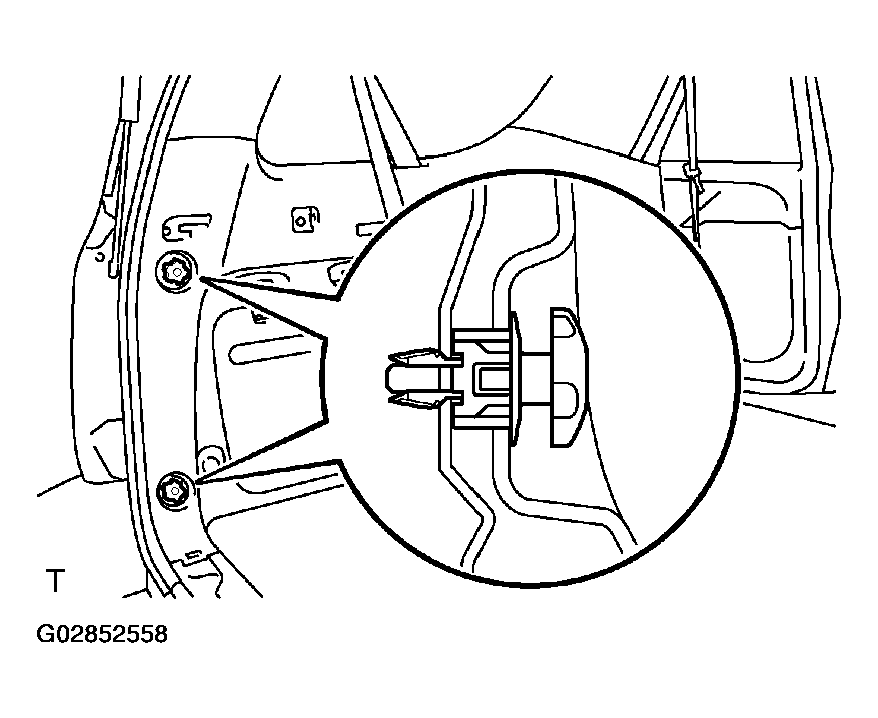

  Fig 15: Identifying Quarter Trim Panel LH Package Holder Net Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the rear No. 1 seat outer belt floor anchor.
  Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

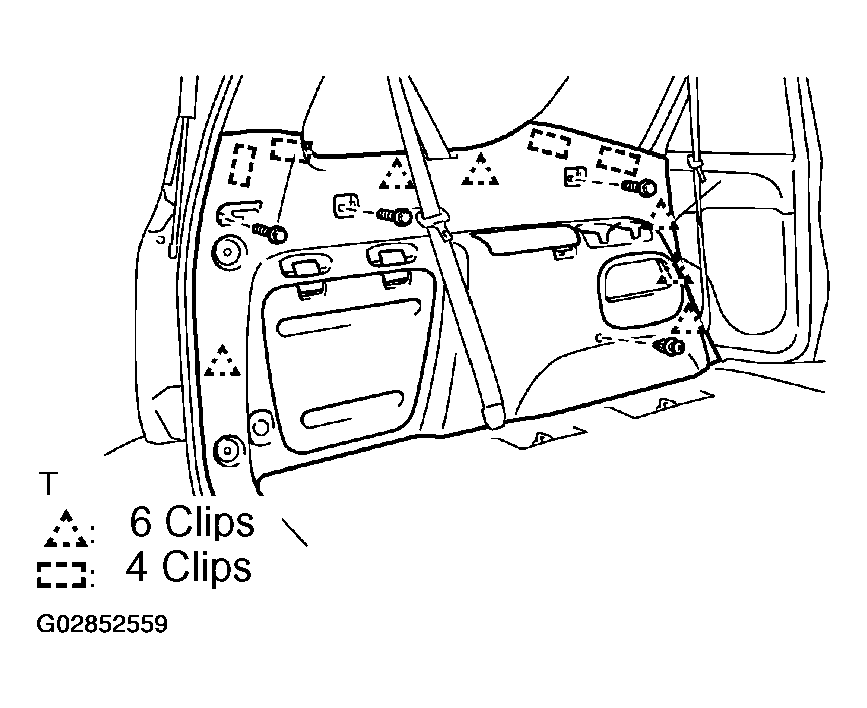

5. Remove the 3 bolts, clip and quarter trim panel LH, then disconnect the connector.
REMOVE QUARTER TRIM PANEL RH

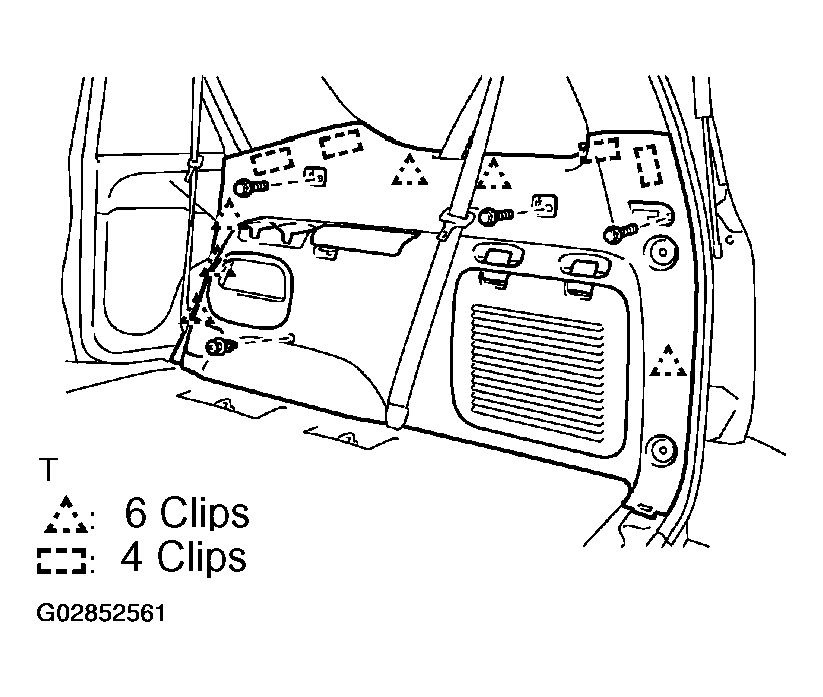

Fig 16: Removing Quarter Trim Panel RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. w/o Tonneau cover:
  Using a screwdriver, remove the 2 No. 1 tonneau cover holder caps.

  NOTE: Tape the screwdriver tip before use.
2. Remove the 2 package holder net hooks.

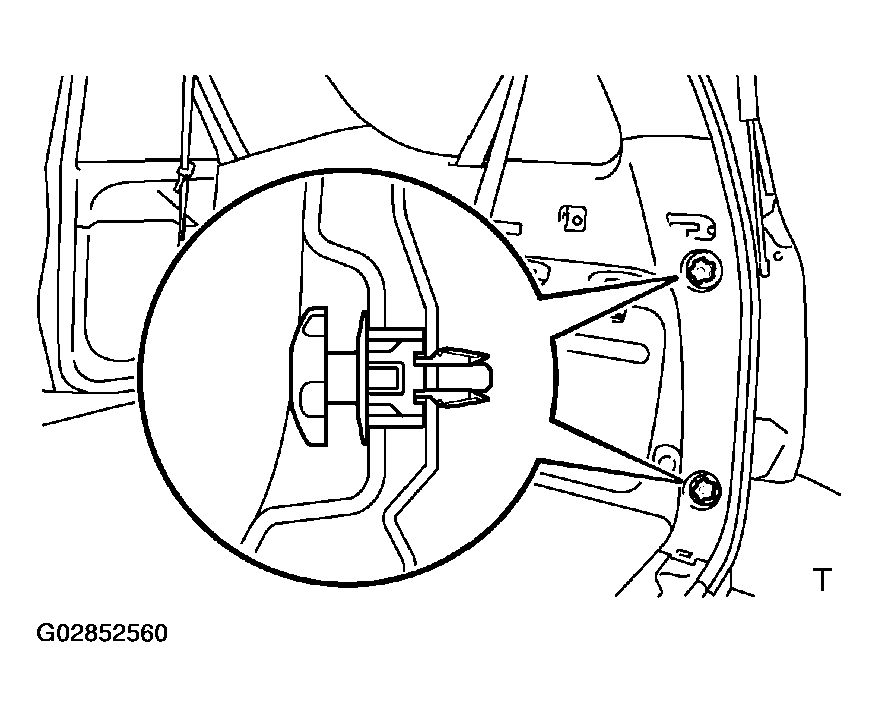

  Fig 17: Identifying Quarter Trim Panel RH Package Holder Net Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the rear No. 1 seat outer belt floor anchor.
  Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)
4. Remove the 3 bolts, clip and quarter trim panel RH.
W/ Rear No. 2 Seat: REMOVE REAR NO. 2 SEAT OUTER BELT SHOULDER ANCHORS

Fig 18: Removing Rear No. 2 Seat Outer Belt Shoulder Anchors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)
REMOVE NO. 2 REAR WINDOW SIDE GARNISH

Fig 19: Removing No. 2 Rear Window Side Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 3 clips and No. 2 rear window side garnish.
2. Use the same manner described above to the other side.
REMOVE REAR NO. 1 SEAT OUTER BELT SHOULDER ANCHOR
1. Using a screwdriver, remove the anchor cap.
  NOTE: Tape the screwdriver tip before use.
2. Remove the rear No. 1 seat outer belt shoulder anchor.
  Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)
3. Use the same manner described above to the other side.
REMOVE REAR WINDOW SIDE GARNISH

Fig 20: Removing Rear Window Side Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the rear window side garnish.
2. Use the same manner described above to the other side.
W/ Sliding Roof: REMOVE MAP LIGHT

Fig 21: Removing Map Light (W/ Sliding Roof)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a screwdriver, remove the lens.
  NOTE: Tape the screwdriver tip before use.
2. Remove the 2 screws and map light, then disconnect the connector.
W/ Rear Seat Entertainment: REMOVE INFORMATION DISPLAY

Fig 22: Removing Information Display (W/ Rear Seat Entertainment)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 lenses.
2. Remove the 2 screws and display panel, then disconnect the connector.
3. Remove the 4 dolts and multi information display, then disconnect the connector.
W/ Electro Chromic Inner Rear View Mirror: REMOVE MIRROR COVER
W/ Sliding Roof: REMOVE ROOF CONSOLE BOX

Fig 23: Removing Roof Console Box (W/ Sliding Roof)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws.
2. Using a screwdriver, remove the roof console box.
  NOTE: Tape the screwdriver tip before use.
3. Disconnect the connector.
w/o Sliding roof: REMOVE ROOF CONSOLE BOX

Fig 24: Removing Roof Console Box (W/O Sliding Roof)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 4 screws.
2. Using a screwdriver, remove the roof console box.
  NOTE: Tape the screwdriver tip before use.
3. Disconnect the connectors.
REMOVE ASSIST GRIPS
W/Sliding Roof: REMOVE SLIDING ROOF OPENING TRIM
REMOVE SUN VISORS AND HOLDERS
REMOVE ROOF HEADLINING

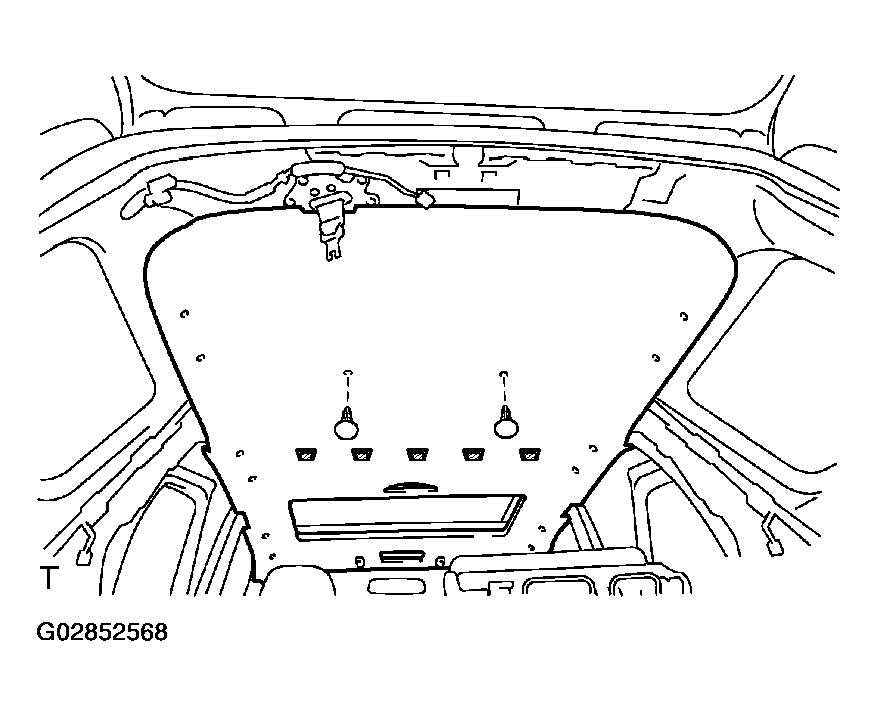

Fig 25: Removing Roof Headlining
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a clip remover, remove the 2 clips.
2. Remove the roof headlining.
W/ Rear A/C: REMOVE REAR AIR DUCTS
W/ Rear A/C: REMOVE FRONT SIDE RAIL SPACERS
W/O Rear A/C: REMOVE REAR NO. 2 SIDE RAIL SPACERS
W/O Curtain Shield Airbag Assembly: REMOVE FRONT PILLAR SPACERS
REMOVE FRONT ROOF HEADLINING TRIM RETAINERS
REMOVE REAR ROOF HEADLINING TRIM RETAINERS
REMOVE NO. 1 ROOF HEADLINING TRIM SIDE RETAINERS
