Section 342 (Air Conditioning System): Thermistor: Inspection

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INSTRUMENT PANEL AND REINFORCEMENT (See  INSTRUMENT PANEL  ).
  2. REMOVE THERMISTOR
    1. Disconnect the connector clamp.
    2. Using a screwdriver, remove the thermistor.

      HINT:

      Tape the screwdriver tip before use.

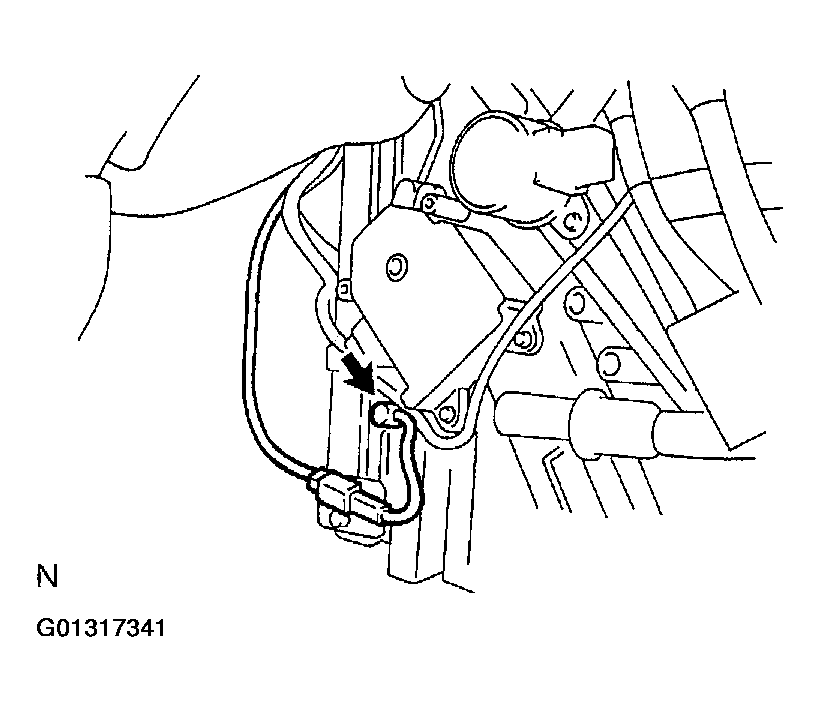

      Fig 1: Removing Thermistor
      G01317341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Release the 2 claws and remove the sensor from bracket plate.
  3. INSPECT THERMISTOR (See  EVAPORATOR TEMPERATURE SENSOR CIRCUIT  ).
  4. INSTALL THERMISTOR
    Fig 2: Removing Sensor From Bracket Plate
    G01317342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
