Rear Cooling Unit: Components

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

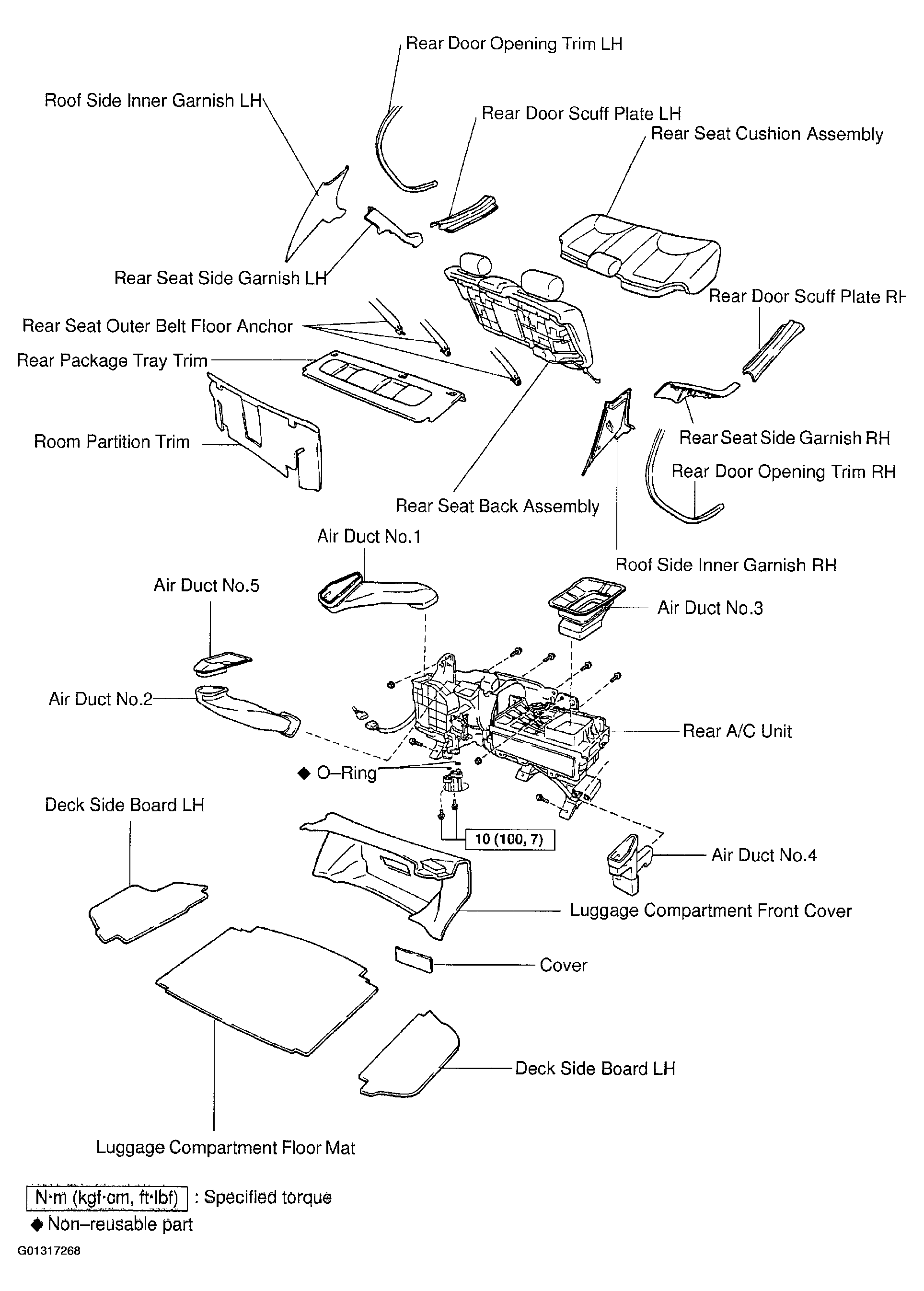

Fig 1: Exploded View Of Rear Cooling Unit Components (1 Of 2)
G01317268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

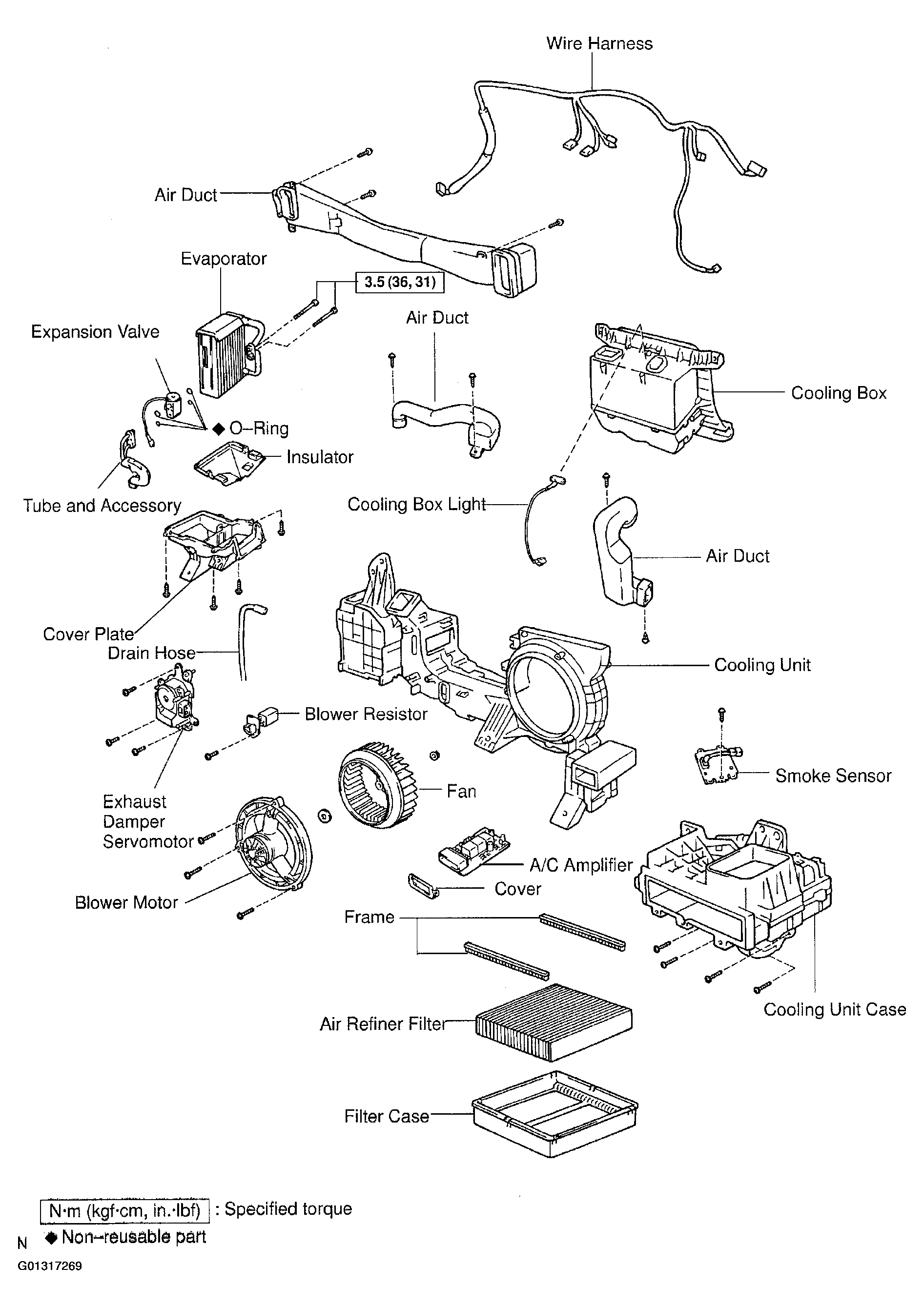

Fig 2: Exploded View Of Rear Cooling Unit Components (2 Of 2)
G01317269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
