Blower Unit: Removal

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FINISH PANEL ASSEMBLY
(See INSTRUMENT PANEL ).
REMOVE AIR SUSPENSION AND HEADLIGHT BEAM LEVEL CONTROL ECU
1. Disconnect the connectors.
2. Remove the 2 nut and ECU assembly.

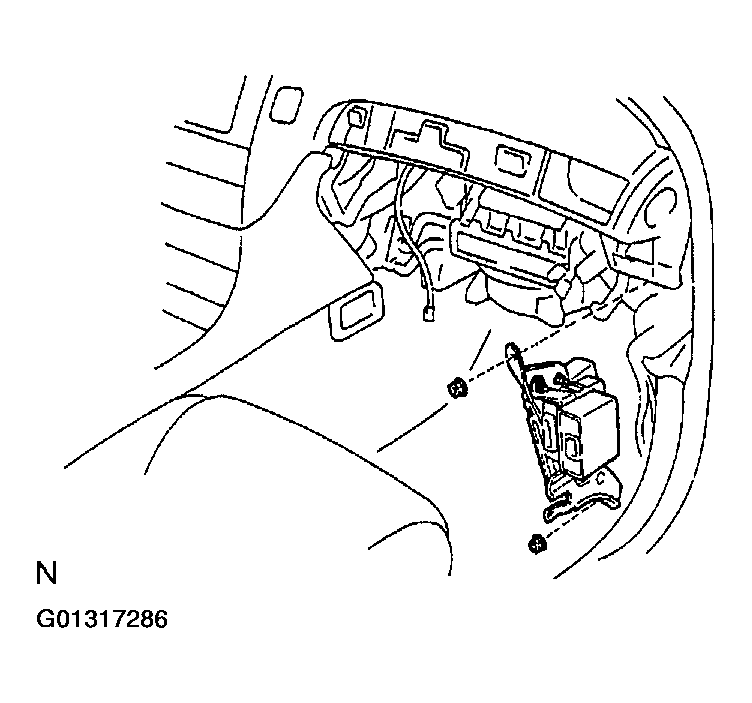

  Fig 1: Removing ECU Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER UNIT
1. Disconnect the connectors.
2. Remove the nut and 3 bolts.
3. Remove the blower unit.

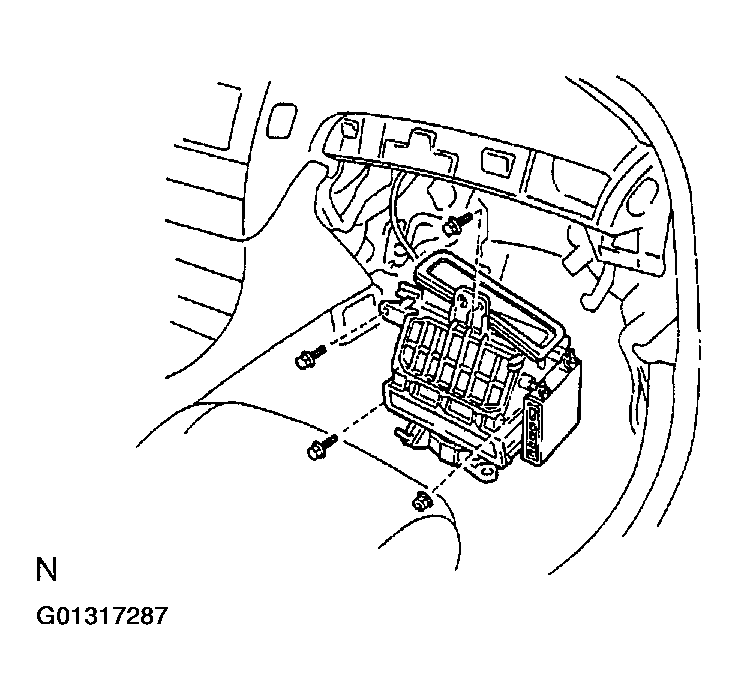

  Fig 2: Removing Blower Unit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
