Combination Meter: Circuit

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

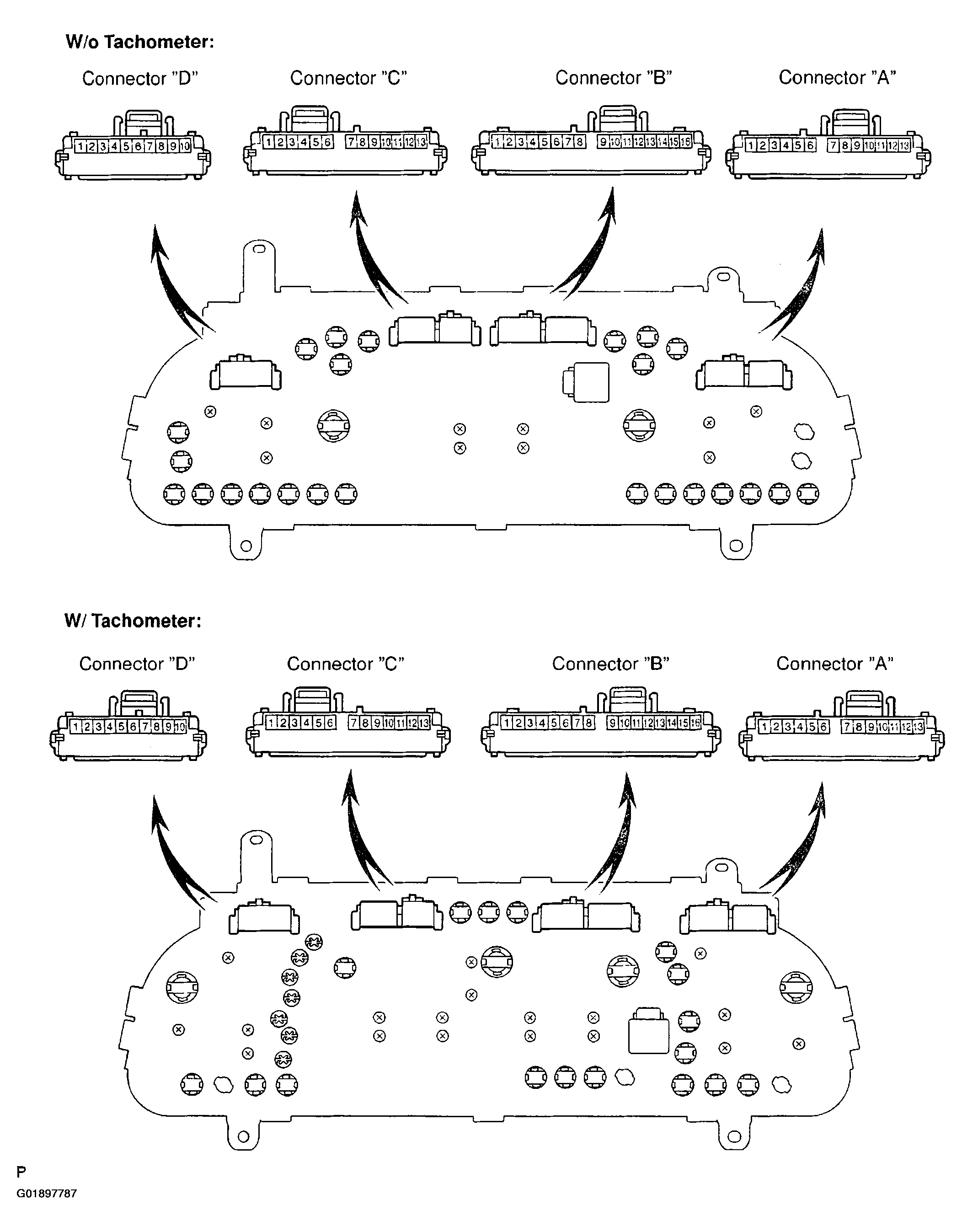

Fig 1: Identifying Combination Meter Connectors
G01897787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

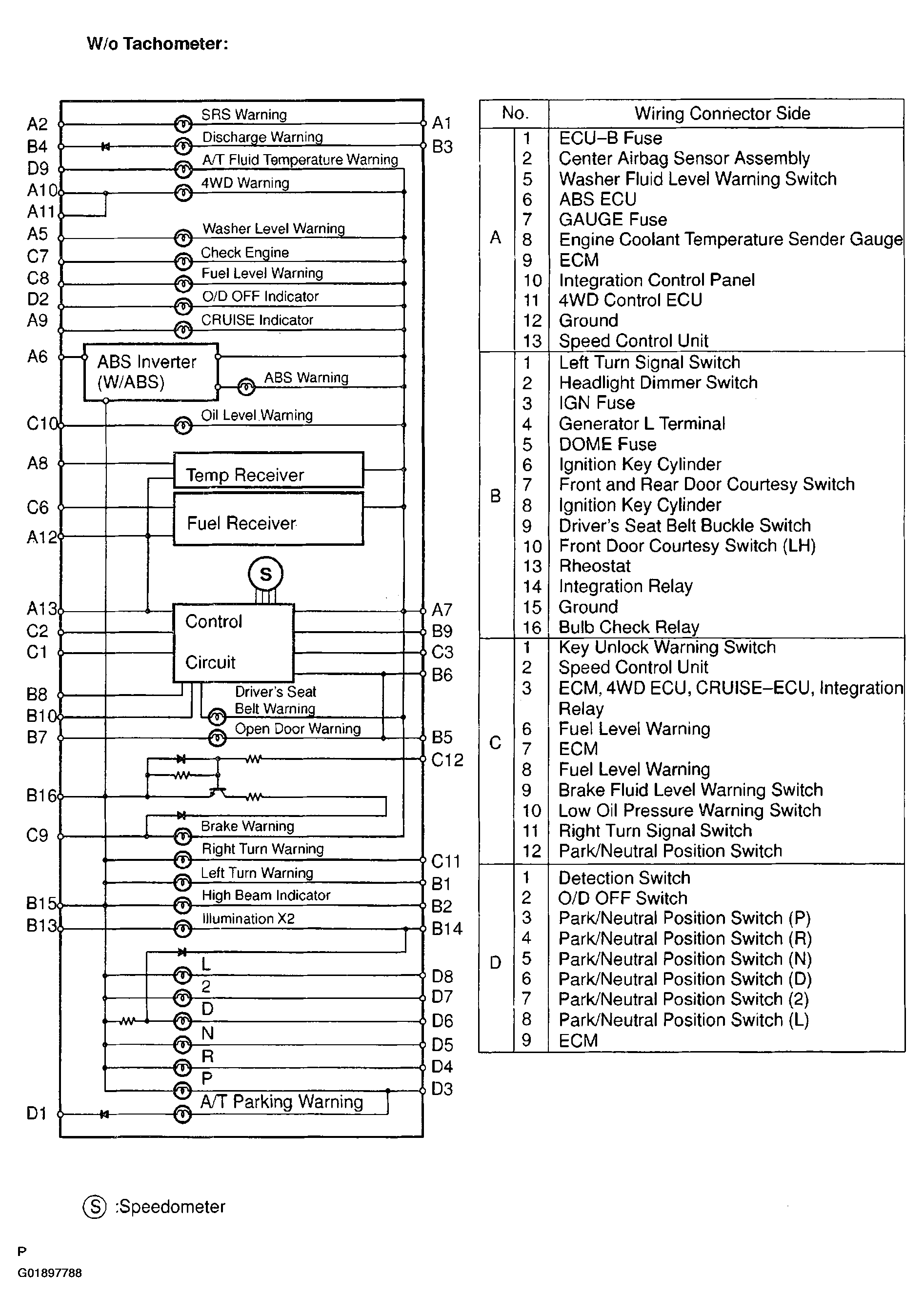

Fig 2: Identifying Combination Meter Circuits (1 Of 2)
G01897788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

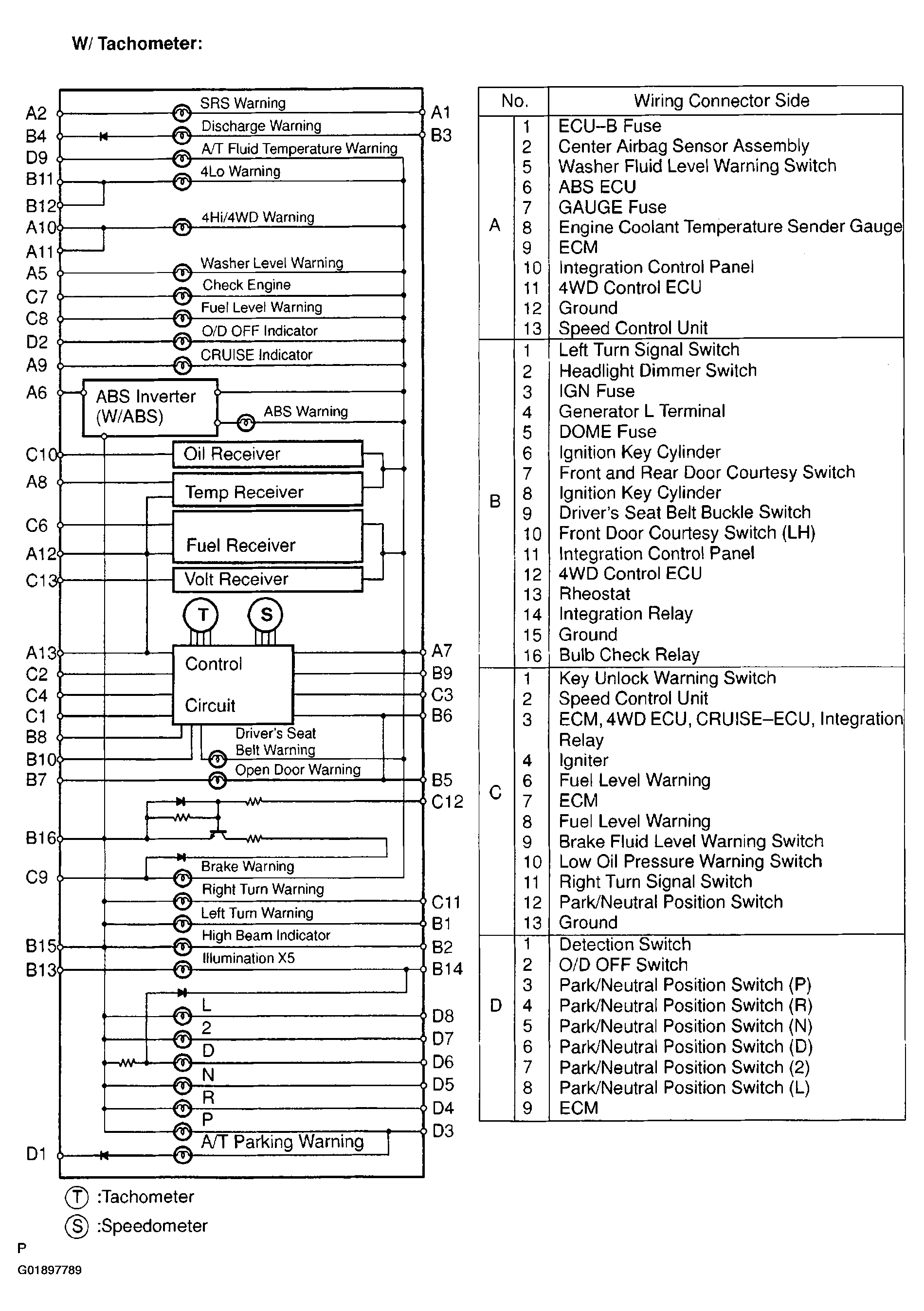

Fig 3: Identifying Combination Meter Circuits (2 Of 2)
G01897789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
